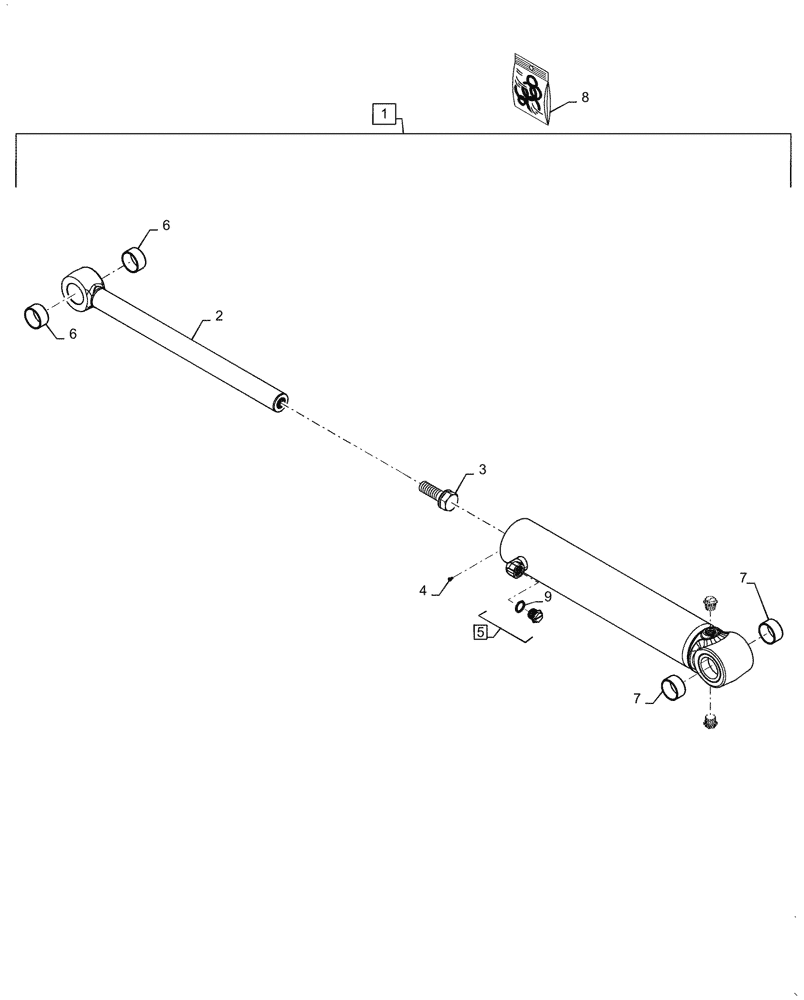

Запчасти Case IH SV340 (35.723.010) - BUCKET HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS

1

47685048

Bucket, Gray

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 398mm Stroke

1шт.

2

84293530

38.1mm OD

PISTON ROD

1шт.

3

86982436

SPECIAL BOLT,SEMS Hex, 7/8" - 14 x 2 - 1/2"

1шт.

4

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

5

86625120

PLUG,Sltd Hd, 3/4"-16, Yellow, Plastic

Incl 9

3шт.

6

47827392

BUSHING,38.26mm ID x 43.03mm OD x 22.20mm L

Rod

2шт.

7

47364472

BUSHING,44.63mm ID x 57.28mm OD x 19mm L

Tube

2шт.

8

47364492

SEAL KIT

Services 1

1шт.

9

NSS

NOT SOLD SEPARAT

Oring, Include With 5

3шт.
