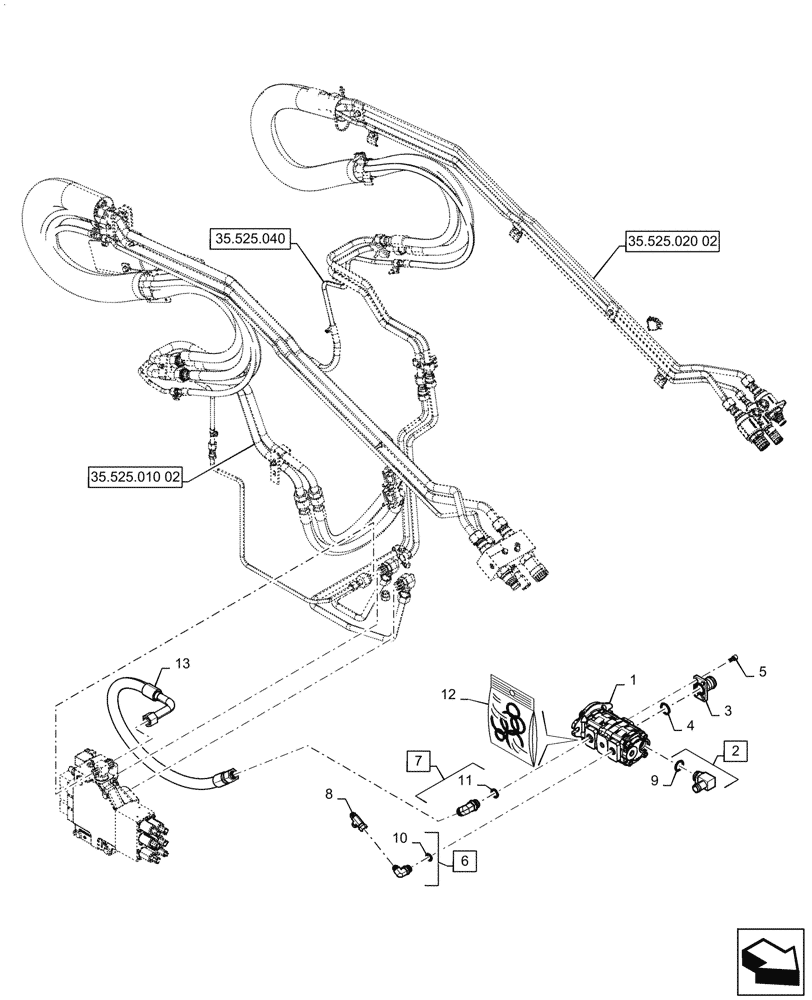

Запчасти Case IH SV340 (35.525.030[02]) - ENHANCED HIGH FLOW AUXILIARY HYDRAULIC, GEAR PUMP (35) - HYDRAULIC SYSTEMS

1

47647514

EHF, Gear

PUMP,HF Gear, 36.5CC/23.3CC

1шт.

2

87393628

ADAPTER,1" Hose Barb x 1-5/16" - 12 ORB

Incl 9

1шт.

3

84269151

FITTING

Gear Pump Suction

1шт.

4

274754

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

1шт.

5

14307321

HEX SOC SCREW,M10 x 1.25 x 20mm, Full Thd, Cl 8.8

4шт.

6

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

Incl 10

1шт.

7

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 11

1шт.

8

86511870

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

9

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

10

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

47875130

EHF Gear Pump, Services 1

SEAL KIT

1шт.

13

47668831

Hydraulic Valve Supply

HOSE,935mm L, SAE 100R19

1шт.
