Запчасти Case IH SV340 (35.525.020) - STANDARD AUXILIARY HYDRAULIC, BOOM PLUMBING (35) - HYDRAULIC SYSTEMS

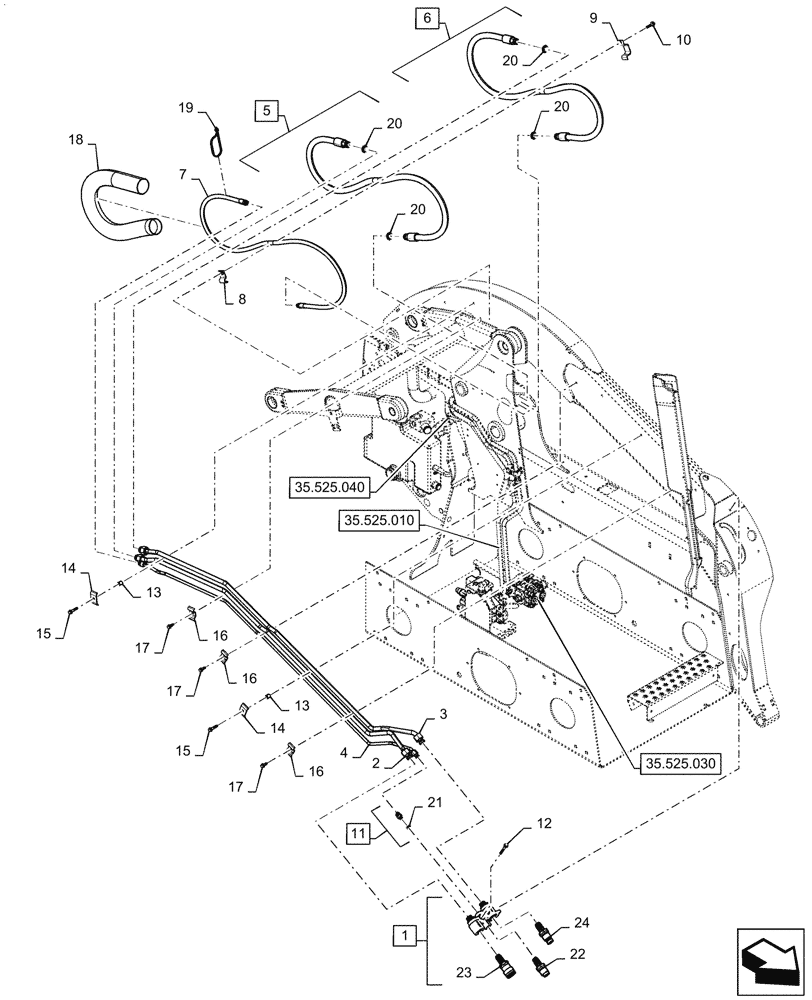

Схема запчастей Case IH SV340 - (35.525.020) - STANDARD AUXILIARY HYDRAULIC, BOOM PLUMBING (35) - HYDRAULIC SYSTEMS
35.525.040
13
7
17
4
14
17
12
15
8
20
10
23
20
18
6
2
14
15
20
20
16
16
22
24
9
3
11
17
1
13
16
21
19
5
35.525.030
35.525.010

Артикул

Название

Примечание

Количество

1

47881694

Connect Under Pressure, Incl 22 - 24

HYDRAULIC MANIFOLD

1шт.

2

47895908

RH, Aux

HYD TUBE

1шт.

3

47895910

LH, Aux

HYD TUBE

1шт.

4

84297619

RIGID TUBE

Case Drain

1шт.

5

47895916

Chassis to Boom Arm, Incl 20

HYDRAULIC HOSE,19mm ID x 1847mm L, SAE 100R16

1шт.

6

47895917

Chassis to Boom Arm, Incl 20

HYDRAULIC HOSE,19mm ID x 1934mm L, SAE 100R16

1шт.

7

84281611

FLEXIBLE HOSE,10mm ID x 2085mm L, SAE 100R17

Case Drain

1шт.

8

47374617

CLAMP,18mm ID, 12.5mm Bolt Hole, J Type

Single

1шт.

9

84282424

HOSE CLAMP

Double

1шт.

10

9804263

BOLT,M10 x 49.2mm, Cl 8.8

1шт.

11

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Incl 21

1шт.

12

84331287

SCREW,HWH, 3/8" - 16 x 3"

2шт.

13

84277083

TUBE SPACER,11.1mm ID x 15.9mm OD x 18.1mm L

2шт.

14

84254045

CLAMP,66mm L

Tube

2шт.

15

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

2шт.

16

84254056

HOSE CLAMP,69.2mm L

Butterfly Tube

3шт.

17

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

3шт.

18

84362110

SLEEVE,73mm ID x 78mm OD x 1070mm L

Hose Guard

1шт.

19

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

20

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

21

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

22

47396762

COUPLING,3/8" Female

1шт.

23

47396761

COUPLING,1/2" Female

1шт.

24

47396760

COUPLING,1/2" Male

1шт.

Выбрано товаров: 24
