Запчасти Case IH SV340 (35.525.010[02]) - ENHANCED HIGH FLOW AUXILIARY HYDRAULIC, CHASSIS PLUMBING (35) - HYDRAULIC SYSTEMS

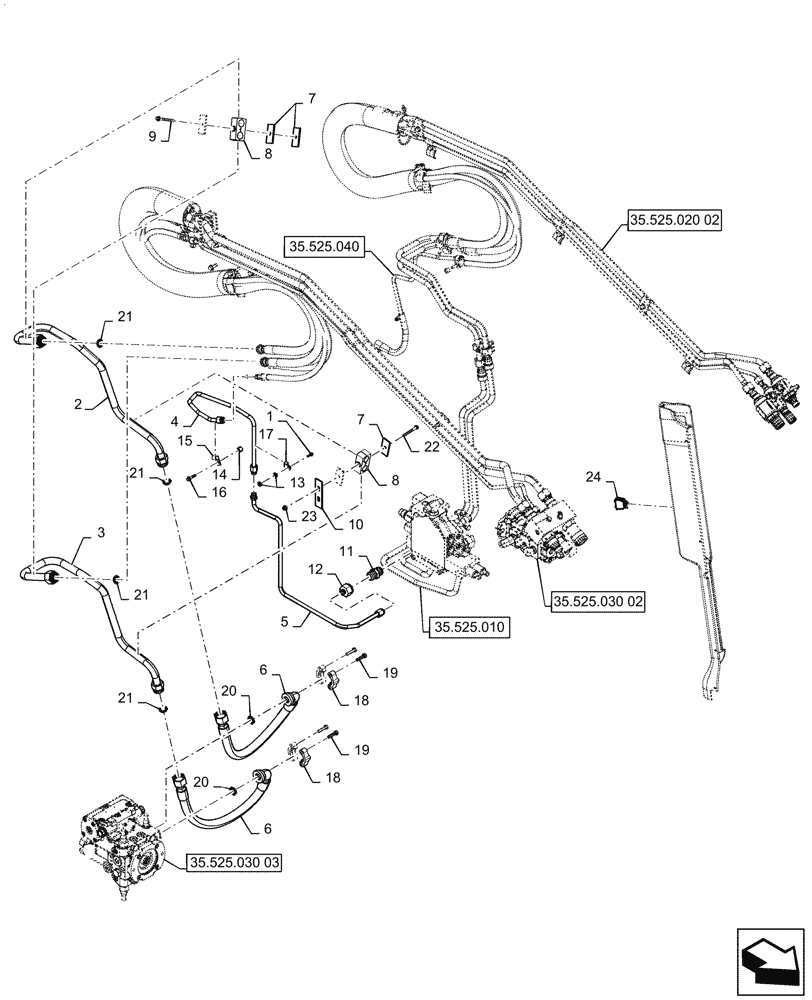

Схема запчастей Case IH SV340 - (35.525.010[02]) - ENHANCED HIGH FLOW AUXILIARY HYDRAULIC, CHASSIS PLUMBING (35) - HYDRAULIC SYSTEMS
35.525.010
7
21
2
18
9
3
12
20
15
23
6
11
24
4
1
20
21
13
18
19
6
22
19
21
17
21
7
5
10
8
8
14
16
35.525.020 02
35.525.030 02
35.525.030 03
35.525.040

Артикул

Название

Примечание

Количество

1

87017606

SELF-TAP SCREW,Hex Flng, M6 x 1 x 20mm

1шт.

2

47773413

EHF Aux, RH Tower

HYD TUBE

1шт.

3

47773415

EHF Aux, RH Tower

HYD TUBE

1шт.

4

84356484

EHF Case Drain Tower

HYD TUBE

1шт.

5

84356598

EHF Case Drain Chassis

HYD TUBE

1шт.

6

84523266

HOSE ASSY.,19.05mm ID x 745mm L, SAE 100R13

2шт.

7

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

5шт.

8

1546028C1

CLAMP,25.4mm ID x 82mm L

Tube

2шт.

9

84323488

SELF-TAP SCREW,Hex Flg, M8 x 70mm

1шт.

10

47773895

EHF Aux Clamp

BRACKET

1шт.

11

9790526

UNION,1-5/16" - 12 JIC x 1-5/16" - 12 JIC

1шт.

12

84278113

REDUCER FITTING,37 Degree -16 Female x 37 Degree -8 Male

1шт.

13

87360034

SPACER,8.48mm ID x 12.7mm OD x 3.5mm L

2шт.

14

86589143

SPACER,9.5mm ID x 15.9mm OD x 12.7mm L

1шт.

15

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

16

86625201

SELF-TAP SCREW,M8 x 1.25 x 30mm L

1шт.

17

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

18

727077

HALF-FLANGE

Clamp

4шт.

19

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

8шт.

20

86503302

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

2шт.

21

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

4шт.

22

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

1шт.

23

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

24

84251427

SWITCH

High Flow, Rocker

1шт.

Выбрано товаров: 24
