Запчасти Case IH SV300 (35.220.AA[03]) - HYDRAULIC PUMP, EHF W/ CHG 36.6/23.7CC (35) - HYDRAULIC SYSTEMS

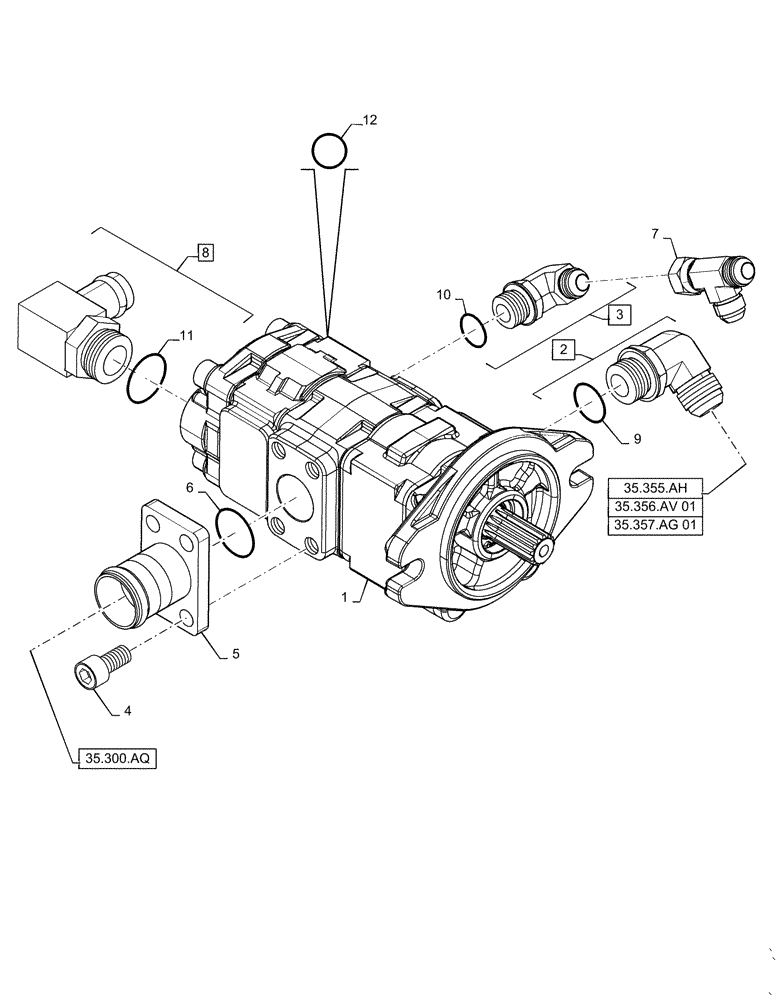

Схема запчастей Case IH SV300 - (35.220.AA[03]) - HYDRAULIC PUMP, EHF W/ CHG 36.6/23.7CC (35) - HYDRAULIC SYSTEMS
35.355.ah
10
6
3
8
9
2
11
12
4
7
5
1
35.357.ag 01
35.356.av 01
35.300.aq

Артикул

Название

Примечание

Количество

1

84572271

EHF

PUMP,36.6 CC

1шт.

2

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 9

1шт.

3

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

Incl 10

1шт.

4

14307321

HEX SOC SCREW,M10 x 1.25 x 20mm, Full Thd, Cl 8.8

4шт.

5

84269151

FITTING

38.1mm OD, Gear Pump Suction

1шт.

6

274754

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

1шт.

7

86511870

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

8

87393628

ADAPTER,1" Hose Barb x 1-5/16" - 12 ORB

Incl 11

1шт.

9

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

12

84389262

SEAL KIT

Services 1

1шт.

Выбрано товаров: 12
