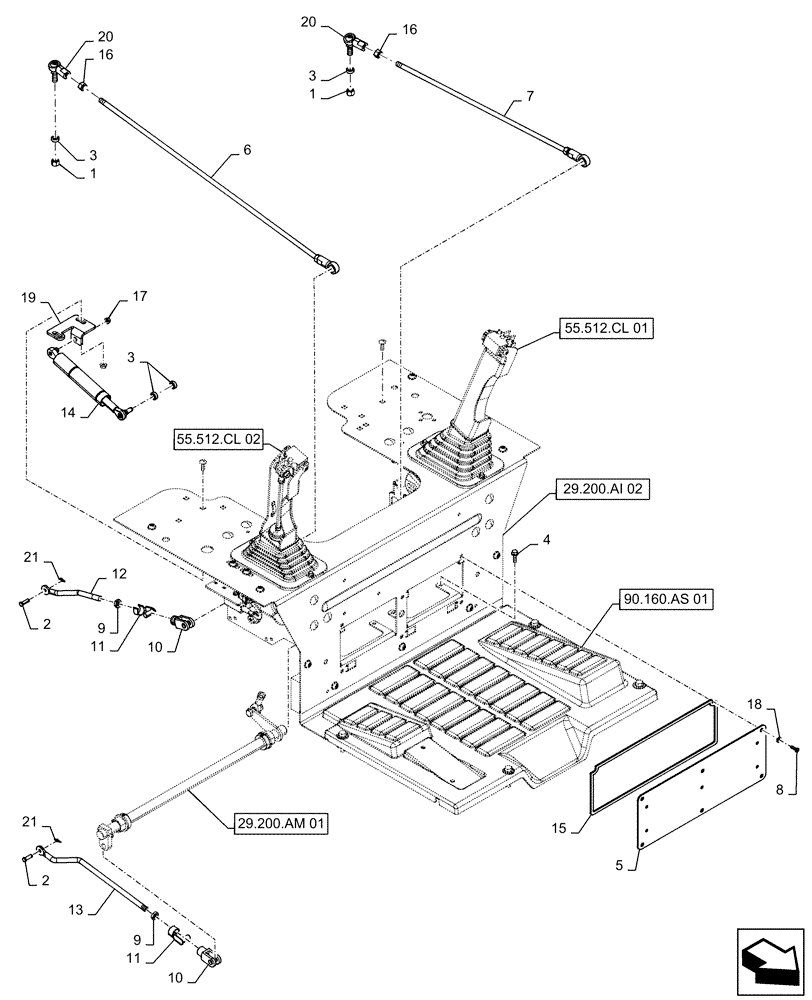

Запчасти Case IH SV300 (29.200.AI[01]) - HAND CONTROLS, MOUNTING ASSY (29) - HYDROSTATIC DRIVE

1

80855

NUT,Hex, 3/8" - 24

2шт.

2

234726

CLEVIS PIN,6.29mm OD x 20mm L

2шт.

3

694371

SPACER,9.77mm ID x 15.87mm OD x 5.03mm Thk

4шт.

4

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

4шт.

5

47625602

Heel Cover

PLATE

1шт.

6

47645575

ROD,9.53mm - 24 x 756mm L

1шт.

7

47645576

ROD,3/8" - 24 x 470mm L

1шт.

8

47710379

SCREW,Pan Head, M5 x 0.8, Full Thd, Cl 4.8

6шт.

9

84221258

THIN NUT,M10 x 1.5, Cl 5

2шт.

10

84299261

CLEVIS,10mm ID x 20mm L

2шт.

11

84299262

CLEVIS PIN,10mm OD x 20mm L

2шт.

12

84300037

ROD,10mm OD x 143.2mm L

1шт.

13

84300039

ROD,10mm OD x 283.7mm L

1шт.

14

84310789

DAMPER,15mm Rod, 61mm Stroke

1шт.

15

84322854

960mm L, Sealing Strip

FOAM INSULATION,684mm L x 6mm W x 3mm Thk

1шт.

16

86509310

NUT,3/8" - 24, Gr 5

2шт.

17

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

18

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

19

84338477

BRACKET

Shock Mount

2шт.

20

230425A1

BALL JOINT,3/8" - 24 x 1-3/5"

2шт.

21

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

2шт.
