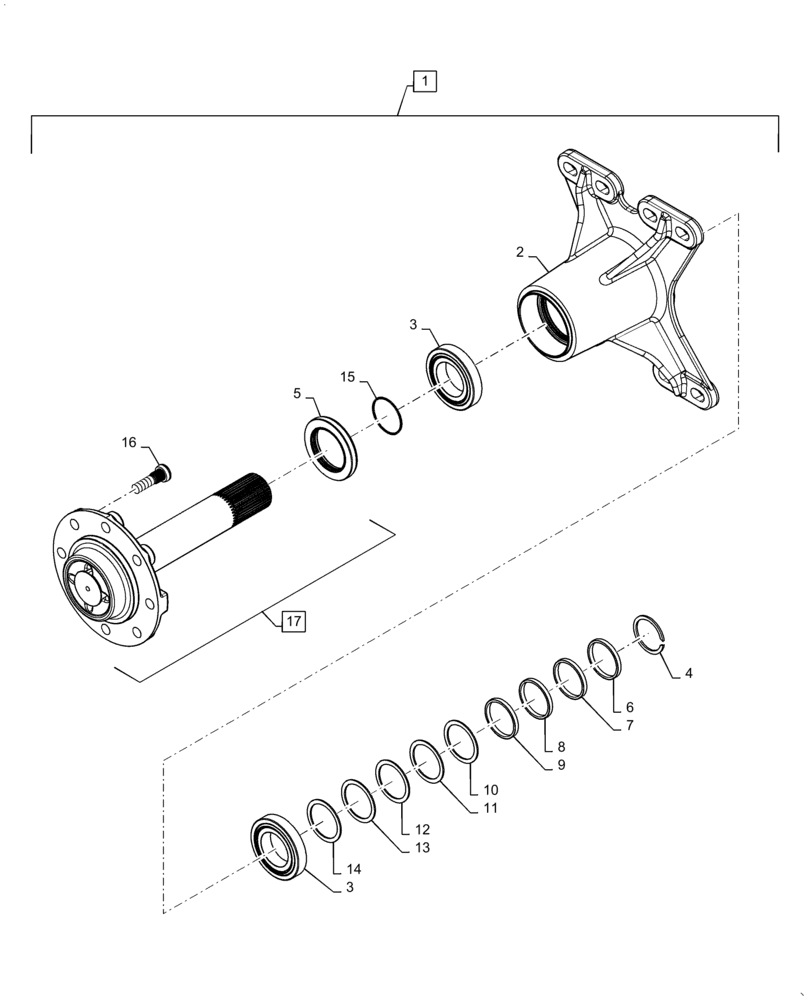

Запчасти Case IH SV300 (25.450.AA) - CHAIN DRIVE AXLE HOUSING (25) - FRONT AXLE SYSTEM

1

84596294

HD, Incl 2 - 17, Years: -02-OCT-16

4WD AXLE ASSY

1шт.

1

48024992

HD, Incl 2 - 17, Start Year: 03-OCT-16

AXLE

1шт.

2

84354066

Gray

AXLE HOUSING

1шт.

3

496536C1

TAPERED BEARING,61.91mm ID x 110mm OD x 22mm W

, Years: -02-OCT-16

2шт.

3

48024991

, Start Year: 03-OCT-16

TAPERED BEARING,Roller, 61.913mm ID x 110mm OD x 22mm W

2шт.

4

84239398

SNAP RING,M61.9, Ext

1шт.

5

341841A2

OIL SEAL,76.2mm ID x 109.95mm OD x 14mm Thk

Axle

1шт.

6

84499772

Select One Spacer as Needed to Obtain Proper Bearing Setting

SPACER,62.25mm ID x 69mm OD x 5.3mm L

1шт.

7

84499774

Select One Spacer as Needed to Obtain Proper Bearing Setting

SPACER,62.25mm ID x 69mm OD x 5.8mm L

1шт.

8

84499778

Select One Spacer as Needed to Obtain Proper Bearing Setting

SPACER,62.25mm ID x 69mm OD x 6.3mm L

1шт.

9

84499784

Select One Spacer as Needed to Obtain Proper Bearing Setting

SPACER,62.25mm ID x 69mm OD x 6.8mm L

1шт.

10

84404996

Select One Shim as Needed to Obtain Proper Bearing Setting

SHIM,62.25mm ID x 76.2mm OD x 1.58mm Thk

1шт.

11

84405003

Select One Shim as Needed to Obtain Proper Bearing Setting

SHIM,62.25mm ID x 76.2mm OD x 1.68mm Thk

1шт.

12

84393466

Select One Shim as Needed to Obtain Proper Bearing Setting

SHIM,62.25mm ID x 76.2mm OD x 1.78mm Thk

1шт.

13

84393470

Select One Shim as Needed to Obtain Proper Bearing Setting

SHIM,62.25mm ID x 76.2mm OD x 1.88mm Thk

1шт.

14

84393472

Select One Shim as Needed to Obtain Proper Bearing Setting

SHIM,62.25mm ID x 76.2mm OD x 1.98mm Thk

1шт.

15

70929921

Axle

O-RING,-036, 70 Duro, 2.364" ID x .070" Thk

1шт.

16

84249319

STUD,Wheel, M16 x 2 x 60mm, Cl 10.9

8шт.

17

84595792

Assy, HD Axle, Incl 16

HUB

1шт.
