(90.160.AR[01]) - FLOOR MAT, MECHANICAL HAND CONTROLS

Запчасти Case IH SV300 (90.160.AR[01]) - FLOOR MAT, MECHANICAL HAND CONTROLS (90) - PLATFORM, CAB, BODYWORK AND DECALS

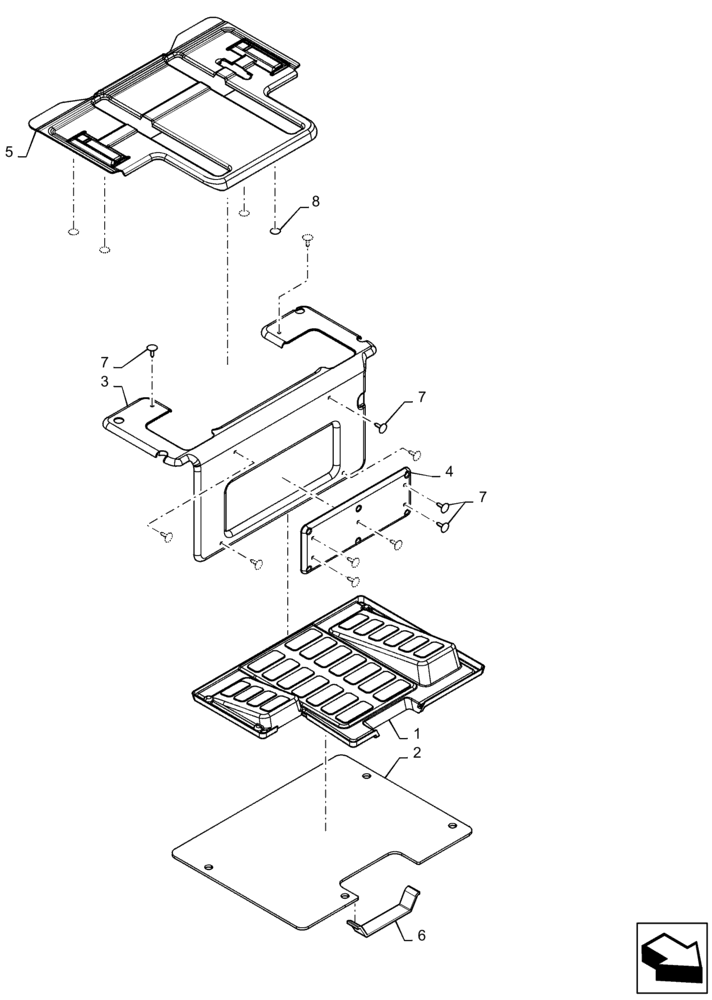

Схема запчастей Case IH SV300 - (90.160.AR[01]) - FLOOR MAT, MECHANICAL HAND CONTROLS (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
1
7
7
7
3
6
5
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47478020

Floor Mat

TRIM

1шт.

2

47504907

FOAM

623.9mm L, No Pedal Floor Plate

1шт.

3

47619028

Heel Plate

FLOOR MAT

1шт.

4

47625604

Heel Plate Access Panel

FLOOR MAT

1шт.

5

84259693

Seat Pan

FLOOR MAT

1шт.

6

84372707

FOAM

265mm L, Front Floor Plate

1шт.

7

86620930

FASTENER,Push-In, 1.10" L, Nylon

11шт.

8

414635A1

COVER,25.4mm OD x 0.51mm Thk

4шт.
