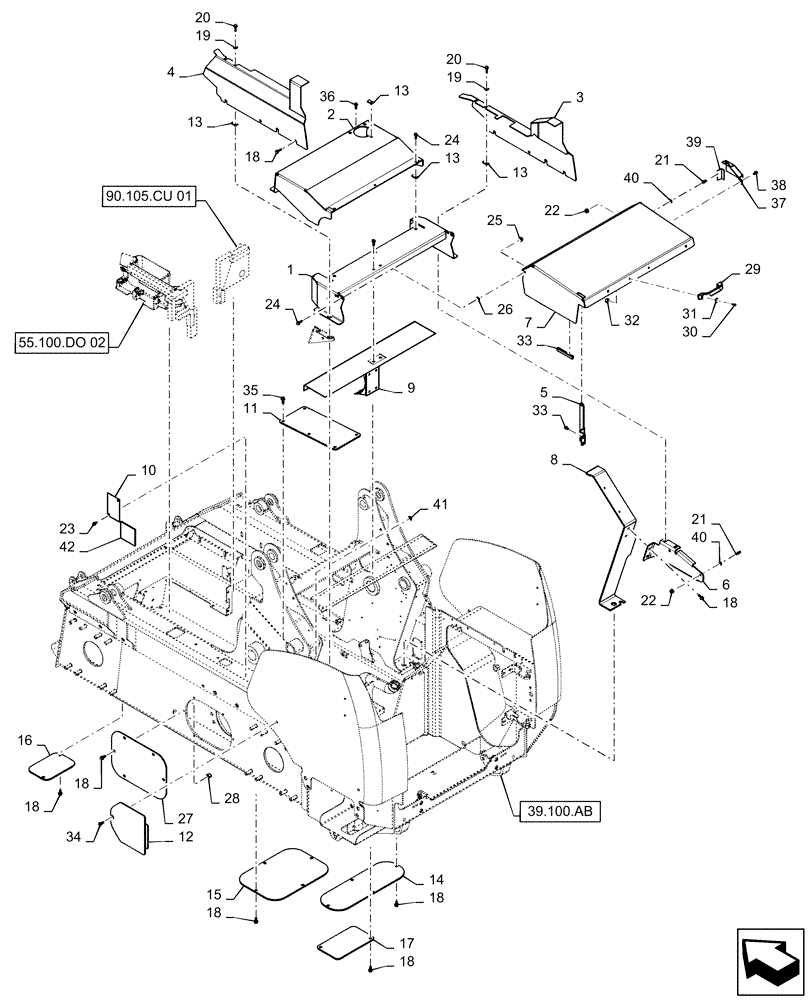

Запчасти Case IH SV300 (90.100.AG) - HOODS & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47645339

Assy, Rear Deck

PANEL

1шт.

2

47707762

Rear Deck

ANGLE

1шт.

3

47766922

RH, Cover

PANEL

1шт.

4

47766914

LH, Cover

PANEL

1шт.

5

47709994

Hood Lock Tab

ANGLE

1шт.

6

47727083

401.6mm L

ANGLE

1шт.

7

47727028

Screen, Tilt

HOOD

1шт.

8

47683853

Cover Mounting

ANGLE

1шт.

9

47606529

Air Cleaner Mounting

BRACKET

1шт.

10

84370417

PLATE,141mm L x 86mm W x 3.68mm Thk

2шт.

11

47747039

DEF Tank Access

COVER

1шт.

12

47822447

Battery

ACCESS COVER

1шт.

13

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

10шт.

14

47717894

PLATE,524.6mm L x 174.6mm W x 6.35mm Thk

1шт.

15

47717914

PLATE,431.6mm L x 303.6mm W x 6.35mm Thk

1шт.

16

47717905

PLATE,225mm L x 150mm W x 6.35mm Thk

1шт.

17

47717909

PLATE,275mm L x 160mm W x 6.35mm Thk

1шт.

18

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

32шт.

19

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

20

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

4шт.

21

189609A1

BALL STUD,M8 x 1.25

2шт.

22

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

23

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

6шт.

24

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

7шт.

25

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

26

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

1шт.

27

84295151

COVER PLATE,400mm L x 280mm W x 4.75mm Thk

2шт.

28

647429

DRAIN PLUG,Sq Soc HD, 1/2" - 14, NPTF

4шт.

29

406256A1

HANDLE

Rear Hood

1шт.

30

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

31

86625264

LOCK WASHER,Ext Tooth, M5

2шт.

32

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

2шт.

33

291186

PROTECTION STRIP,9.9mm W

9.9mm W

1шт.

34

393698

SCREW,FLAT, M10 x 25mm, Cl 8.8

1шт.

35

87550233

SELF-TAP SCREW,Hex Flg, M10 x 1.5 x 25mm

6шт.

36

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

2шт.

37

47730747

Strut Cover

BRACKET

1шт.

38

87752074

SCREW,HWH, M8 x 1.25 x 16mm

2шт.

39

47365894

SEAL

60mm L

1шт.

40

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

41

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

1шт.

42

47765854

101.6mm Square, Battery Retainer

FOAM,101.6mm L x 101.6mm W

1шт.
