Запчасти Case IH SV300 (88.100.35[60]) - DIA KIT, LARGE FRAME HAND CONTROLS (88) - ACCESSORIES

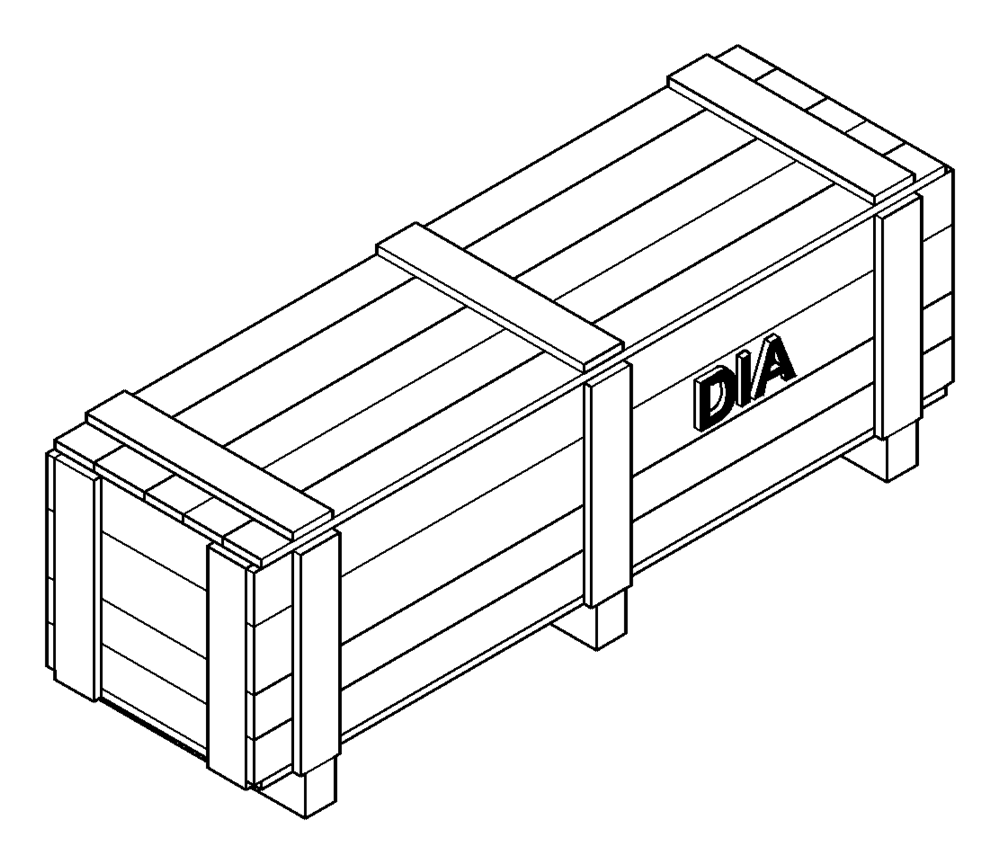

Схема запчастей Case IH SV300 - (88.100.35[60]) - DIA KIT, LARGE FRAME HAND CONTROLS (88) - ACCESSORIES

Артикул

Название

Примечание

Количество

1

47748072

Hand Control, Incl 2 - 47

KIT

1шт.

2

47748083

INSTRUCTION

Hand Controls Installation

1шт.

3

84201060

Floor

PLASTIC PLATE

1шт.

4

47535433

HANDLE

RH, Channel

1шт.

5

84302564

ROD,12.6mm OD x 50mm L

Grip Pivot

2шт.

6

84535678

KNUCKLE JOINT

Hand Control

2шт.

7

86013179

FLANGED BEARING,0.502" ID x 0.875" OD x 0.75" W

Top Hat, 3/4" L

4шт.

8

84406845

SCREW,BTN HD, M8 x 1.25 x 16mm, Cl 10.9

4шт.

9

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

6шт.

10

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

6шт.

11

84263144

BALL JOINT,5/16" - 24

Rod End

2шт.

12

221665

EYE,5/16" - 24

2шт.

13

84300731

THREADED ROD,7.94mm OD x 456mm L

Hand Control

2шт.

14

84201371

BOOT

Control Rod

2шт.

15

84339565

BOOT

RH, Control Handle

1шт.

16

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

2шт.

17

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

18

47535435

HANDLE

LH, Channel

1шт.

19

84339566

BOOT

LH, Control Handle

1шт.

20

84299773

CONTROL SHAFT

481.8mm L, Boom

1шт.

21

84299785

CONTROL SHAFT

105mm L, Bucket

1шт.

22

228500

BUSHING,19.07mm ID x 24.69mm OD x 15.88mm L

4шт.

23

84561937

PLATE

Hand Control

2шт.

24

856800

GROOVED PIN,4.76mm OD x 38.1mm L

2шт.

25

84291866

RETAINER COLLAR,19.05mm ID x 31.75mm OD x 9.53mm W, Incl Set Screw

4шт.

26

87360034

SPACER,8.48mm ID x 12.7mm OD x 3.5mm L

2шт.

27

280483

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

2шт.

28

87034527

LOCK NUT,Prev Torque, 5/16" - 24, Type Non-Directional

2шт.

29

86637933

JAM NUT,5/16" - 24, Gr 5

2шт.

30

84299261

CLEVIS,10mm ID x 20mm L

2шт.

31

84299262

CLEVIS PIN,10mm OD x 20mm L

2шт.

32

84300039

ROD,10mm OD x 283.7mm L

Loader Valve Boom

1шт.

33

84300037

ROD,10mm OD x 143.2mm L

Loader Valve Bucket

1шт.

34

84221258

THIN NUT,M10 x 1.5, Cl 5

2шт.

35

84353772

DECAL

RH, Level 250

1шт.

36

84396161

DECAL

RH, Level 350

1шт.

37

84353780

DECAL

LH, Level 350

1шт.

38

84353762

DECAL

LH, Level 250

1шт.

39

84386278

KIT

Hand Boom Spring

1шт.

40

84386277

KIT

Hand Bucket Spring

1шт.

41

87034513

JAM NUT,5/16" - 24, LH Thd, 0.195" High, Gr 5

2шт.

42

47449526

Foot Throttle

BRACKET

1шт.

43

47414005

PEDAL

Foot Throttle W/ Sensor

1шт.

44

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

2шт.

45

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

46

86637782

GROMMET,3/8" ID x 1" Groove Dia, Str Cut

1шт.

47

87017606

SELF-TAP SCREW,Hex Flng, M6 x 1 x 20mm

3шт.

Выбрано товаров: 47
