Запчасти Case IH SV300 (55.512.CL[07]) - LEVEL 200 HANDLE GRIPS, 2-SPEED MECHANICAL CONTROLS, W/O MULTI-FUNCTION ELECTRICAL CONTROL (55) - ELECTRICAL SYSTEMS

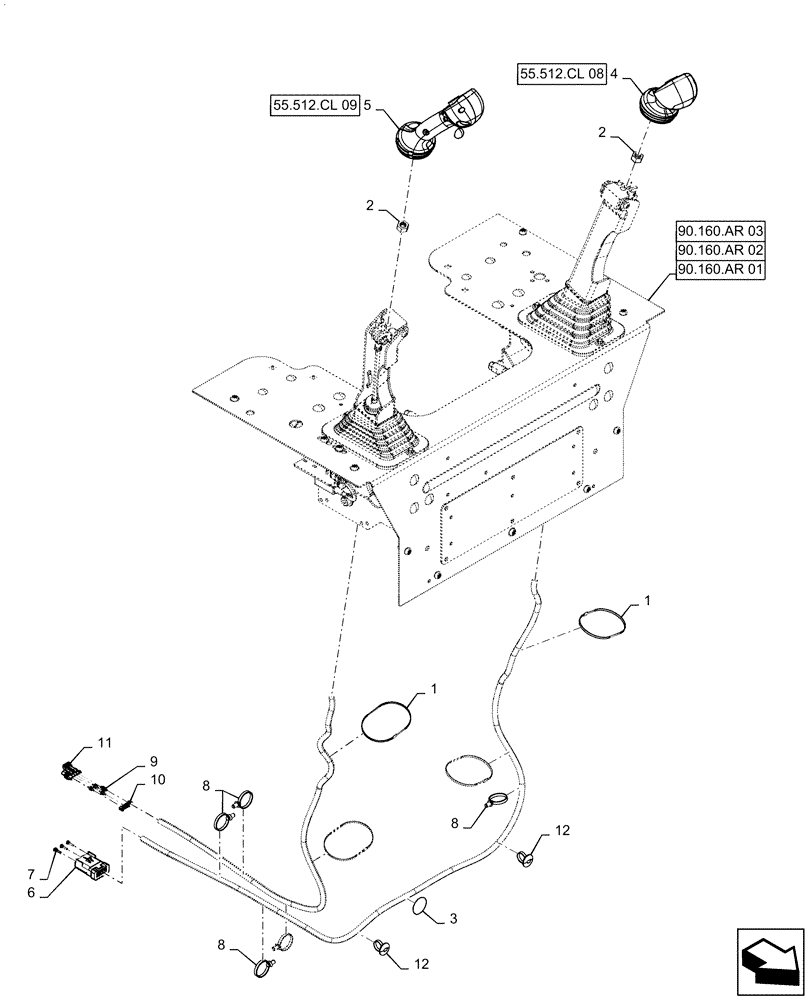

Схема запчастей Case IH SV300 - (55.512.CL[07]) - LEVEL 200 HANDLE GRIPS, 2-SPEED MECHANICAL CONTROLS, W/O MULTI-FUNCTION ELECTRICAL CONTROL (55) - ELECTRICAL SYSTEMS
90.160.ar 01
8
9
12
8
11
8
2
10
1
1
4
12
55.512.cl 09
2
55.512.cl 08
6
7
3
5
90.160.ar 02
90.160.ar 03

Артикул

Название

Примечание

Количество

1

263117

CABLE TIE,292.1mm L, Nylon, Black

4шт.

2

9706685

NUT,M12 x 1.75, Cl 8

2шт.

3

47574736

COVER,Rnd, 35mm OD

1шт.

4

47777522

GRIP

LH Level 200

1шт.

5

47777531

GRIP

RH Level 200

1шт.

6

84279937

PLUG,Apex, 2.80mm

5шт.

7

87382923

ELEC CONNECTOR,Male, 10 Cavities

1шт.

8

87668737

CABLE TIE,203.2mm L, Nylon, Black

FIR Tree Assy

5шт.

9

87689636

PLUG,Red, Taxi Seal Connector Cavity

2шт.

10

87689643

CLIP,4.8mm ID

1шт.

11

87697724

ELEC CONNECTOR,Female, 4 Cavities

1шт.

12

378884A2

STRAP,254mm L

Panel Tie

2шт.

Выбрано товаров: 12
