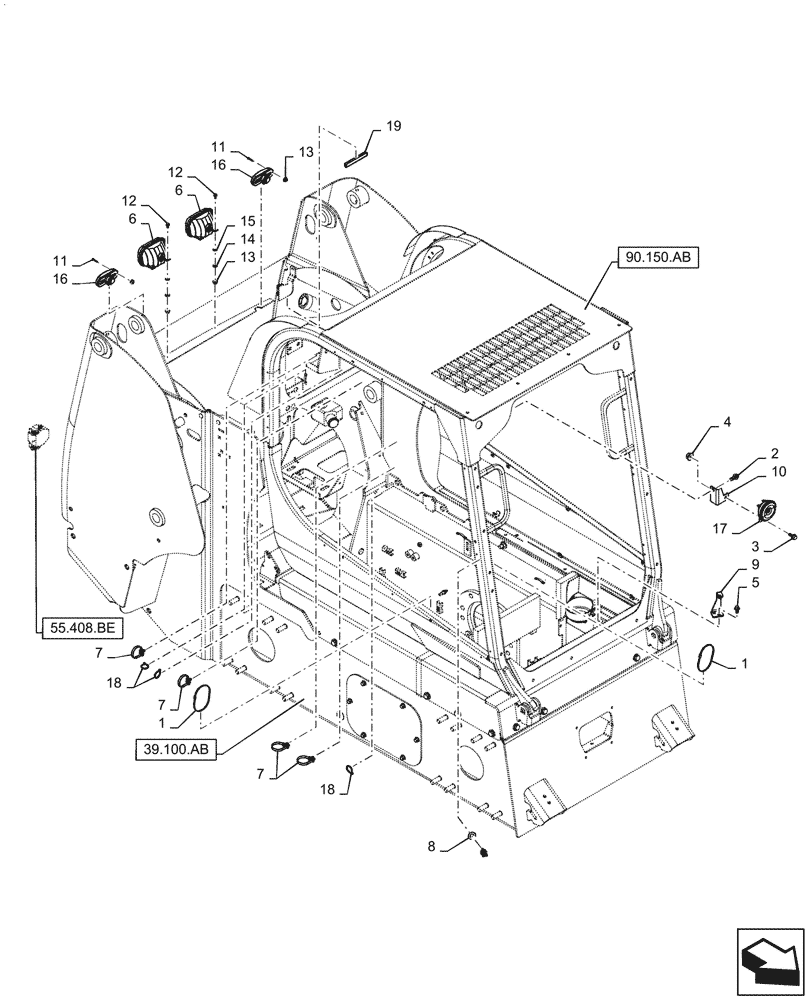

Запчасти Case IH SV300 (55.408.AG) - HORN & BEACON RELATED PARTS (55) - ELECTRICAL SYSTEMS

1

84360212

CABLE TIE,294.2mm L, Nylon

Nylon

3шт.

2

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

1шт.

3

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

1шт.

4

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

5

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

2шт.

6

84306337

WORK LAMP,12V, 37.5W, Clear

2шт.

7

84379484

CABLE TIE,228.6mm L, Nylon, Black

Polyamide 6.6

4шт.

8

84412290

DECAL

Light Switch Case

1шт.

9

47842392

Fuse Cover

BRACKET

1шт.

10

84545953

BRACKET, SUPPORTING

Horn

1шт.

11

86502967

SCREW,Phillips Drive, Pan HD, M5 x 30mm, Cl 4.8

4шт.

12

86511838

BOLT,Hvy Hex, M5 x 12mm, Cl 8.8, Full Thd

4шт.

13

86512495

FLANGE NUT,Hex, M5, Cl 8

8шт.

14

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

15

86625264

LOCK WASHER,Ext Tooth, M5

4шт.

16

87627854

LIGHT ASSY.,12V, 27W, Red

Tail/Stop

2шт.

17

87714969

HORN

W/ Breather

1шт.

18

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

19

291186

PROTECTION STRIP,9.9mm W

Bulk, Cut to Length 0.295FT

1шт.
