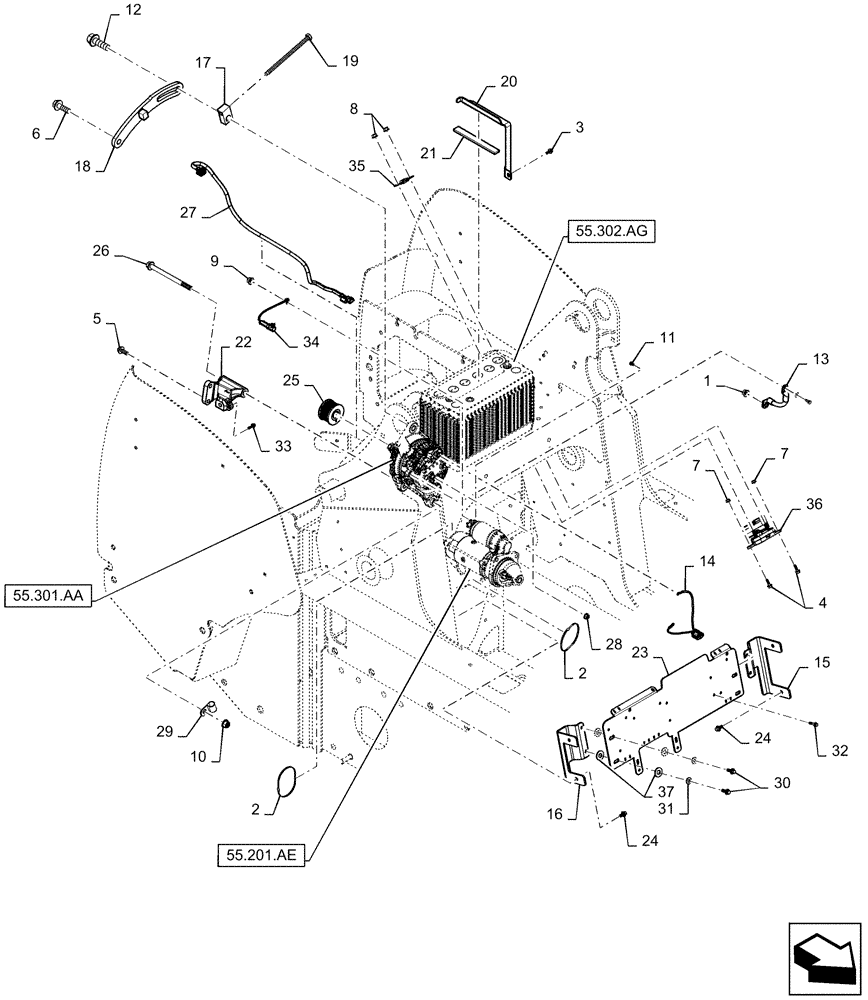

Запчасти Case IH SV300 (55.302.AV) - VERTICAL, ENGINE ELECTRICAL (55) - ELECTRICAL SYSTEMS

1

43435

FLANGE NUT,Hex, M10 x 1.5

1шт.

2

263117

CABLE TIE,292.1mm L, Nylon, Black

Nylon

2шт.

3

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

1шт.

4

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

2шт.

5

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

6

9804262

BOLT,M10 x 39.2mm, Cl 8.8

4шт.

7

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

8

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

9

9804278

FLANGE NUT,M10 x 1.5, Cl 8

1шт.

10

9804279

FLANGE NUT,Hex, M12, Cl 8

1шт.

11

10445821

SCREW,Hex, M4 x 8mm, Cl 8.8, Full Thd

1шт.

12

47375979

FLANGE BOLT,1/2" - 13 x 1-1/2", Gr 8

1шт.

13

47714105

Alternator

GROUND CABLE

1шт.

14

47596125

Alternator Jumper

WIRE HARNESS

1шт.

15

47606647

LH, ECU Plate

BRACKET

1шт.

16

47606649

RH, ECU Plate

BRACKET

1шт.

17

47641577

Threaded

BLOCK

1шт.

18

47641584

Alternator, Belt

TENSIONER

1шт.

19

47641685

BOLT,Hex, M8 x 1.25 x 130mm, Cl 10.9, Full Thd

1шт.

20

47657937

Battery Retainer

ANGLE

1шт.

21

47658963

Battery Retainer

FOAM,6.35mm x 20mm x 175mm

1шт.

22

47660212

Alternator

MOUNT

1шт.

23

47703666

ECU, Mounting

ANGLE

1шт.

24

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

3шт.

25

84409052

Alternator

PULLEY,66mm OD

2шт.

26

84526231

BOLT,Hex, M12 x 170mm, Cl 10.9

1шт.

27

84529949

WIRE HARNESS

Fuel Filter Jumper

1шт.

28

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1шт.

29

86598598

CLAMP,19mm, Insulated, 13.5mm Bolt Hole - P Type

1шт.

30

86625200

SELF-TAP SCREW,Hex Flng, M8 x 1.25 x 20mm

1шт.

31

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

32

87016558

SELF-TAP SCREW,Hex Flng, M6 x 1 x 25mm

4шт.

33

87017606

SELF-TAP SCREW,Hex Flng, M6 x 1 x 20mm

4шт.

34

87053083

HARNESS

Starter Jumper

1шт.

35

87472238

FUSE,60A, Blade

1шт.

36

440038A1

JUNCTION BLOCK

Fuse

1шт.

37

47699443

WASHER,8.74mm ID x 22.2mm OD x 2mm Thk, Teflon

8шт.
