Запчасти Case IH SV300 (55.302.AV[01]) - NO BATTERY DISCONNECT (55) - ELECTRICAL SYSTEMS

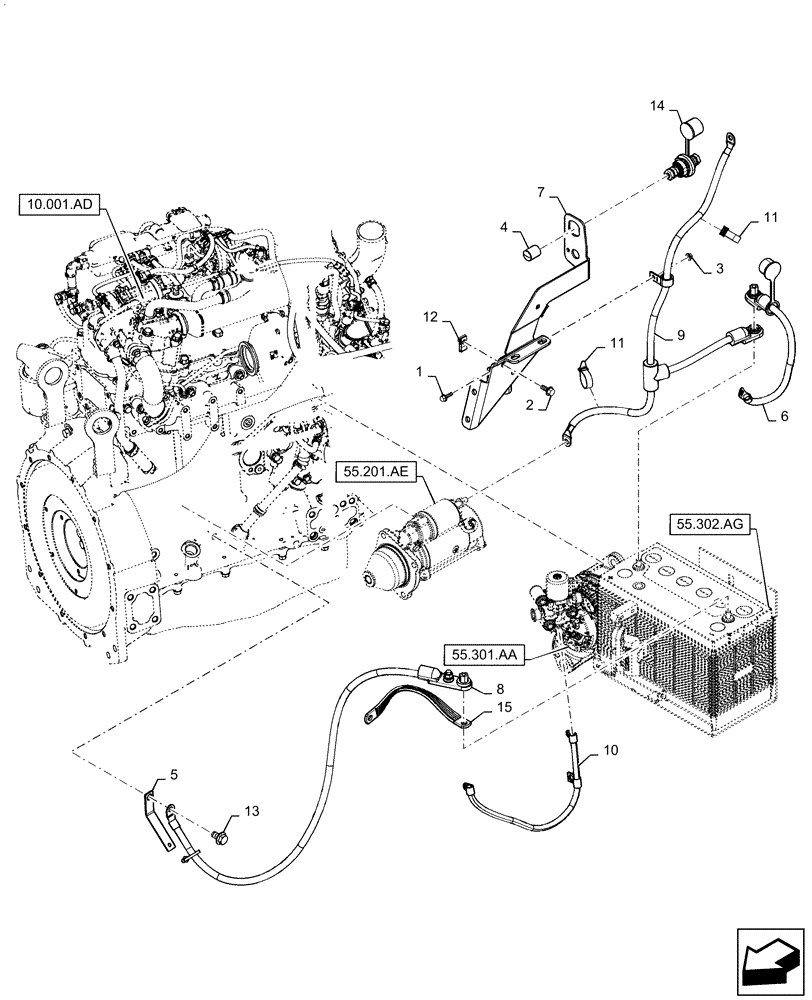

Схема запчастей Case IH SV300 - (55.302.AV[01]) - NO BATTERY DISCONNECT (55) - ELECTRICAL SYSTEMS
55.302.ag
4
15
2
11
10
11
1
6
14
12
5
13
3
9
8
7
55.201.ae
10.001.ad
55.301.aa

Артикул

Название

Примечание

Количество

1

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

1шт.

2

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

3

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

4

47455442

19.5mm ID, Terminal Insulator

CAP,19.5mm ID x 22.35mm OD x 25.4mm L

1шт.

5

47643801

Negative Cable Retention

ANGLE

1шт.

6

47646215

Battery to Fuse, No Disconnect

CABLE,420.8mm L

1шт.

7

47707326

Battery Disconnect

BRACKET

1шт.

8

47754638

NEG BATTERY CABLE,1018mm L

1шт.

9

47767372

Battery to Starter and Jump Post

CABLE

1шт.

10

47776508

Alternator to Starter

CABLE,442.5mm L

1шт.

11

84266050

CABLE TIE,384mm L, Polyamide

1шт.

12

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

2шт.

13

87698844

BOLT,Hex, M12 x 1.75 x 20mm, Full Thd, Cl 10.9

1шт.

14

399383A1

TERMINAL CONNECTOR,3/8"-16 UNC

Remote Jump Start

1шт.

15

D140369

GROUND STRAP,260mm L

260mm L, Ground Strap

1шт.

Выбрано товаров: 15
