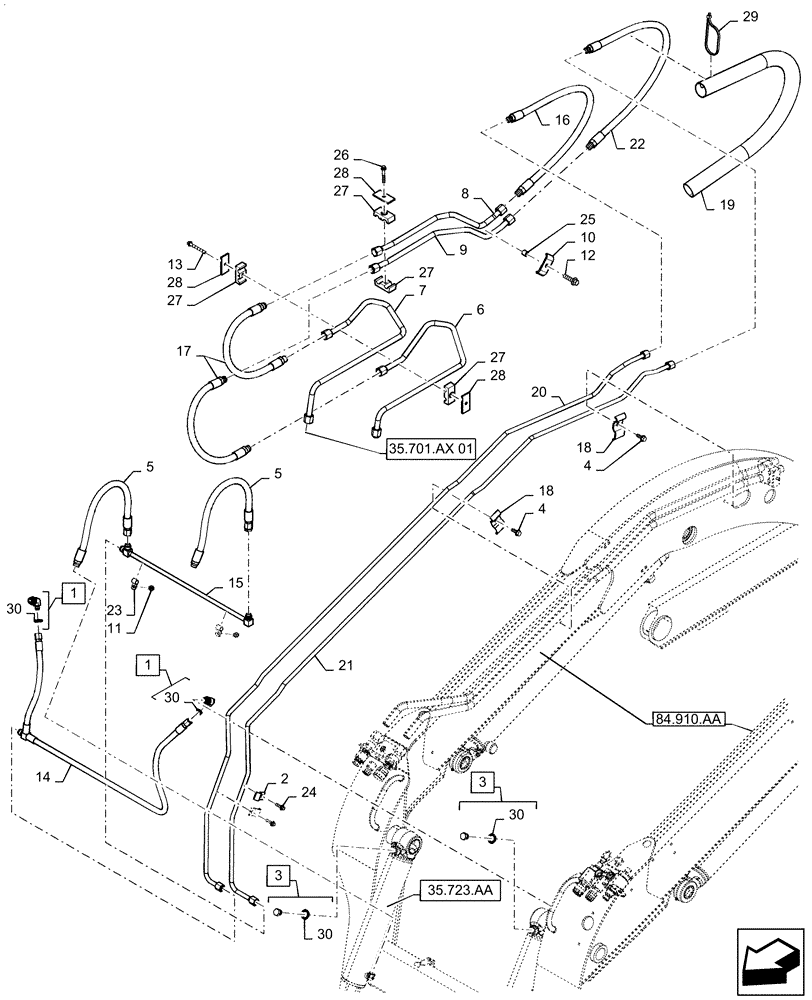

Запчасти Case IH SV300 (35.723.AB) - BUCKET CYLINDER LINES, EHF (35) - HYDRAULIC SYSTEMS

1

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

Incl 30, Years: -17-JUL-16

2шт.

1

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 30, Start Year: 18-JUL-16

2шт.

2

184064

CLIP,12.7mm ID, 8.73mm Bolt Hole, J Type

Tube, Years: -17-JUL-16

2шт.

2

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

, Start Year: 18-JUL-16

2шт.

3

214389

PLUG,3/4" - 16 ORB

Incl 30

2шт.

4

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

3шт.

5

47505812

HOSE,12.5mm ID x 593mm L, SAE 100R16

Tip Cylinder

2шт.

6

47560315

15.9mm OD x 934.9mm L, RH Tower

TUBE

1шт.

7

47560318

15.9mm OD x 937.8mm L, RH Tower

TUBE

1шт.

8

47746970

15.9mm OD x 601.9mm L, Tip Cylinder Lower Link

HYD TUBE

1шт.

9

47746974

15.9mm OD x 612.3mm L, Tip Cylinder Lower Link

HYD TUBE

1шт.

10

84254045

CLAMP,66mm L

66mm L, Tube

1шт.

11

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

2шт.

12

84285342

M10 x 35

SELF-TAP SCREW,Hex Flng Hd, M10 x 1.5 x 35mm

1шт.

13

84323488

SELF-TAP SCREW,Hex Flg, M8 x 70mm

1шт.

14

84346682

Tip Cylinder Base

HOSE ASSY.,9.53mm ID x 1457mm L, SAE 100R17

1шт.

15

84346785

12.7mm OD, Tip Crossover

HYD TUBE

1шт.

16

84356590

Tip Cylinder Upper

HYDRAULIC HOSE,12.7mm ID x 981mm L, SAE 100R16

1шт.

17

84356593

Tip Cylinder Lower

HYDRAULIC HOSE,12.7mm ID x 561mm L, SAE 100R16

2шт.

18

84356597

79.1mm L, Butterfly Tube

CLAMP

3шт.

19

84362109

HOSE PROTECTION,46mm ID x 50mm OD x 1070mm L

Guard, Hose

1шт.

20

84533283

12.7mm OD x 2697.0mm L, Tip Cylinder Arm

HYD TUBE

1шт.

21

84533285

12.7mm OD x 2699.1mm L, Tip Cylinder Arm

HYD TUBE

1шт.

22

84533287

Tip Cylinder Upper

HYDRAULIC HOSE,12.7mm ID x 921mm L, SAE 100R16

1шт.

23

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

24

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

2шт.

25

87340800

SPACER,5/8" Tube x 15.88mm

1шт.

26

87582902

SELF-TAP SCREW,Hex, M8 x 1.25 x 55mm

1шт.

27

1546026C1

CLAMP

15.87mm ID, Tube

2шт.

28

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

3шт.

29

L18331

CABLE TIE,375.9mm L, Nylon, Black

Nylon

1шт.

30

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.
