Запчасти Case IH SV300 (35.525.AA[21]) - DUAL AUXILIARY HYDRAULIC, CHASSIS MOUNTED (35) - HYDRAULIC SYSTEMS

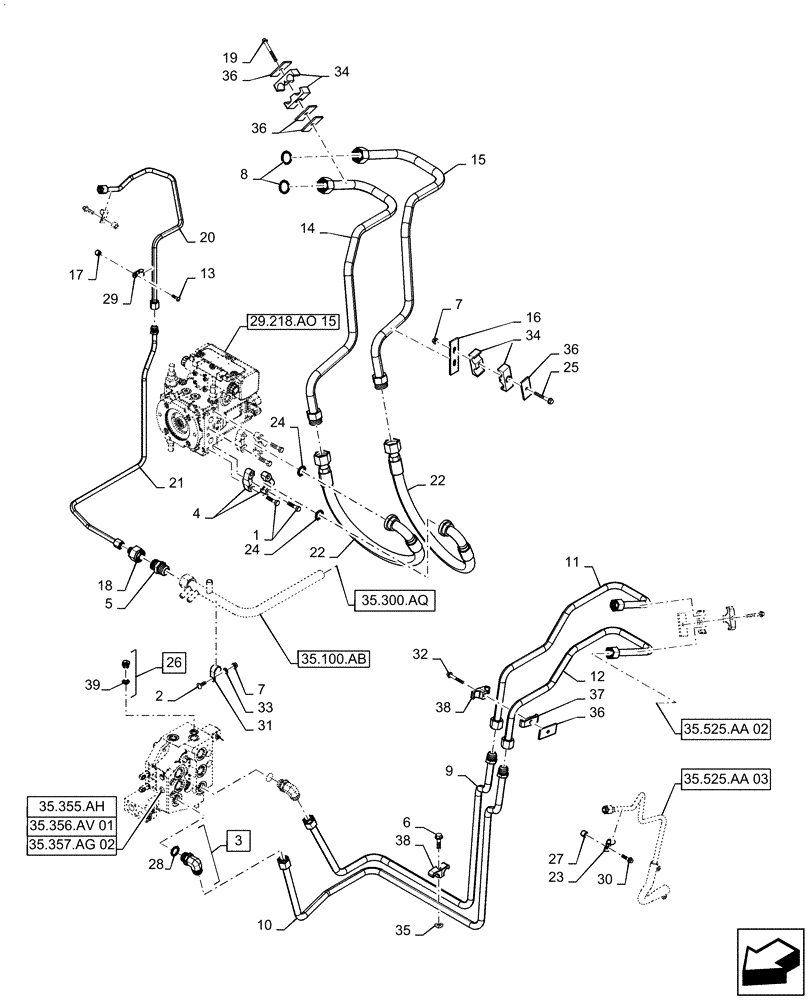

Схема запчастей Case IH SV300 - (35.525.AA[21]) - DUAL AUXILIARY HYDRAULIC, CHASSIS MOUNTED (35) - HYDRAULIC SYSTEMS
35.355.ah
30
36
12
4
27
31
17
16
7
7
2
15
34
33
28
34
38
32
14
10
35
19
22
36
9
38
36
6
13
23
29
20
24
36
1
11
3
22
25
24
26
39
5
8
18
21
37
35.357.ag 02
29.218.ao 15
35.356.av 01
35.525.aa 02
35.525.aa 03
35.100.ab
35.300.aq

Артикул

Название

Примечание

Количество

1

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

8шт.

2

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

1шт.

3

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 28

2шт.

4

727077

HALF-FLANGE

0.75" Split Flange

4шт.

5

9790526

UNION,1-5/16" - 12 JIC x 1-5/16" - 12 JIC

1шт.

6

9804263

BOLT,M10 x 49.2mm, Cl 8.8

1шт.

7

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

8

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

4шт.

9

47560328

TUBE

19.05mm OD x 1428.1mm L, Aux, Loader Valve To Lift Tower, Left

1шт.

10

47560330

TUBE

19.05mm OD x 1672.1mm L, Aux, Loader Valve To Lift Tower, Left

1шт.

11

47560332

19.05mm OD x 951.4mm L, Aux, LH Tower, Left

TUBE

1шт.

12

47560334

19.05mm OD x 897.3mm L, Aux, LH Tower, Left

TUBE

1шт.

13

87017606

SELF-TAP SCREW,Hex Flng, M6 x 1 x 20mm

1шт.

14

47773413

25.4mm OD, Enhanced High Flow Aux RH Tower, Male Run

HYD TUBE

1шт.

15

47773415

25.4mm OD, Enhanced High Flow Aux RH Tower, Female Run

HYD TUBE

1шт.

16

47773895

Enhanced High Flow Aux Clamp

BRACKET

1шт.

17

87360034

SPACER,8.48mm ID x 12.7mm OD x 3.5mm L

2шт.

18

84278113

REDUCER FITTING,37 Degree -16 Female x 37 Degree -8 Male

1шт.

19

84323488

SELF-TAP SCREW,Hex Flg, M8 x 70mm

1шт.

20

84356484

12.7mm OD, Enhanced High Flow Case Drain Tower

HYD TUBE

1шт.

21

84356598

12.7mm OD, Enhanced High Flow Case Drain Chassis

HYD TUBE

1шт.

22

84523266

Enhanced High Flow Aux Pump

HOSE ASSY.,19.05mm ID x 745mm L, SAE 100R13

2шт.

23

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

24

86503302

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

2шт.

25

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

1шт.

26

86512512

PLUG,7/8" - 14 ORB

Incl 39

1шт.

27

86589143

SPACER,9.5mm ID x 15.9mm OD x 12.7mm L

1шт.

28

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

29

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

30

86625201

SELF-TAP SCREW,M8 x 1.25 x 30mm L

1шт.

31

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

32

87582902

SELF-TAP SCREW,Hex, M8 x 1.25 x 55mm

2шт.

33

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

34

1546028C1

CLAMP,25.4mm ID x 82mm L

Hydraulic Tube

2шт.

35

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

1шт.

36

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

7шт.

37

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

Tube Cap

2шт.

38

D124301

CLAMP,3/4" ID

3шт.

39

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Выбрано товаров: 39
