Запчасти Case IH SV300 (35.525.AA[03]) - DRAIN LINE, HYDRAULIC (35) - HYDRAULIC SYSTEMS

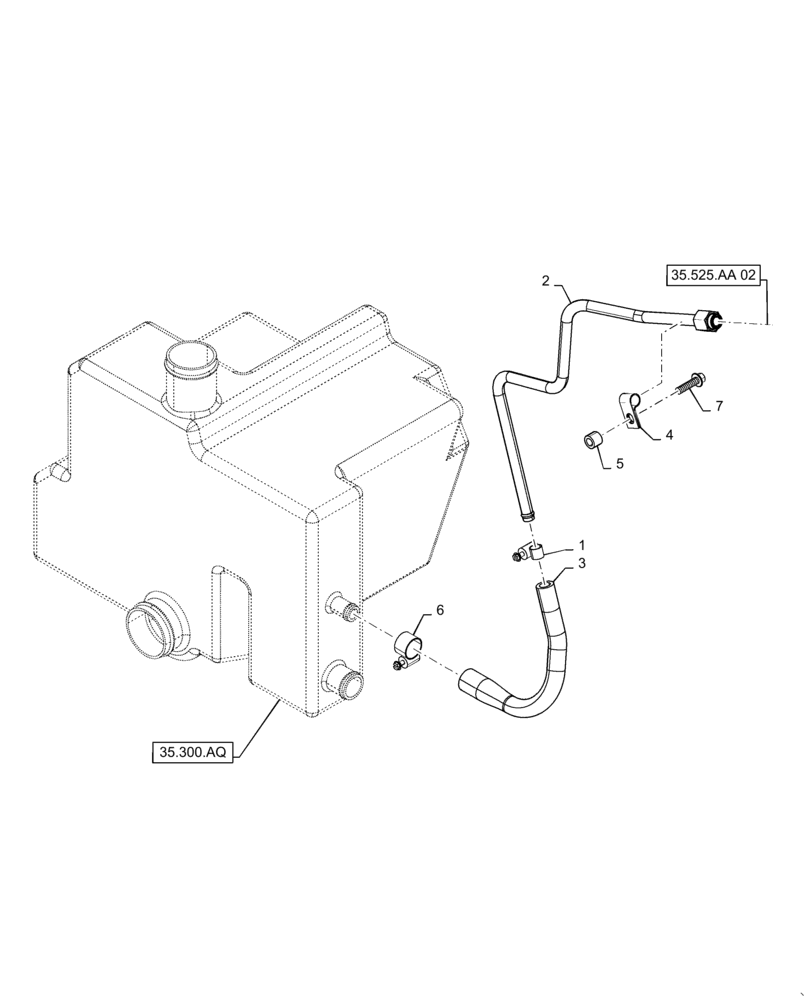

Схема запчастей Case IH SV300 - (35.525.AA[03]) - DRAIN LINE, HYDRAULIC (35) - HYDRAULIC SYSTEMS
4
3
5
7
35.525.aa 02
2
6
35.300.aq
1

Артикул

Название

Примечание

Количество

1

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

1шт.

2

47606591

12.7mm OD, Case Drain

TUBE

1шт.

3

47606593

Hose, Case Drain to Tank

TUBE

1шт.

4

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

5

86589143

SPACER,9.5mm ID x 15.9mm OD x 12.7mm L

1шт.

6

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

1шт.

7

86625201

SELF-TAP SCREW,M8 x 1.25 x 30mm L

1шт.

Выбрано товаров: 7
