Запчасти Case IH SV300 (35.525.AA[01]) - AUXILIARY HYDRAULIC, STANDARD , CHASSIS MOUNTED (35) - HYDRAULIC SYSTEMS

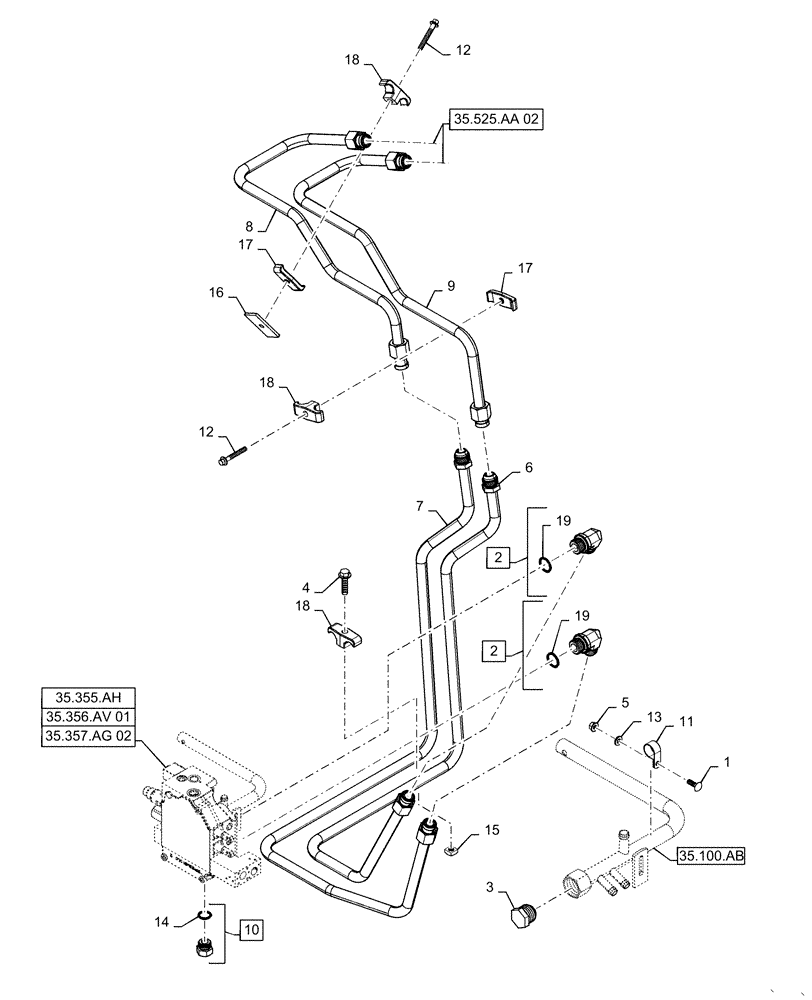

Схема запчастей Case IH SV300 - (35.525.AA[01]) - AUXILIARY HYDRAULIC, STANDARD , CHASSIS MOUNTED (35) - HYDRAULIC SYSTEMS
35.355.ah
6
15
2
5
18
4
12
12
8
18
7
17
14
1
16
9
19
11
2
13
3
18
19
17
10
35.357.ag 02
35.356.av 01
35.525.aa 02
35.100.ab

Артикул

Название

Примечание

Количество

1

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

1шт.

2

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 19

2шт.

3

9790527

PLUG,1-5/16" - 12 JIC

1шт.

4

9804263

BOLT,M10 x 49.2mm, Cl 8.8

1шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

6

47560328

TUBE

19.05mm OD, Aux, Loader Valve to Lift Tower, 1428.1mm L

1шт.

7

47560330

TUBE

19.05mm OD, Aux, Loader Valve to Lift Tower, 1672.1mm L

1шт.

8

47560332

19.05mm OD, Aux, LH Tower, Male Run

TUBE

1шт.

9

47560334

19.05mm OD, Aux, LH Tower, Female Run

TUBE

1шт.

10

86512512

PLUG,7/8" - 14 ORB

Incl 14

1шт.

11

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

12

87582902

SELF-TAP SCREW,Hex, M8 x 1.25 x 55mm

2шт.

13

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

14

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

15

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

1шт.

16

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

1шт.

17

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

Tube Cap

2шт.

18

D124301

CLAMP,3/4" ID

3шт.

19

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

Выбрано товаров: 19
