Запчасти Case IH SV300 (29.204.AB[01]) - PUMP, MECHANICAL (SR250,SV300) (29) - HYDROSTATIC DRIVE

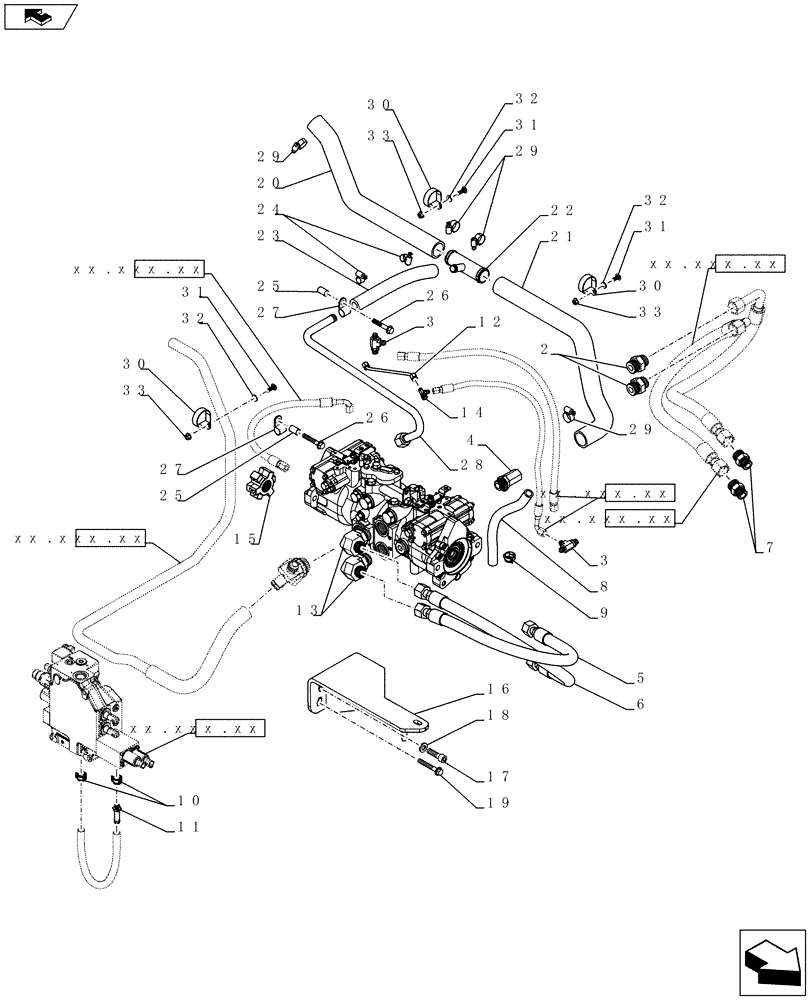

Схема запчастей Case IH SV300 - (29.204.AB[01]) - PUMP, MECHANICAL (SR250,SV300) (29) - HYDROSTATIC DRIVE
12
32
32
6
30
xx.xxx.xx
14
xx.xxx.xx
19
30
25
31
30
4
24
xx.xxx.xx
7
17
29
5
33
28
xx.xxx.xx
9
2
20
10
xx.xxx.xx
26
11
18
29
3
16
32
home
27
22
33
8
3
13
33
xx.xxx.xx
31
21
15
25
23
31
26
27
29

Артикул

Название

Примечание

Количество

1

84322471

Tandem, 48cc MDC; See Figures 29.212.06

HYDROSTATIC PUMP,46 CC

1шт.

1

84322471R

REMAN-HYD PUMP

1шт.

1

84322471C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

87359470

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

2шт.

3

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

4

84273629

FITTING,1-1/16" - 12 ORB x M10 x 1 x 5/8" Hose Barb

M10 X 1

1шт.

5

84258856

Assembly, Loop

FLEXIBLE HOSE,19.05mm ID x 867mm L, SAE 100R19

1шт.

6

84258846

Assembly, Loop

FLEXIBLE HOSE,19.05mm ID x 835mm L, SAE 100R19

1шт.

7

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

4шт.

8

84273646

Pump Drain

HOSE,15.88mm ID x 304.8mm L

1шт.

9

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

Spring

2шт.

10

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

2шт.

11

87314487

Bead, Hose, 1/2in

HYD CONNECTOR,7/16" - 20 ORB x 1/2" Hose Barb

1шт.

12

87021277

TUBE,6.35mm OD x 124.9mm L, 37 Degree Flare

1шт.

13

87326965

90 ELBOW,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

2шт.

14

86513653

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

1шт.

15

87711337

COUPLING,19T, 1-1/8" ID

Drive, Star

1шт.

16

84201132

Pump Support

MOUNT

1шт.

17

15734

SCREW,Hex Socket, 1/2" - 13 x 1-3/4"

4шт.

18

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

19

86011090

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

2шт.

20

84349292

Gear Pump, Suction

HOSE,38.1mm ID

1шт.

21

84349297

HOSE,38mm ID x 684mm L

Gear Pump, Suction

1шт.

22

84344919

-24 Bead, -24 Bead, -12 Bead

TEE

1шт.

23

84344942

HOSE,19.05mm OD x 280mm L

Tandem Supply

1шт.

24

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

2шт.

25

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

1шт.

26

9804265

FLANGE BOLT,Hex, M10 x 60mm, Cl 8.8

1шт.

27

86637999

CLAMP,19mm, Coat, 11.9mm Bolt Hole, P Type

1шт.

28

84420270

HYD TUBE,19.05mm OD

Hydraulic, Tandem Supply

1шт.

29

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

4шт.

30

84265306

CLAMP,47.6mm, Coat, 8.7mm Bolt Hole, P Type

47.6MM M8 Bolt ZND

2шт.

31

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

2шт.

32

87655042

M8, 8.80 X 17.5 X 2.2 HTS

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

5шт.

33

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

3шт.

Выбрано товаров: 35
