Запчасти Case IH SV300 (10.400.02[03]) - COOLER ASSEMBLY AFTER AUG 8, 2013 (10) - ENGINE

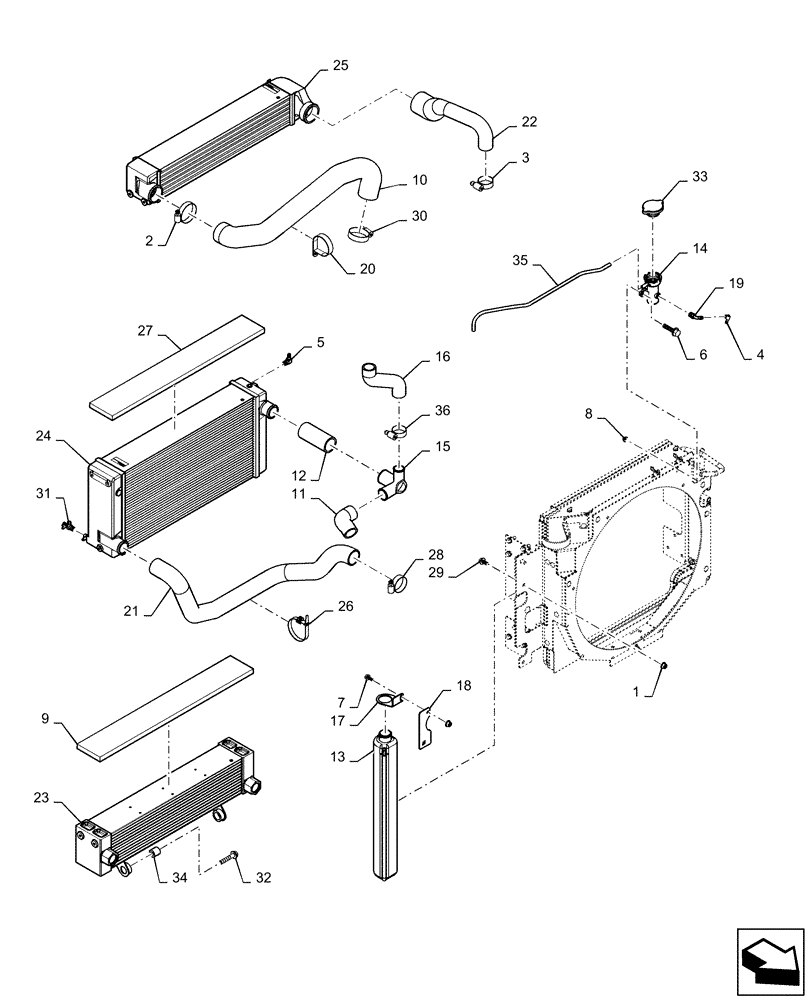

Схема запчастей Case IH SV300 - (10.400.02[03]) - COOLER ASSEMBLY AFTER AUG 8, 2013 (10) - ENGINE
32
14
35
28
8
34
27
1
2
24
3
6
29
33
16
22
13
36
23
12
7
30
25
20
18
5
26
15
10
4
17
11
21
19
31
9

Артикул

Название

Примечание

Количество

1

43435

FLANGE NUT,Hex, M10 x 1.5

8шт.

2

45014

HOSE CLAMP,2.06” - 3” , Worm Gear

2шт.

3

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

5шт.

4

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

2шт.

5

696519

FITTING,90 Degree, 5/16" Hose x 1/4" NPTF, Barbed

1шт.

6

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

2шт.

7

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

8

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

9

47410465

INSULATION,706.50mm L x 104.50mm W x 16.50mm Thk

1шт.

10

47411236

HOSE

Intake Air, Engine to CAC

1шт.

11

47458973

Coolant Upper

RADIATOR HOSE

1шт.

12

47458975

RADIATOR HOSE

1шт.

13

47490003

BOTTLE

Coolant Recovery

1шт.

14

47503038

Radiator, Years: -30-APR-15

NECK FILLER

1шт.

14

47815834

Radiator, Start Year: 01-MAY-15

NECK FILLER

1шт.

15

47507642

FITTING

1шт.

16

47509677

Coolant Upper

RADIATOR HOSE

1шт.

17

47511363

Coolant Bottle Upper

BRACKET

1шт.

18

47511366

Dipstick Offset

PLATE

1шт.

19

47591117

FITTING,90 Degree Elbow, 5/16" Barb x 1/4" - 18 Male NPT

1шт.

20

84201540

CLAMP,69.8mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

21

84277824

HOSE,45mm ID, SAE 20R4

Cooler Lower

1шт.

22

84496890

Intake Air, CAC to Engine

HOSE

1шт.

23

84499497

Standard Fin Density

OIL COOLER

1шт.

23

84475136

Low Fin Density, Optional

OIL COOLER

1шт.

Not Factory Option, Only Available Through Service Parts

1шт.

24

84499505

Standard Fin Density

RADIATOR

1шт.

24

47373877

MODULE

Radiator, Low Fin Density, Optional

1шт.

Not Factory Option, Only Available Through Service Parts

1шт.

25

84515801

Charge Air, Standard Fin Density

COOLER

1шт.

25

47373882

Charge Air Cooler, Low Fin Density, Optional

SERVICE KIT

1шт.

Not Factory Option, Only Available Through Service Parts

1шт.

26

84551467

CABLE TIE,381mm L

2шт.

27

84552108

INSULATION,706.50mm L x 104.50mm W x 22mm Thk

1шт.

28

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

2шт.

29

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

4шт.

30

86624194

HOSE CLAMP,1.81” - 2.75”, Worm Gear

1шт.

31

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

1шт.

32

87301277

BOLT,M12 x 71.8mm, Cl 10.9

2шт.

33

87406949

FILLER CAP

Radiator

1шт.

34

87626729

SPACER,12.8mm ID x 25.4mm OD x 25.4mm L

Hinge Pivot

2шт.

35

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

Cut to 3.9ft

1шт.

36

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

2шт.

Выбрано товаров: 43
