Запчасти Case IH SV300 (10.304.AF) - REMOTE ENGINE OIL LINES (OLD STYLE) (10) - ENGINE

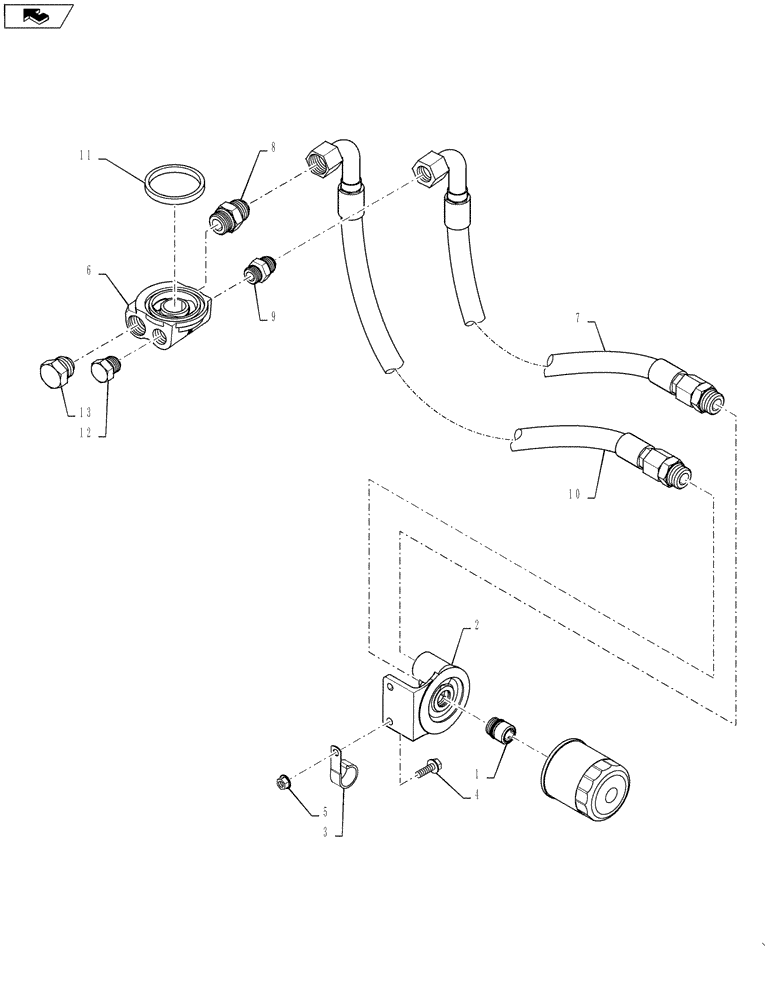

Схема запчастей Case IH SV300 - (10.304.AF) - REMOTE ENGINE OIL LINES (OLD STYLE) (10) - ENGINE
6
1
5
9
3
4
home
12
7
13
8
11
2
10

Артикул

Название

Примечание

Количество

*

Please Refer to the Engine for Oil Filter

1шт.

1

84297794

ADAPTER

Filter Head, F5C Engine

1шт.

2

84296830

ADAPTER

Oil Filter

1шт.

3

87313351

CLIP,25.4mm, Coat, 8.7mm Bolt Hole, J Type

J, 25.4mm

1шт.

4

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

6

84296854

ADAPTER

Oil Filter, F5C

1шт.

7

84269293

Remote Oil Filter

HYDRAULIC HOSE,15.88mm ID x 1300mm L

1шт.

8

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

2шт.

9

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

2шт.

10

84305911

Remote Oil Filter

HYDRAULIC HOSE,15.88mm ID x 1300mm L

1шт.

11

84303971

SEALING RING,62.5mm ID x 72mm OD x 8mm Thk

Ring

1шт.

12

86512512

PLUG,7/8" - 14 ORB

1шт.

13

163410

PLUG,1-1/16" - 12 ORB

1шт.

14

84353803

TRIM,30.48m Bulk

290 mm; Not Shown

1шт.

Выбрано товаров: 15
