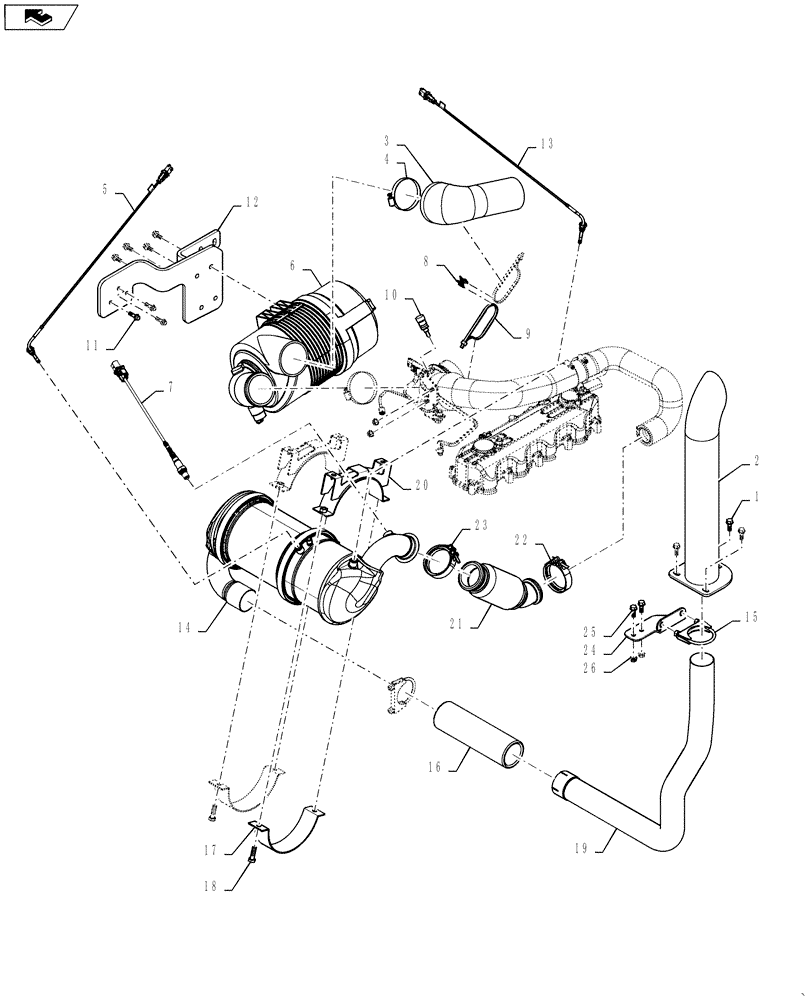

Запчасти Case IH SV300 (10.254.03[01]) - INTAKE AND EXHAUST TIER 4 (10) - ENGINE

1

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

7шт.

2

84495949

EXTENSION

1шт.

3

84531287

HOSE

Inlet Extension

1шт.

4

381144

HOSE CLAMP,84.1mm - 107.9mm, Worm Gear

2шт.

5

87482353

SENSOR

Exhaust Temperature, Years: -30-AUG-13

1шт.

5

47428730

Exhaust Temperature, Start Year: 01-SEP-13

SENSOR

1шт.

6

84530899

AIR CLEANER

Air Cleaner Assy

1шт.

See 10.202.AB For Breakdown

1шт.

7

84286040

SENSOR

1шт.

8

84318895

SPACER,17.97mm H

Swivel Tie Base

1шт.

9

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

10

84539252

SENSOR

Air Temperature

1шт.

11

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

3шт.

12

84586138

BRACKET

Air Cleaner Mounting

1шт.

13

84394768

SENSOR

1шт.

14

84419021

Incl DOC And DPF Filter

MUFFLER

1шт.

15

87461995

CLAMP,68mm ID, Muffler

Muffler

2шт.

16

84495805

Wrap

INSULATION,260mm x 335mm

1шт.

17

84428318

DPF

CLAMP

2шт.

18

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

4шт.

19

84535644

Tailpipe

EXHAUST SYSTEM PIPE

1шт.

20

84280294

DPF

CLAMP

2шт.

21

84377118

Air Intake

TUBE

1шт.

22

84409146

PIPE CLAMP,63.5mm - 70mm

Exhaust

1шт.

23

A170467

CLAMP,72mm ID

1шт.

24

84548462

Tailpipe Extension Hanger

MOUNT

1шт.

25

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

26

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.
