Запчасти Case IH SV300 (90.105.CU[03]) - ENGINE SOUND ACCOUSTICS CAB NA (90) - PLATFORM, CAB, BODYWORK AND DECALS

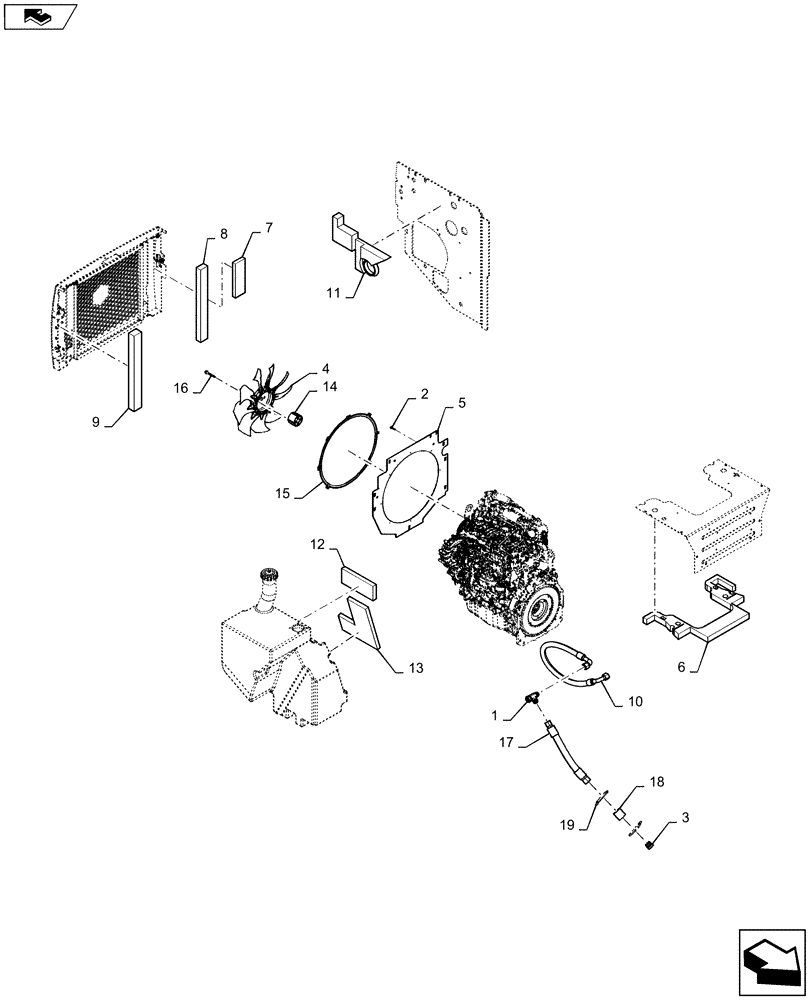

Схема запчастей Case IH SV300 - (90.105.CU[03]) - ENGINE SOUND ACCOUSTICS CAB NA (90) - PLATFORM, CAB, BODYWORK AND DECALS
19
9
3
16
2
4
5
17
11
14
18
home
10
8
15
6
12
1
13
7

Артикул

Название

Примечание

Количество

1

265978

TEE,1-1/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

2

281050

SELF-TAP SCREW,#10-24 x 15.44mm OAL

8шт.

2

87308841

RIVET,Pop, 3.97mm OD x 10.79mm L

, Start Year: 28-APR-14

8шт.

3

9790527

PLUG,1-5/16" - 12 JIC

1шт.

4

47383489

CIRCULAR BRUSH,566mm ID x 595mm OD x 3mm Thk

1шт.

5

47391841

FOAM INSULATION

Rear Door

1шт.

6

47488901

Clockwise Pusher

FAN,9 Blades, 560mm OD

1шт.

7

47519892

Shroud Fan Front

PLATE

1шт.

8

84366329

Chassis LH

FOAM INSULATION,40.5mm W x 118.3mm OAL x 50mm Thick

2шт.

9

84366352

Heal Plate Vertical

FOAM INSULATION

1шт.

10

84372973

FOAM INSULATION,264.4mm L x 87.2mm W x 25.4mm Thk

Fan, LH

2шт.

11

84372981

FOAM INSULATION

Fan

1шт.

12

84372988

FOAM INSULATION,584.4mm L x 67.5mm W x 50.8mm Thk

Fan, RH

1шт.

13

84373345

SPACER

1шт.

14

84383953

HOSE ASSY.

Valve Supply

1шт.

15

84481916

LH Tower Rear, Years: -16-JUL-17

FOAM INSULATION

1шт.

15

48119605

LH Tower Rear, Start Year: 17-JUL-17

FOAM INSULATION

1шт.

16

84481987

Fuel Tank

FOAM INSULATION,280mm L x 111.9mm W x 30mm Thk

2шт.

17

84482003

Fuel Tank

FOAM INSULATION

1шт.

18

86011090

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

4шт.

19

87351645

HOSE ASSY.,417mm L

Resonator

1шт.

20

87595771

ISOLATOR,200mm L x 50mm W x 3.2mm Thk

1шт.

21

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

22

84372986

Hood Top, LH, Years: -08-JAN-17

FOAM INSULATION

1шт.

22

84366326

FOAM INSULATION

Hood Top, LH, Start Year: 09-JAN-17

1шт.

23

84372987

Hood Top, RH, Years: -08-JAN-17

FOAM INSULATION

1шт.

23

84366329

Hood Top, RH, Start Year: 09-JAN-17

FOAM INSULATION,40.5mm W x 118.3mm OAL x 50mm Thick

1шт.

24

435308A1

DECAL

Sound Level, LWA 102, L230

1шт.

24

86836504

DECAL

Sound Level, LWA 104, C238

1шт.

25

47391838

FOAM INSULATION

Tower RH

1шт.

26

47391839

FOAM INSULATION

Tower RH

1шт.

27

47391840

FOAM INSULATION

Tower LH

1шт.

28

84372977

Tower RH

FOAM INSULATION

1шт.

29

84372982

FOAM INSULATION

Tower RH

1шт.

30

84372983

FOAM INSULATION

Tower LH

1шт.

31

84372040

FOAM

Seat Pan

1шт.

Выбрано товаров: 36
