Запчасти Case IH SV300 (88.120.02) - FUSE, COVER (ALL CASE) (88) - ACCESSORIES

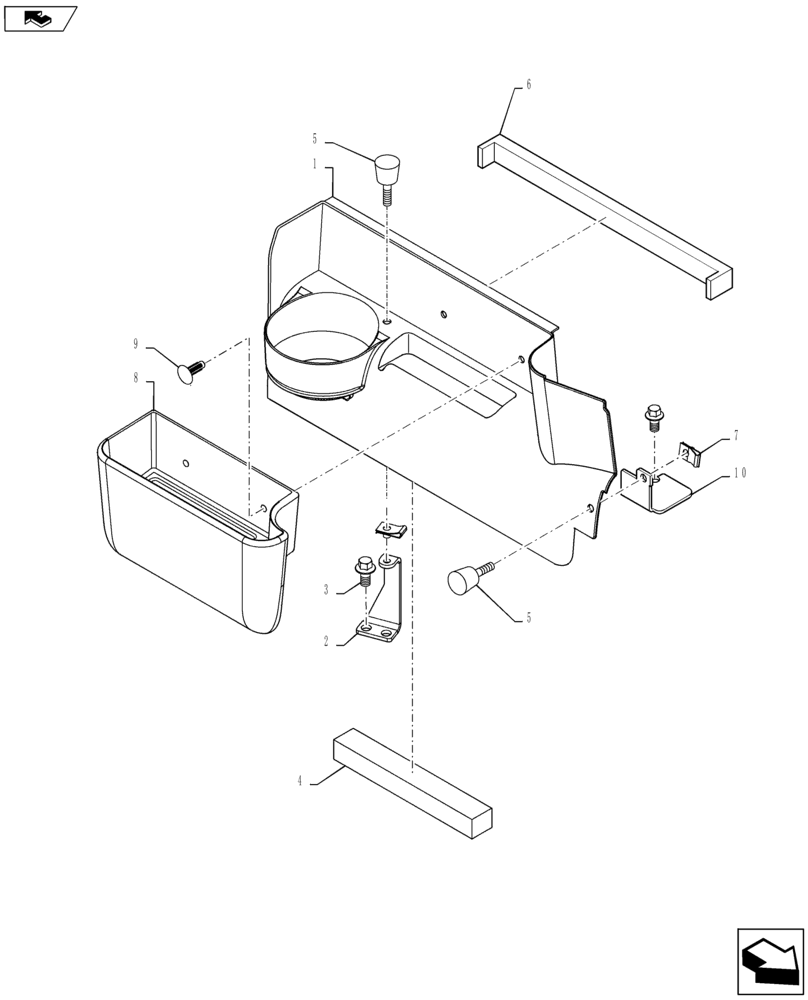

Схема запчастей Case IH SV300 - (88.120.02) - FUSE, COVER (ALL CASE) (88) - ACCESSORIES
2
10
5
7
home
6
1
8
9
3
4
5

Артикул

Название

Примечание

Количество

1

84301222

Fuse Cover, Large Chassis

ACCESS COVER

1шт.

2

84481035

Fuse Cover, Gray

BRACKET

1шт.

3

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

2шт.

4

84282686

Fuse Cover

FOAM INSULATION

1шт.

5

273890

THUMB SCREW,#10 - 32 x 3/4"

Thumb Screw

2шт.

6

86508457

PAD

Foam Console, .97 ft.

1шт.

7

87301324

NUT,Spring, M5 x 0.8

2шт.

8

84362695

BASKET

1шт.

9

87712706

FASTENER,16mm L, Nylon

Push In, Black

2шт.

10

84379555

Fuse Cover

BRACKET

1шт.

Выбрано товаров: 10
