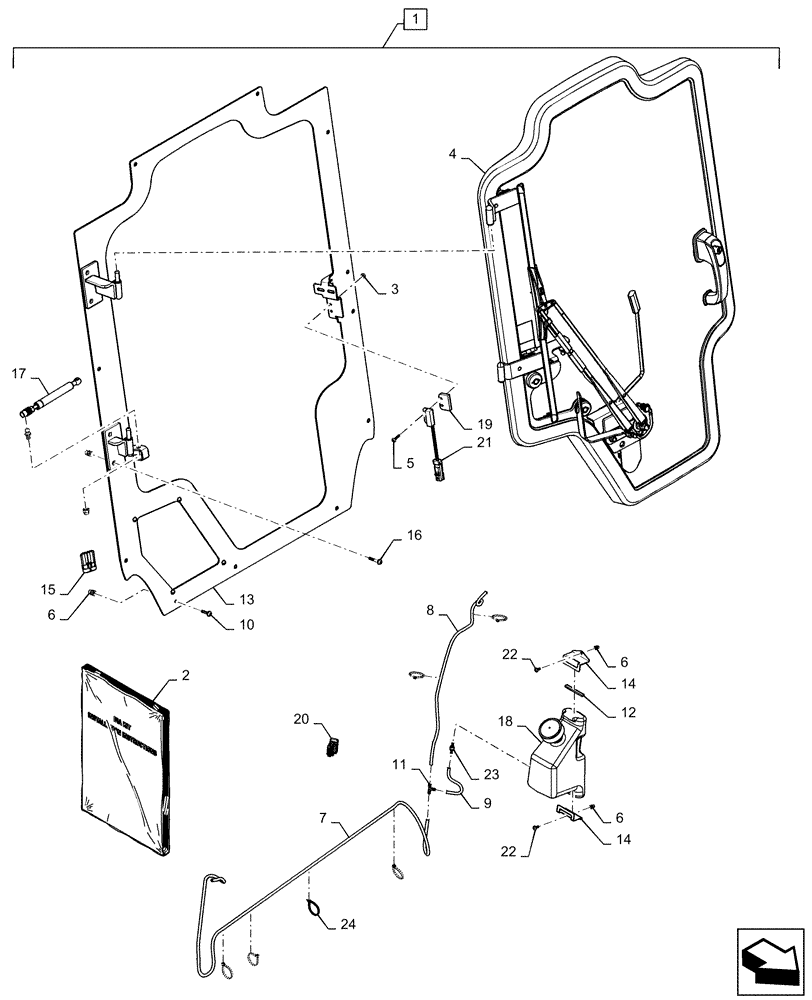

Запчасти Case IH SV300 (88.090.03) - DIA KIT, DEMO FRONT DOOR (ALL CASE) (88) - ACCESSORIES

1

47547138

KIT

Demo Door, Incl 2 - 24

1шт.

2

47547139

INSTRUCTION

Sheet, Glass Front Door

1шт.

3

100012

NUT,M4 x 0.7, Cl 8

2шт.

4

47405927

Assembly, Front Demo

DOOR

1шт.

5

84183818

SCREW,Torx Pan HD, M4 x 23.1mm, Cl 4.8

2шт.

6

84272827

RIVET,Flat Flg Head, 12.7mm OD x 17.4mm L

17шт.

7

84281703

HOSE WASHER,4mm ID x 1650mm L, SAE J1037

Front, Windshield

1шт.

8

84285452

HOSE WASHER,4mm ID x 672mm L, SAE J1037

Rear, Windshield

1шт.

9

84285453

Bottle

HOSE WASHER

2шт.

10

84305556

SCREW,Round HD, M6 x 1 x 25mm, Cl 10.9

11шт.

11

84306335

TEE

Fitting, Hose, Barbed Connector

1шт.

12

84322854

190mm, Strip, Sealing

FOAM INSULATION,684mm L x 6mm W x 3mm Thk

1шт.

13

47491441

DOOR

Assembly, Jamb

1шт.

14

84326923

BRACKET

Washer Bottle, CE Gray

2шт.

15

84331404

WIRE CONNECTOR

Jumper, Bypass

1шт.

16

84359102

SCREW,Round HD, M6 x 35mm, Cl 10.9

4шт.

17

84378453

GAS STRUT,248mm L Extended, 171mm Compressed

Spring

1шт.

18

84389613

BOTTLE

Assembly, Windshield Washer

1шт.

19

86624468

SPACER,1.65" L x 5/16” Thk

Switch

1шт.

20

87335499

SWITCH

Rocker, Windshield Wiper/Washer

1шт.

21

87392235

SENSOR

Reed Non Contact Normally Open

1шт.

22

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

2шт.

23

K307050

VALVE

Non - Return

1шт.

24

L11541

CABLE TIE,203.2mm L, Nylon

7шт.
