Запчасти Case IH SV300 (88.035.04) - DIA KIT, HIGH FLOW AUX - LG VERT (SV300,TV380) (88) - ACCESSORIES

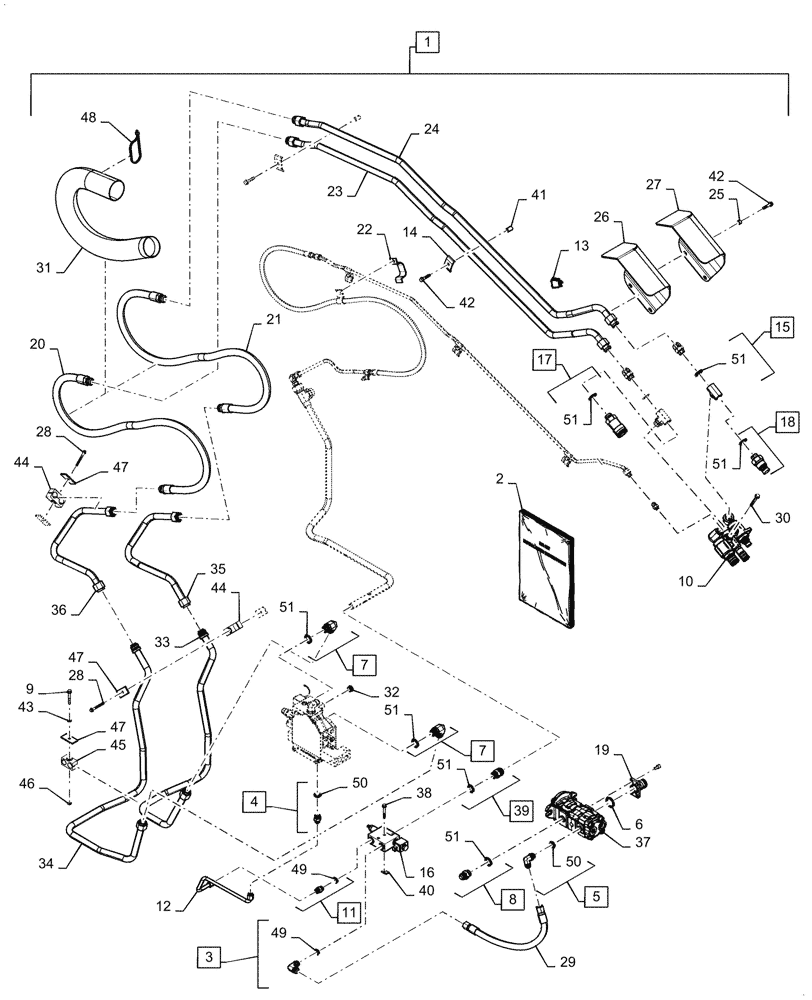

Схема запчастей Case IH SV300 - (88.035.04) - DIA KIT, HIGH FLOW AUX - LG VERT (SV300,TV380) (88) - ACCESSORIES
13
50
24
4
44
51
18
28
5
36
26
51
33
9
28
47
45
19
51
21
15
49
6
44
41
49
22
47
51
30
43
20
47
14
25
39
51
38
51
1
27
23
37
51
32
48
2
16
50
12
7
11
8
17
31
3
42
10
40
42
35
46
34
29
7

Артикул

Название

Примечание

Количество

1

47630771

DIA, High Flow Aux, LG Vert, Incl 2 - 51

KIT

1шт.

2

47630778

Sheet

INSTRUCTION

1шт.

3

86527

90 ELBOW,7/8" - 14 JIC x 3/4" - 16 ORB

Incl 49

1шт.

4

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

Incl 50

1шт.

5

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

Incl 50

1шт.

6

274754

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

1шт.

7

286217

90 ELBOW,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 51

2шт.

8

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 51

1шт.

9

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

10

47447054

VALVE

High Flow CUP Manifold

1шт.

11

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 49

1шт.

12

84186155

12.7mm OD, High Flow Valve to LDR Valve

TUBE

1шт.

13

84251427

SWITCH

Rocker, High Flow

1шт.

14

84254045

CLAMP,66mm L

66mm L, Tube

2шт.

15

84255994

FITTING,Male - 12 ORB x Fem - 12 ORB x Fem - 12 ORB

Incl 51

2шт.

16

84256405

HYDRAULIC VALVE

High Flow Combiner

1шт.

17

84257182

COUPLING, QUICK, FEM,5/8" x -12 ORB

Incl 51

1шт.

18

84257183

QUICK MALE COUPLING,5/8" x -12 ORB

Incl 51

1шт.

19

84269151

FITTING

Gear Pump Suction

1шт.

20

84281606

FLEXIBLE HOSE,19.05mm ID x 1835mm L, SAE 100R17

High Flow

1шт.

21

84281607

FLEXIBLE HOSE,19.05mm ID x 1875mm L, SAE 100R17

High Flow

1шт.

22

84282424

HOSE CLAMP

-12, Double

1шт.

23

84297610

RIGID TUBE

2010.38mm L, High Flow

1шт.

24

84297613

RIGID TUBE

1968.33mm L, High Flow

1шт.

25

84306875

SPACER,11.1mm ID x 15.9mm OD x 9.5mm L

1шт.

26

84306937

COVER PLATE

Hydraulic, Tan

1шт.

27

84306939

COVER

Hydraulic, Gray

1шт.

28

84323488

SELF-TAP SCREW,Hex Flg, M8 x 70mm

2шт.

29

84329004

HOSE,15.88mm ID x 586mm L, SAE 100R17

Assy, High Flow, Supply

1шт.

30

84331287

SCREW,HWH, 3/8" - 16 x 3"

2шт.

31

84362111

GUARD,85mm ID x 90mm OD x 1070mm L

1шт.

32

84373460

PLUG,23.8mm OD

23.8mm OD, Load Check

1шт.

33

84377512

TUBE

25.4mm OD, Assy, Aux High Flow, LDR Valve to LFT Tower

1шт.

34

84377514

TUBE

25.4mm OD, Assy, Aux High Flow, LDR Valve to LFT Tower

1шт.

35

84377928

HYD TUBE

25.4mm OD, Assy, Aux, High Flow LH Tower

1шт.

36

84377931

HYD TUBE

25.4mm OD, Assy, Aux, High Flow LH Tower

1шт.

37

84572270

PUMP,36.6 CC

1шт.

38

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

39

86512926

HYD CONNECTOR,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 51

3шт.

40

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

2шт.

41

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

2шт.

42

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

4шт.

43

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

44

1546028C1

CLAMP,25.4mm ID x 82mm L

Twin Tube

2шт.

45

225529A1

CLAMP,Dual, 25.4mm ID

Tube

1шт.

46

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

1шт.

47

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

5шт.

48

L18331

CABLE TIE,375.9mm L, Nylon, Black

Nylon

1шт.

49

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

50

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

51

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

10шт.

Выбрано товаров: 51
