Запчасти Case IH SV300 (55.101.01) - ENGINE ELECTRICAL (SV300,TV380) (55) - ELECTRICAL SYSTEMS

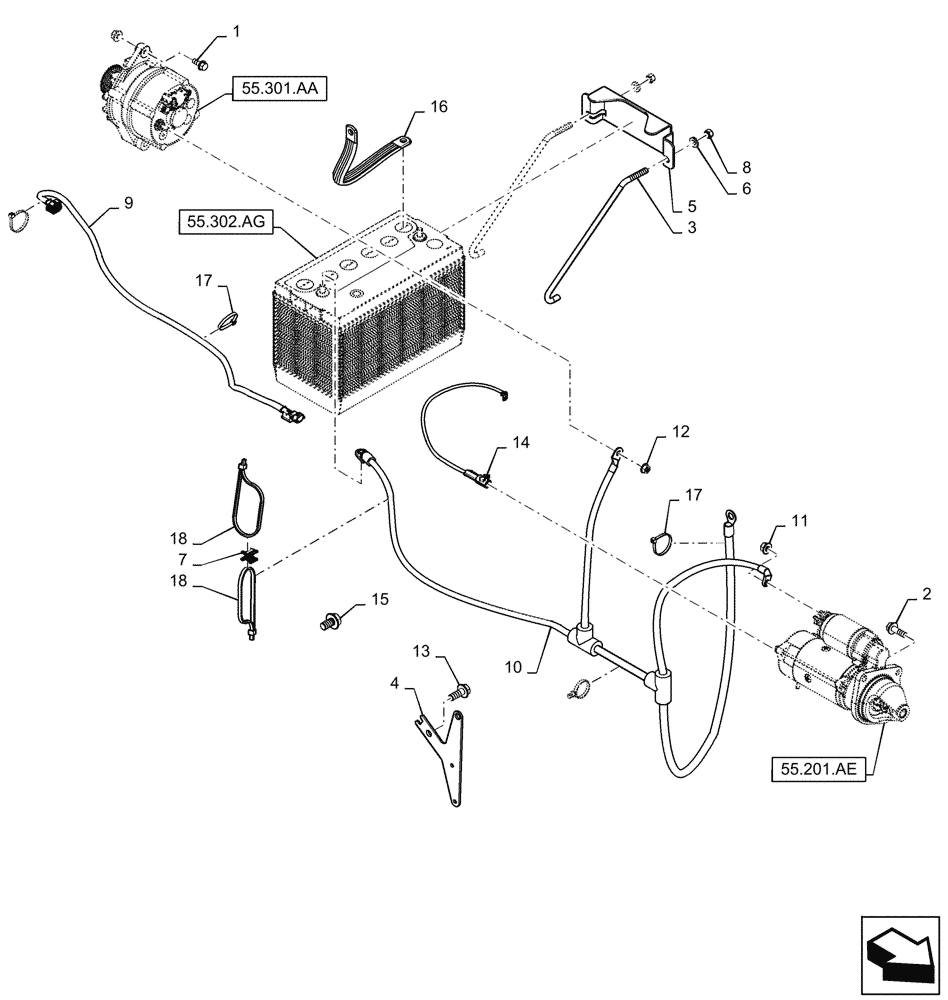

Схема запчастей Case IH SV300 - (55.101.01) - ENGINE ELECTRICAL (SV300,TV380) (55) - ELECTRICAL SYSTEMS
55.301.aa
13
5
15
11
12
18
4
17
6
16
14
8
18
3
9
10
7
1
17
2
55.201.ae
55.302.ag

Артикул

Название

Примечание

Количество

1

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

2

9804262

BOLT,M10 x 39.2mm, Cl 8.8

3шт.

3

47505880

HOOK

Battery

2шт.

4

47529570

Battery Cable, Years: -30-NOV-14

BRACKET

1шт.

4

47727176

BRACKET

Battery Cable, Start Year: 01-DEC-14

1шт.

5

84420303

STRAP

Ground

1шт.

6

86624144

WASHER,0.41" ID x 0.75" OD x 0.12" Thk

2шт.

7

84318895

SPACER,17.97mm H

Swivel Tie Base

1шт.

8

86625064

NUT,Prev Torque, 3/8" - 16, Gr B

2шт.

9

84529949

WIRE HARNESS

Fuel Filter Jumper

1шт.

10

84605006

4 Ended, Years: -30-NOV-14

POS BATTERY CABLE

1шт.

10

47800584

POS BATTERY CABLE

4 Ended, Start Year: 01-DEC-14

1шт.

11

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

12

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1шт.

13

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

1шт.

14

87053083

HARNESS

Starter Jumper

1шт.

15

87698844

BOLT,Hex, M12 x 1.75 x 20mm, Full Thd, Cl 10.9

1шт.

16

D140369

GROUND STRAP,260mm L

Ground

1шт.

17

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

18

L18331

CABLE TIE,375.9mm L, Nylon, Black

15" OAL

2шт.

Выбрано товаров: 20
