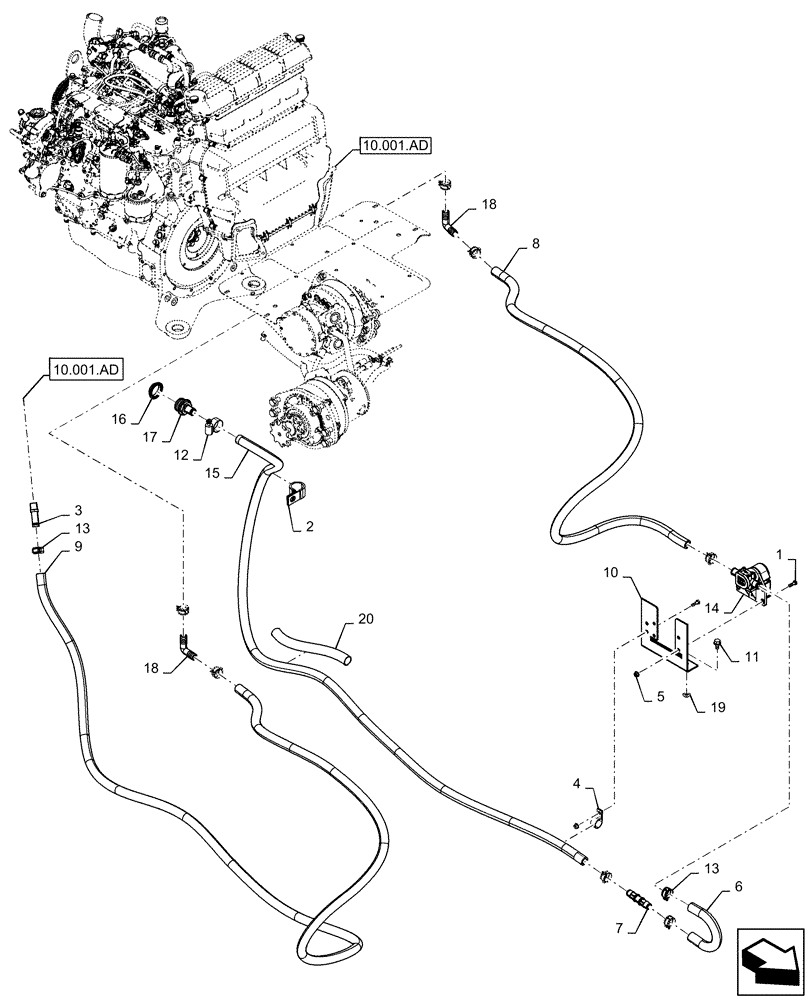

Запчасти Case IH SV300 (50.200.03[02]) - HEATER PLUMBING BASIC (ALL CASE) (50) - CAB CLIMATE CONTROL

1

120100

BOLT,M6 x 20mm, Cl 8.8

5шт.

2

619284

CLAMP,23.8mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

3

642560

FITTING,5/8" Hose x 3/8" NPTF Beaded

1шт.

4

700514

CLAMP,3.8mm, Coat, M8 Bolt

Cable

1шт.

5

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

5шт.

6

47627999

HEATER HOSE,15.5mm ID, Formed

15.5mm ID, Formed

1шт.

7

47707866

FITTING,5/8” Hose Barb Union

Hose, 5/8" Union

1шт.

8

84357678

HOSE,15.5mm ID x 1635mm L

Heater Supply, Guarded

1шт.

9

84360991

HOSE ASSY.,15.5mm ID x 3124mm L

3124mm L, Heater Return, Guarded

1шт.

10

84559122

BRACKET

Water Valve and Dryer

1шт.

11

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

12

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

1шт.

13

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

9шт.

14

87520839

VALVE

2 Ports, Water Assy

1шт.

14

84245940

VALVE

3 Ports, Water Assy

1шт.

15

87567192

HEATER HOSE,5/8” Bulk Roll 500 FT, Return

2100mm L, Heater Supply

1шт.

16

99469380

GASKET,33mm ID x 45mm OD x 2.8mm Thk

Only if Gasket is Needed

1шт.

Remove plug from cylinder head. Reuse gasket (if possible). Remove from plug and install on fitting. Torque to 35 - 45 Nm (25.8 - 33.2 FT-LB)

1шт.

17

504249332

FITTING,M35 x 1.5, 18mm

Heater Hose

1шт.

18

127083A1

ELBOW,16mm OD x 17mm OD Bead

Heater Hose

2шт.

19

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

20

87441006

TUBE,4.6mm ID x 1350mm L

Guard Hose

1шт.
