Запчасти Case IH SV300 (39.100.01) - CHASSIS HOODS AND COVERS (SV300) (39) - FRAMES AND BALLASTING

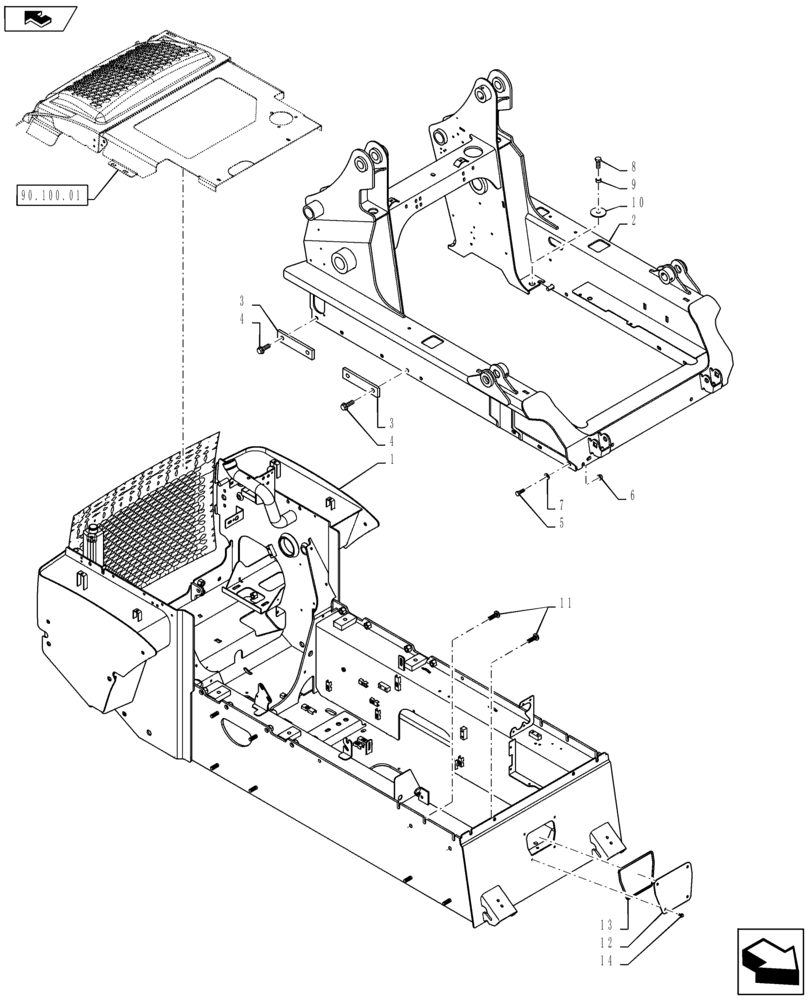

Схема запчастей Case IH SV300 - (39.100.01) - CHASSIS HOODS AND COVERS (SV300) (39) - FRAMES AND BALLASTING
4
5
8
2
home
14
4
13
6
3
11
9
7
12
90.100.01
3
1
10

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Chassis

1шт.

2

84285501

DRAWBAR FRAME

1шт.

3

84329193

Clamping

BAR

4шт.

4

87698849

BOLT,M16 x 50mm, Cl 10.9

Flange, M16x50

8шт.

5

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

10шт.

6

86512497

FLANGE NUT,M12 x 1.75, Cl 10

10шт.

7

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

10шт.

8

374835

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

9

87305411

SPACER,16.69mm ID x 22.23mm OD x 10.31mm Thk

4шт.

10

87687021

WASHER,17.3mm ID x 70mm OD x 4.5mm Thk

Washer 70mm OD

4шт.

11

84162937

STUD,M16 x 50mm, Cl 9.8

M16 X 50, Chassis

32шт.

12

84322838

PLATE

Cover

1шт.

13

84322854

Sealing Strip; 891mm

FOAM INSULATION,684mm L x 6mm W x 3mm Thk

1шт.

14

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

4шт.

Выбрано товаров: 14
