Запчасти Case IH SV300 (35.220.01[04]) - AUXILIARY HYDRAULIC, STD FLOW, CONNECT UNDER PRESSURE, ARM PLUMBING (SV300,TV380) (35) - HYDRAULIC SYSTEMS

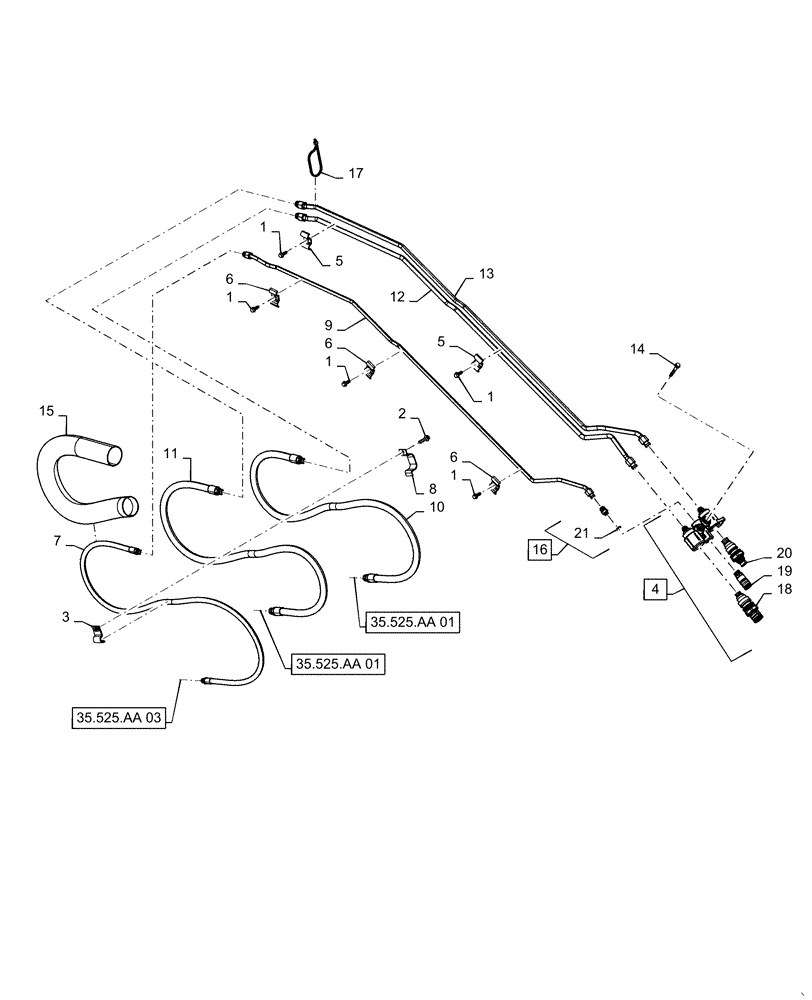

Схема запчастей Case IH SV300 - (35.220.01[04]) - AUXILIARY HYDRAULIC, STD FLOW, CONNECT UNDER PRESSURE, ARM PLUMBING (SV300,TV380) (35) - HYDRAULIC SYSTEMS
35.525.aa 01
11
1
2
15
13
14
6
21
1
17
5
1
1
3
20
19
18
1
8
16
10
6
4
9
7
12
6
5
35.525.aa 01
35.525.aa 03

Артикул

Название

Примечание

Количество

1

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

5шт.

2

9804263

BOLT,M10 x 49.2mm, Cl 8.8

1шт.

3

47374617

CLAMP,18mm ID, 12.5mm Bolt Hole, J Type

1шт.

4

47396759

VALVE

Connect Under Pressure, Incl 18 - 20

1шт.

5

84252828

CLAMP,65.2mm L

65.2mm L, Butterfly Tube

2шт.

6

84254056

HOSE CLAMP,69.2mm L

69.2mm L, Butterfly Tube

3шт.

7

84281611

FLEXIBLE HOSE,10mm ID x 2085mm L, SAE 100R17

2085mm L, Case Drain

1шт.

8

84285091

HOSE CLAMP

-10 Double

1шт.

9

84297619

RIGID TUBE

12.7mm OD, Case Drain

1шт.

10

84304099

FLEXIBLE HOSE,15.88mm ID x 1905mm L, SAE 100R17

Aux

1шт.

11

84304100

FLEXIBLE HOSE,15.88mm ID x 1935mm L, SAE 100R17

Aux

1шт.

12

84304103

RIGID TUBE

15.88mm OD x 1958.8mm L

1шт.

13

84304105

RIGID TUBE

15.88mm OD x 1936.4mm L

1шт.

14

84331287

SCREW,HWH, 3/8" - 16 x 3"

2шт.

15

84362110

SLEEVE,73mm ID x 78mm OD x 1070mm L

Guard, Hose

1шт.

16

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Incl 21

1шт.

17

L18331

CABLE TIE,375.9mm L, Nylon, Black

Nylon

1шт.

18

47396761

COUPLING,1/2" Female

1шт.

19

47396762

COUPLING,3/8" Female

1шт.

20

47396760

COUPLING,1/2" Male

1шт.

21

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 21
