Запчасти Case IH SV300 (29.212.07) - PUMP, HYDROSTATIC EH 45CC A20VG (SR250,SV300) (29) - HYDROSTATIC DRIVE

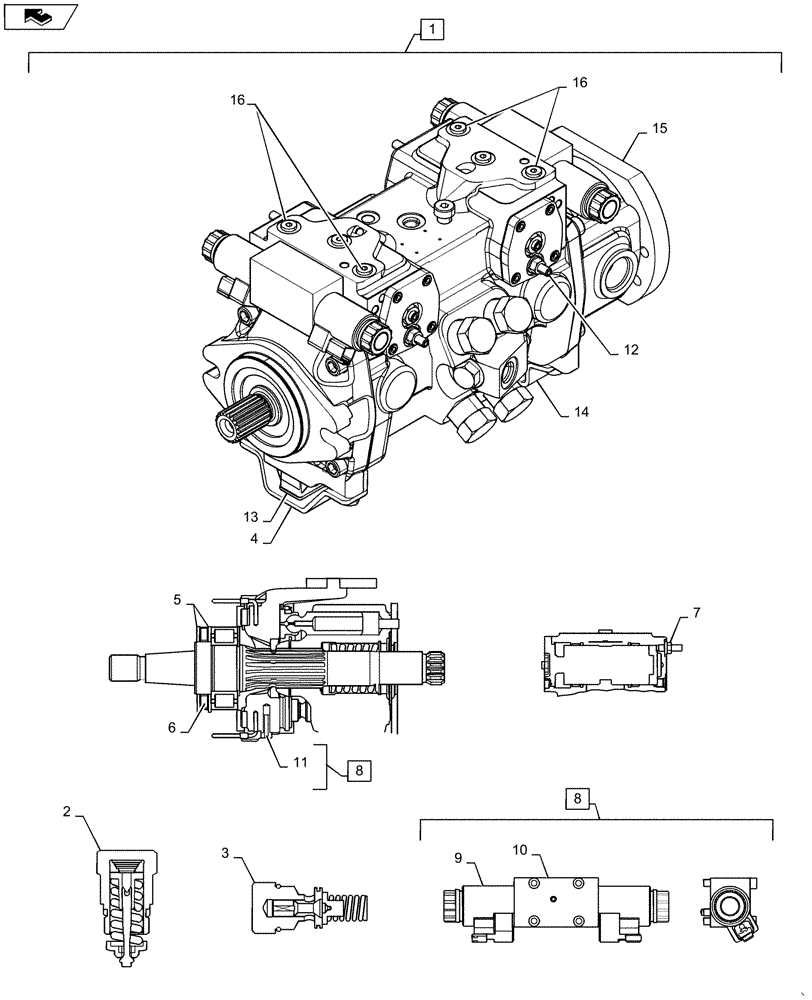

Схема запчастей Case IH SV300 - (29.212.07) - PUMP, HYDROSTATIC EH 45CC A20VG (SR250,SV300) (29) - HYDROSTATIC DRIVE

Артикул

Название

Примечание

Количество

1

84565753

Tandem, 45CC, E-H Controls, Incl 2 - 16

HYDRAULIC PUMP,45 CC

1шт.

1

84565753R

Tandem, 45CC, E-H Controls, Incl 2 - 16

REMAN-HYD PUMP

1шт.

1

84565753C

Return Number

CORE-HYDRAULIC PUMP

1шт.

1

47374657

Tandem, 45CC, A22VG ET S40, E-H Controls, Incl 2 - 16, Start Year: 01-JUL-13

HYDROSTATIC PUMP,45 CC

1шт.

1

47374657R

Tandem, 45CC, A22VG ET S40, E-H Controls, Incl 2 - 16, Start Year: 01-JUL-13

REMAN-HYDROSTAT PUMP

1шт.

1

47374657C

Return Number

CORE-HYDROSTAT PUMP

1шт.

2

87614031

VALVE PRESSURE RELIE

High, 360 Bar

4шт.

3

84540764

VALVE PRESSURE RELIE

Charge Pressure, 25 Bar

1шт.

4

84389781

SHIELD

Front Angle Sensor

2шт.

5

84389755

SEAL

V-Ring

2шт.

6

84389757

SEAL

Shaft

1шт.

7

84389758

NUT

Seal Lock

4шт.

8

84389759

MODULE

Control, Complete, Incl 9 - 11

1шт.

9

84389760

COIL

Proportional Solenoid

4шт.

10

84389762

Control, Without Coils

MODULE

1шт.

11

84389763

GASKET

Mounting, Control Module

1шт.

12

87627399

CAP

Service

4шт.

13

84356794

SENSOR

Angle

1шт.

14

84389782

Rear Angle Sensor

SHIELD

1шт.

15

9828498

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

Mounting O-Ring

1шт.

16

84569334

ORIFICE,M6, 1mm ID

4шт.

Выбрано товаров: 21
