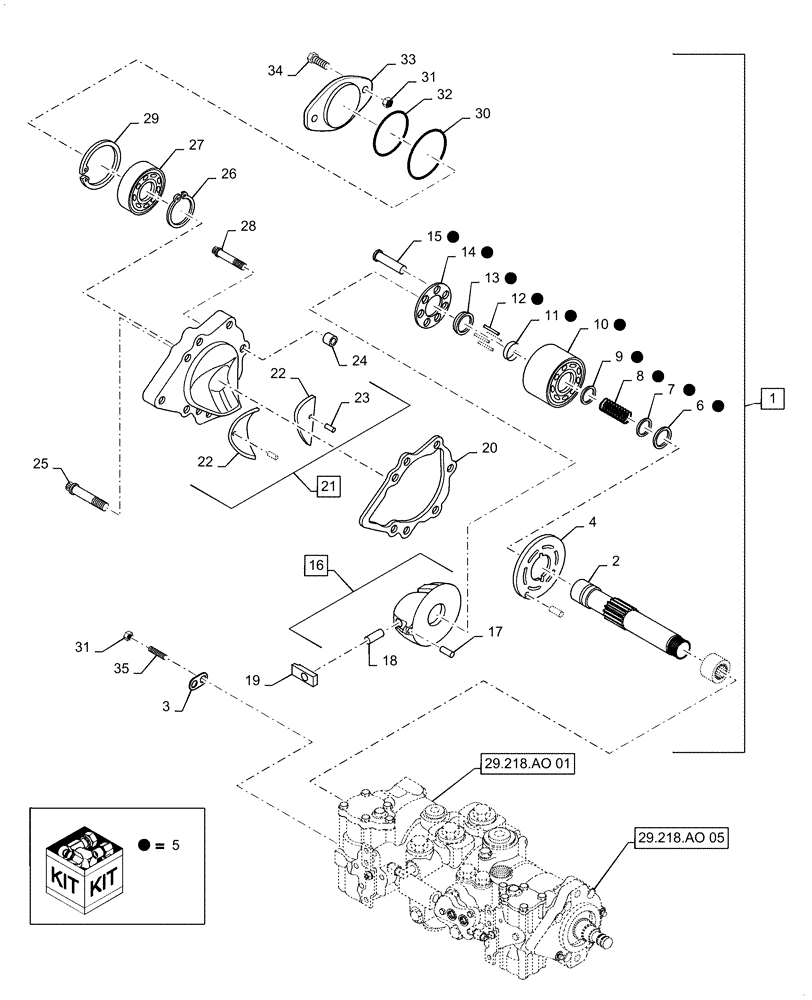

Запчасти Case IH SV300 (29.212.06[04]) - PUMP, HYDROSTATIC TANDEM 46CC MDC REAR, BUSHED (SR250,SV300,TR320,TV380) (29) - HYDROSTATIC DRIVE

1

84262356

PUMP,Tandem, 46 CC

Tandem Hydrostatic, Incl 2 - 35

1шт.

2

87039623

SHAFT

Hydrostat, Rear Pump

1шт.

3

NSS

NOT SOLD SEPARAT

Bracket, Incl in 1

1шт.

4

128929A1

LARGE PLATE

Valve, LH

1шт.

5

87051278

HYD PUMP REPAIR KIT

Cylinder Block, Incl 6 - 15

1шт.

6

NSS

NOT SOLD SEPARAT

Retaining Ring, Incl in 1, 5

1шт.

7

115950A1

WASHER

Cylinder Block

1шт.

8

115948A1

SPRING

Cylinder Block

1шт.

9

115946A1

WASHER

Cylinder Block

1шт.

10

NSS

NOT SOLD SEPARAT

Cylinder Block, Incl in 1, 5

1шт.

11

115943A1

SNAP RING

Cylinder

1шт.

12

110873A1

PIN,2.38mm OD x 33.53mm L

Slipper Hold - Down

4шт.

13

115942A1

GUIDE

Retainer

1шт.

14

NSS

NOT SOLD SEPARAT

Slipper Guide, Incl in 1, 5

1шт.

15

NSS

NOT SOLD SEPARAT

Piston Assy, Incl in 1, 5

6шт.

16

87050523

PLATE ASSY.

Variable Swashplate, Incl 17, 18

1шт.

17

324610A1

PIN

Swashplate

1шт.

18

N13254

PIN

Swashplate

1шт.

19

N13224

SLEEVE

Bearing

1шт.

20

H436704

GASKET,0.79mm Thk

Front Cover

1шт.

21

87039624

COVER

Rear, Assy, Incl 22, 23

1шт.

22

193488A1

BEARING LINER

Journal

2шт.

23

193494A1

PIN, ROLL

Spring

2шт.

24

N13994

SPACER

Spring Pin

1шт.

25

223677A1

SCREW,Torx, 7/16"

Rear Cover

5шт.

26

100-11137

SNAP RING,#137, Ext

1шт.

27

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

1шт.

28

223680A1

SPECIAL BOLT,Torx, 3/8"

1шт.

29

F61018

SNAP RING,M73, Int

1шт.

30

NSS

NOT SOLD SEPARAT

Cover Plate O-Ring, Incl in 1

1шт.

31

425-108

NUT,1/2" - 13, Gr 5

3шт.

32

87013729

O-RING,0.07" Thk x 3.739" ID, -44, Cl 5, 75 Duro

1шт.

33

NSS

NOT SOLD SEPARAT

Cover Plate, Incl in 1

1шт.

34

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

35

K608432

STUD,1/2" - 13 x 4-1/2"

1шт.
