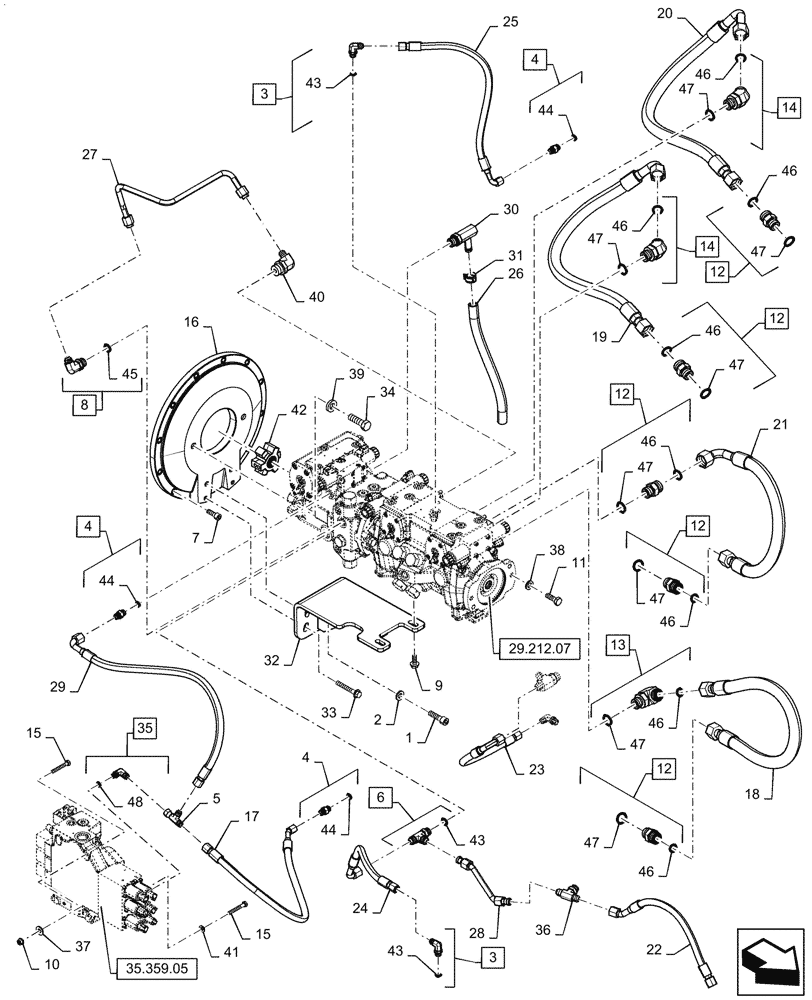

Запчасти Case IH SV300 (29.204.AB[05]) - Е-Н PUMP EHF, DRIVE LINES AND CONTROL VALVE (24-MAR-2015 & NEWER) (29) - HYDROSTATIC DRIVE

1

15734

SCREW,Hex Socket, 1/2" - 13 x 1-3/4"

2шт.

2

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

3

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 43

3шт.

4

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 44

3шт.

5

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

6

265808

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 ORB

Incl 43

1шт.

7

300442

HEX SOC SCREW,M10 x 30mm, Cl 8.8

10шт.

8

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

Incl 45

1шт.

9

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

10

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

11

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

2шт.

12

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 46, 47

5шт.

13

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

Incl 46, 47

1шт.

14

9846870

ELBOW,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 46, 47

2шт.

15

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

3шт.

16

47659211

Flywheel

COVER

1шт.

17

48019269

HYDRAULIC HOSE,10mm ID x 870mm L

EH Control to Brake

1шт.

18

84258846

Loop

FLEXIBLE HOSE,19.05mm ID x 835mm L, SAE 100R19

1шт.

19

84258849

Loop

FLEXIBLE HOSE,19.05mm ID x 821mm L, SAE 100R19

1шт.

20

84258850

Loop

FLEXIBLE HOSE,19.05mm ID x 846mm L, SAE 100R19

1шт.

21

84312282

Loop

FLEXIBLE HOSE,19.05mm ID x 621mm L, SAE 100R19

1шт.

22

84356607

Charge Supply

HYDRAULIC HOSE,9.53mm ID x 364mm L, SAE 100R17

1шт.

23

84356613

Charge Supply Brake

HYDRAULIC HOSE,9.53mm ID x 552mm L, SAE 100R17

1шт.

24

84356615

Charge Supply Loader Valve

HYDRAULIC HOSE,9.53mm ID x 402mm L, SAE 100R17

1шт.

25

84356618

NOR Pump to Brake

HYDRAULIC HOSE,9.53mm ID x 592mm L, SAE 100R17

1шт.

26

84356619

EHF Drain

HYDRAULIC HOSE,15.88mm ID x 335mm L

1шт.

27

84387079

EHF Pump Drain

HYD TUBE,12.7mm OD

1шт.

28

84419203

Charge P1 to P2

HYD TUBE,12.7mm OD

1шт.

29

84419205

Pump Interlock

HOSE ASSY.,9.53mm ID x 780.8mm L, SAE 100R1

1шт.

30

84473278

FITTING,7/8"-14 ORB x 15.88mm OD Bead x M10 x 1.0

1шт.

31

84549542

CLAMP,20.5mm - 24mm, Hose

2шт.

32

84549585

Pump Support

MOUNTING PLATE

1шт.

33

86011090

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

2шт.

34

86508732

BOLT,5/8"-11 x 2.391" Cl 8

2шт.

35

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl 48

1шт.

36

86513024

TEE,3/4" - 16 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

37

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

38

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

39

86637955

WASHER,0.66" ID x 1.25" OD x 0.24" Thk

2шт.

40

87329785

ELBOW,90 Degree, 1-1/16" - 12 ORB x 3/4" - 16 JIC

1шт.

41

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

42

87711337

COUPLING,19T, 1-1/8" ID

Drive Star

1шт.

43

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

44

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

45

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

46

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

47

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3шт.

48

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.
