Запчасти Case IH SV300 (10.400.BE) - COOLING SYSTEM ASSY. (10) - ENGINE

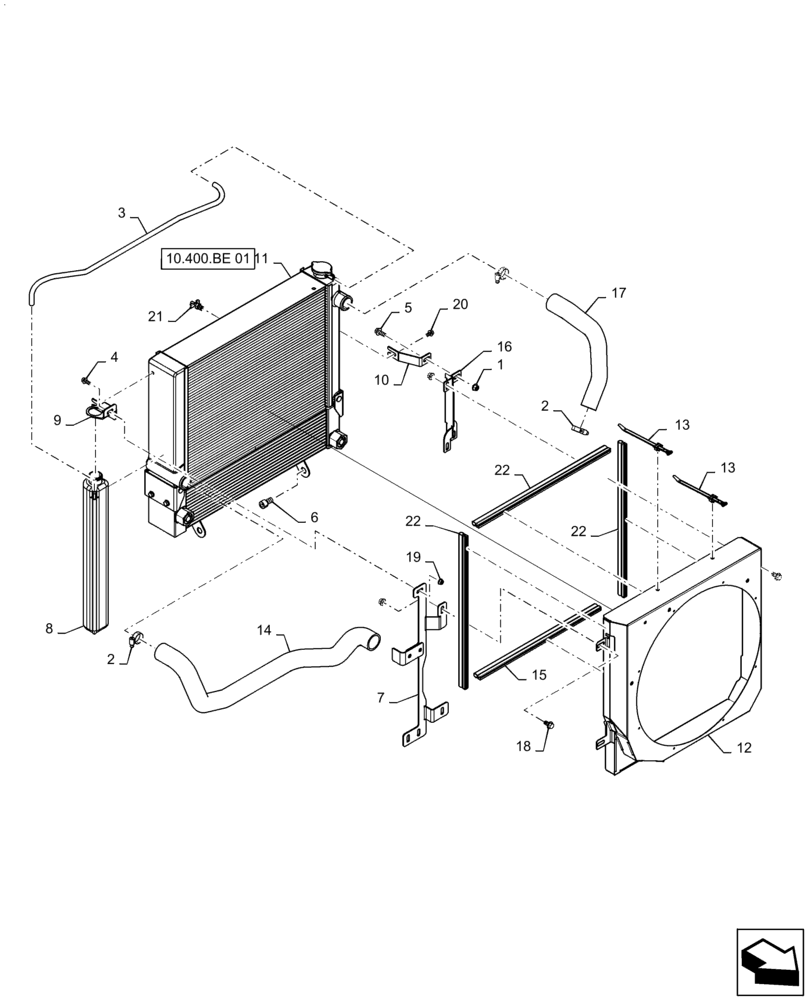

Схема запчастей Case IH SV300 - (10.400.BE) - COOLING SYSTEM ASSY. (10) - ENGINE
13
6
22
19
9
12
11
4
1
8
21
2
2
14
18
22
5
17
16
3
20
7
10
10.400.be 01
15
13
22

Артикул

Название

Примечание

Количество

1

43435

FLANGE NUT,Hex, M10 x 1.5

8шт.

2

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

4шт.

3

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

OAL 2.85'

1шт.

4

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

5

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

6

9837786

HEX SOC SCREW,M12 x 20mm, Cl 8.8, Full Thd

2шт.

7

47410491

Coolant Bottle Mounting

BRACKET

1шт.

8

87020980

BOTTLE,2L

Coolant Recovery, Years: -03-NOV-13

1шт.

8

47490003

BOTTLE

Coolant Recovery, Start Year: 04-NOV-13

1шт.

9

84254071

Upper Coolant Bottle Mounting, Years: -03-NOV-13

BRACKET

1шт.

9

47516026

Upper Coolant Bottle Mounting, Start Year: 04-NOV-13

BRACKET

1шт.

10

47516027

BRACKET

Radiator Mounting

1шт.

11

47740393

MODULE

Radiator & Oil Cooler W/ Cap

1шт.

12

47756790

518mm Fan

SHROUD

1шт.

13

84259663

CABLE TIE,228.6mm L, Nylon, Black

2шт.

14

84277824

HOSE,45mm ID, SAE 20R4

Coolant, Lower

1шт.

15

84406808

RUBBER SEAL,540mm L

1шт.

16

84552138

BRACKET

LH Fan Shroud

1шт.

17

84566384

HOSE

Coolant, Upper

1шт.

18

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

7шт.

19

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1шт.

20

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

21

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

Coolant

1шт.

22

48065259

RUBBER SEAL

Bulb

3шт.

Выбрано товаров: 24
