Запчасти Case IH SV300 (10.202.AD) - ENGINE, EXHAUST SYSTEM LRG V (SV250, SV300, TV380) (10) - ENGINE

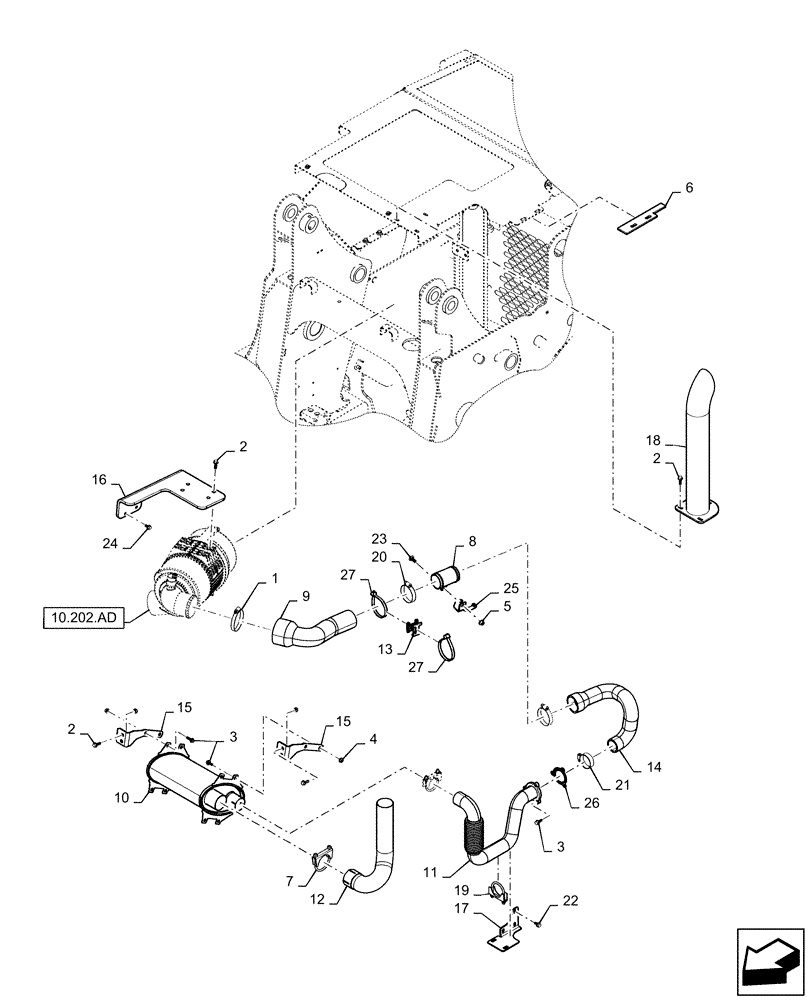

Схема запчастей Case IH SV300 - (10.202.AD) - ENGINE, EXHAUST SYSTEM LRG V (SV250, SV300, TV380) (10) - ENGINE
8
3
25
10
6
27
11
5
3
15
9
22
1
10.202.ad
2
14
20
17
4
19
12
18
24
2
21
13
26
23
2
15
27
16
7

Артикул

Название

Примечание

Количество

1

381144

HOSE CLAMP,84.1mm - 107.9mm, Worm Gear

1шт.

2

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

11шт.

3

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

7шт.

4

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

6

47370328

PLATE

Hood Spacer

1шт.

7

47541188

CLAMP,68mm ID, Muffler

Muffler To Tailpipe

1шт.

8

84198602

PIPE COUPLING,60mm OD x 93mm OAL

Air Cleaner To Muffler

1шт.

9

84270605

Air Cleaner to Turbo

INTAKE AIR HOSE

1шт.

10

84287182

Spark Arresting

MUFFLER

1шт.

11

84287189

AIR INTAKE TUBE

Exhaust, flexible

1шт.

12

84304715

AIR INTAKE TUBE

Exhaust, Tailpipe

1шт.

13

84318895

SPACER,17.97mm H

Swivel Tie Base

1шт.

14

84335246

Coupler To Turbo

TUBE

1шт.

15

84365609

MOUNTING PLATE

Muffler

4шт.

16

84372993

Air Cleaner, Vertical

BRACKET

1шт.

17

84414896

Exhaust Support

BRACKET

1шт.

18

84495949

EXTENSION

Exhaust Stack

1шт.

19

84588569

CLAMP,54mm ID, Muffler

2шт.

20

86050197

HOSE CLAMP,58.6mm - 82.5mm, Worm Gear

2шт.

21

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

1шт.

22

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

3шт.

23

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

1шт.

24

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

3шт.

25

87471945

BRACKET

Air Cleaner Coupler

1шт.

26

87611895

GASKET,0.4mm Thk

Turbo to Flexible Muffler Tube

1шт.

27

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

Выбрано товаров: 27
