Запчасти Case IH SV300 (35.730.01[01]) - HYDRAULIC LIFT CYLINDER, RH (SV300,TV380) AFTER JULY 31, 2013 (35) - HYDRAULIC SYSTEMS

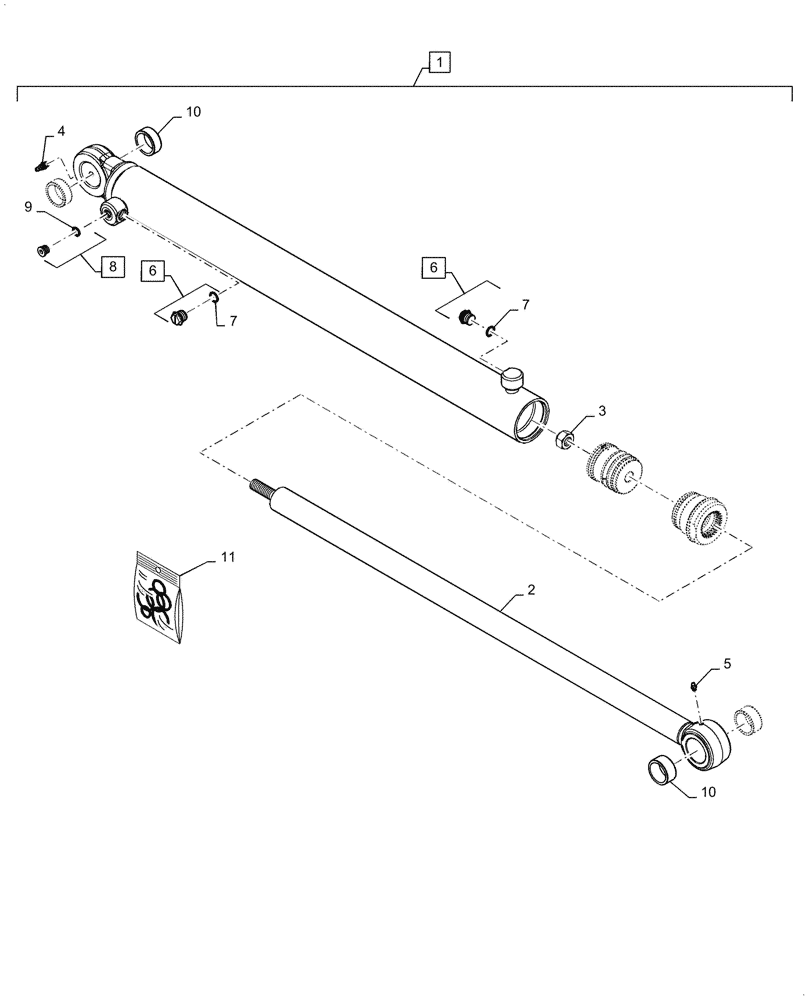

Схема запчастей Case IH SV300 - (35.730.01[01]) - HYDRAULIC LIFT CYLINDER, RH (SV300,TV380) AFTER JULY 31, 2013 (35) - HYDRAULIC SYSTEMS
6
10
9
10
4
8
5
7
1
6
2
3
11
7
1

Артикул

Название

Примечание

Количество

1

47416034

HYDRAULIC CYLINDER,Double Acting, 44.5mm Rod, 886.5mm Stroke

RH Lift, 69.9 x 44.5, Incl 1 - 11

1шт.

1

47416034R

RH Lift, 69.9 x 44.5

REMAN-HYD CYLINDER

1шт.

1

47416034C

Return Number

CORE-HYD CYLINDER

1шт.

2

47416066

ROD

Rod, Incl in 1

1шт.

3

280724

LOCK NUT,3/4" - 16

Incl in 1

1шт.

4

86977989

LUBE NIPPLE,90 Degree, 1/8" - 27 NPT, Leakproof

Incl in 1

1шт.

5

87414

LUBE NIPPLE,1/4" - 28

Incl in 1

1шт.

6

86625120

PLUG,Sltd Hd, 3/4"-16, Yellow, Plastic

Incl 9

2шт.

7

NSS

NOT SOLD SEPARAT

Incl in 6

2шт.

8

9625178

PLUG,9/16" - 18 ORB

Incl 9

1шт.

9

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Incl in 6 and 8

1шт.

10

84298801

BUSHING,38.35mm ID x 47.62 OD x 22.8mm L

Incl in 1

4шт.

11

47416073

KIT

Cyl Seal, Incl in 1

1шт.

Выбрано товаров: 13
