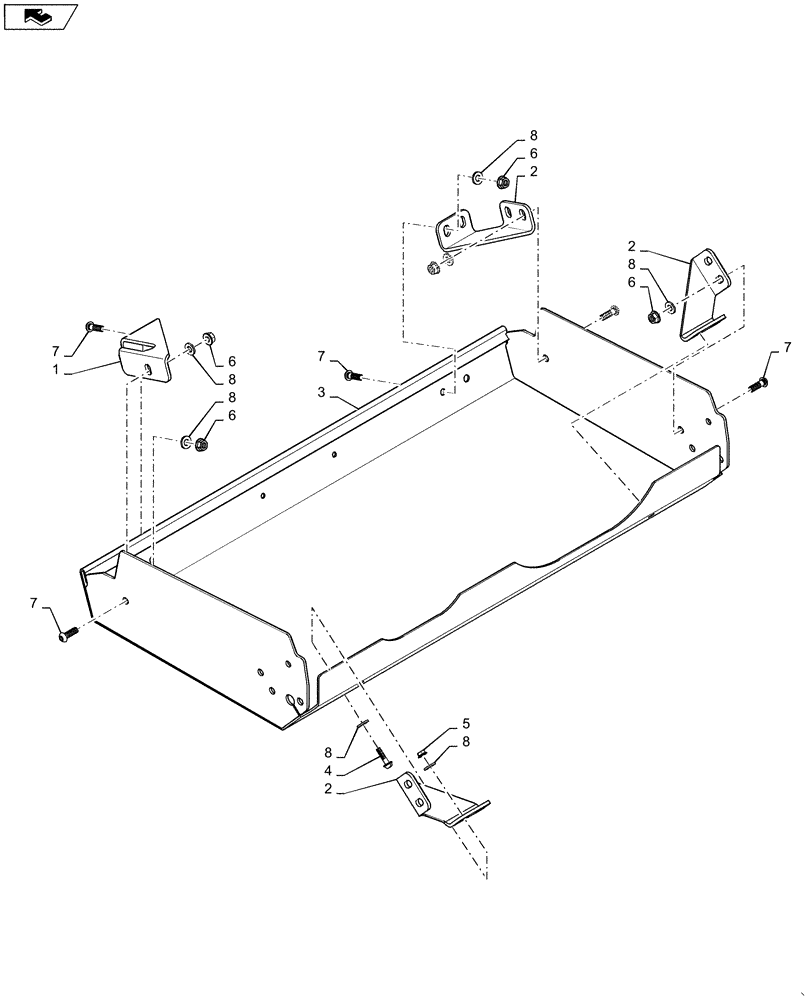

Запчасти Case IH SV300 (90.100.BI[06]) - REAR HOOD ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47433444

LH Gusset

PLATE

1шт.

2

47433446

RH Gusset

PLATE

3шт.

3

47434328

Tilt

HOOD

1шт.

4

84305556

SCREW,Round HD, M6 x 1 x 25mm, Cl 10.9

Torx, M6 x 25mm, Class 10.9, ZND

4шт.

5

86619800

FLANGE NUT,M6 x 1, Cl 8

4шт.

6

86619801

FLANGE NUT,M8 x 1.25, Cl 8

8шт.

7

87028323

HEX SOC SCREW,Btn Head, M8 x 1.25 x 25mm, Cl 8.8

8шт.

8

87655042

M8, 8.8mm x 17.5mm x 2.2mm, HTS, BORON, ZND

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

16шт.
