Запчасти Case IH SV300 (88.100.10[17]) - ENGINE ACCESSORIES EU/OPEN EU (SV250,SV300,TV380) (88) - ACCESSORIES

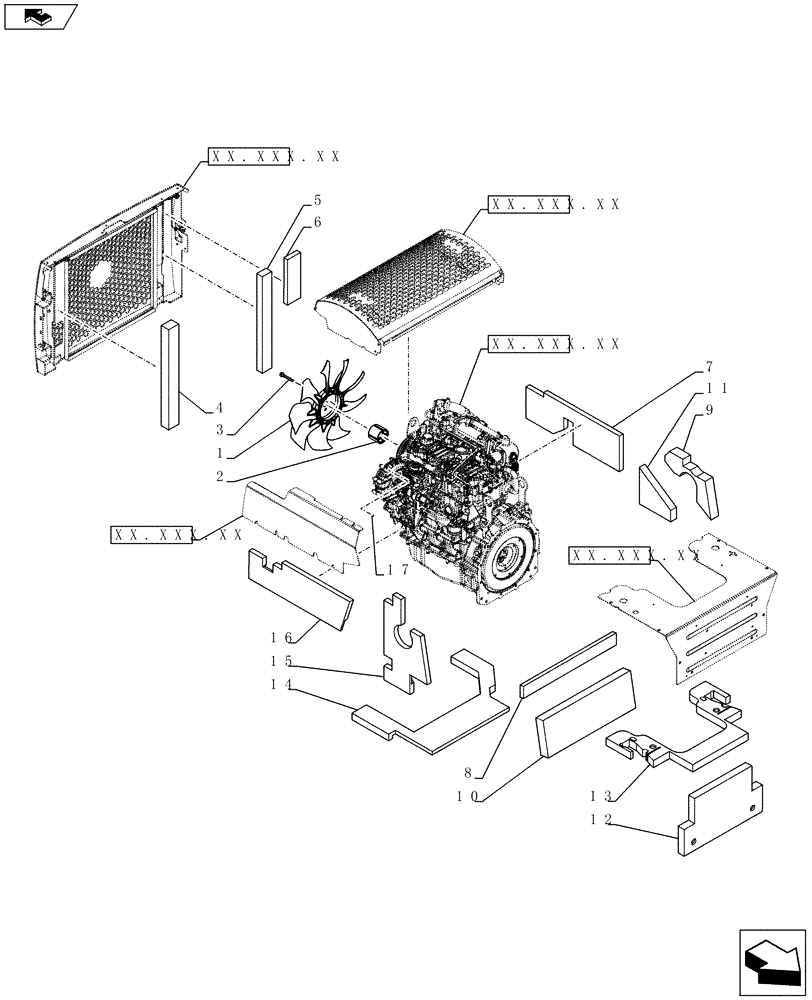

Схема запчастей Case IH SV300 - (88.100.10[17]) - ENGINE ACCESSORIES EU/OPEN EU (SV250,SV300,TV380) (88) - ACCESSORIES
6
2
4
15
home
17
xx.xxx.xx
3
1
5
14
xx.xxx.xx
xx.xxx.xx
12
16
8
xx.xxx.xx
11
9
xx.xxx.xx
7
10
13

Артикул

Название

Примечание

Количество

1

47488898

FAN,9 Blades, 480mm OD

Clockwise Pusher

1шт.

2

84373345

Fan 32/33MM

SPACER

1шт.

3

86507311

BOLT,Hex, M10 x 80mm, Cl 8.8

4шт.

4

84372988

FOAM INSULATION,584.4mm L x 67.5mm W x 50.8mm Thk

Fan RH

1шт.

5

84372981

FOAM INSULATION

Fan

1шт.

6

84372973

FOAM INSULATION,264.4mm L x 87.2mm W x 25.4mm Thk

Fan LH

1шт.

7

84372983

FOAM INSULATION

LH Tower

1шт.

8

84362125

Crossmember; Used Only with Open Cab

FOAM INSULATION

1шт.

9

84372978

RH Tower

FOAM INSULATION

1шт.

9

47886442

RH Tower, Replaces 9 & 11, Start Year: 14-JUL-15

INSULATION

1шт.

10

Pad, Right Tower OBSOLETE - Not Used

1шт.

11

84372979

RH Tower

FOAM INSULATION

1шт.

11

47886442

RH Tower, Replaces 9 & 11, Start Year: 14-JUL-15

INSULATION

1шт.

12

84366353

Heel Plate Horizontal

FOAM INSULATION

1шт.

13

84366352

Heel Plate Vertical

FOAM INSULATION

1шт.

14

84372980

Rear Hood

FOAM INSULATION

1шт.

15

84372977

RH Tower

FOAM INSULATION

1шт.

16

84372982

FOAM INSULATION

RH Tower

1шт.

17

87461957

STOP

Stop

1шт.

18

87595771

Pad (Not Shown)

ISOLATOR,200mm L x 50mm W x 3.2mm Thk

1шт.

19

84366326

FOAM INSULATION

Chassis RH (Not Shown)

1шт.

20

84366329

Chassis LH (Not Shown)

FOAM INSULATION,40.5mm W x 118.3mm OAL x 50mm Thick

1шт.

21

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Tie (Not Shown)

2шт.

22

84372040

FOAM

Seat Pan (Not Shown)

1шт.

Выбрано товаров: 24
