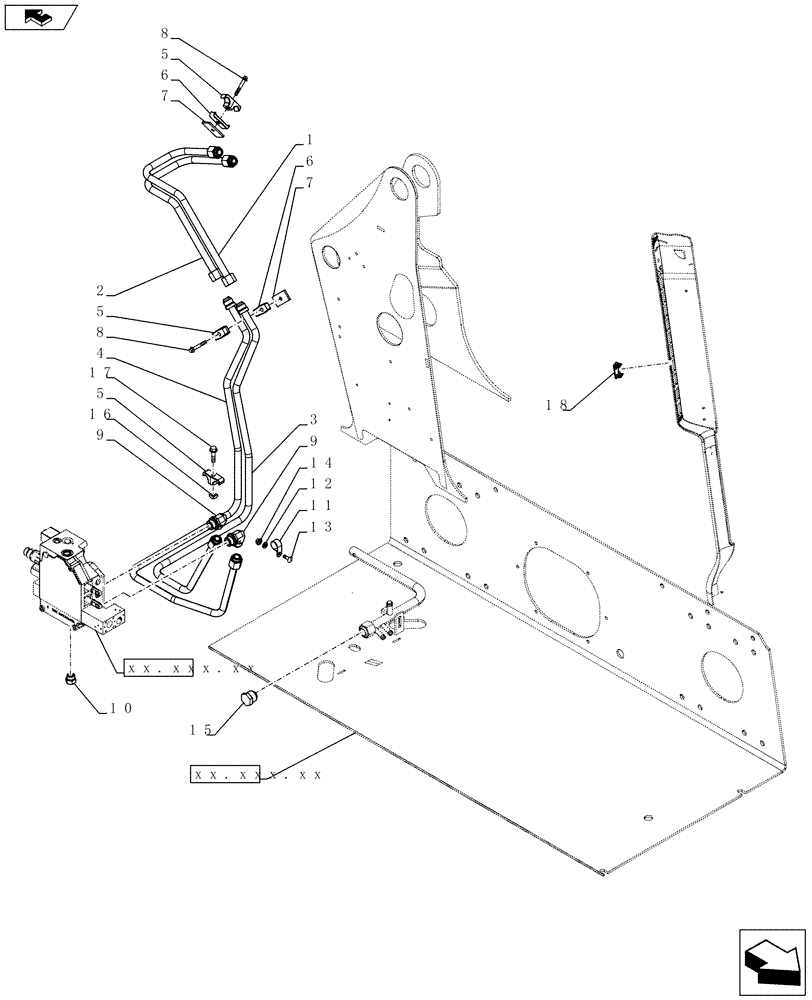

Запчасти Case IH SV300 (35.734.AH[03]) - AUX HYD, STD, CHASSIS PLUMBING (SV250,SV300,TV380) (35) - HYDRAULIC SYSTEMS

1

84377523

Assembly, Aux, LH Tower

TUBE

1шт.

2

84377525

Assembly, Aux, LH Tower

TUBE

1шт.

3

84377508

Assembly, Aux, LDR Valve to LFT Tower

TUBE

1шт.

4

84377510

Assembly, Aux, LDR Valve to LFT Tower

TUBE

1шт.

5

D124301

CLAMP,3/4" ID

3шт.

6

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

2шт.

7

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER Bar

2шт.

8

87582902

SELF-TAP SCREW,Hex, M8 x 1.25 x 55mm

HXFLNGHD, M8 X 55

2шт.

9

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

2шт.

10

86512512

PLUG,7/8" - 14 ORB

1шт.

11

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

12

87655042

M8, 8.80 X 17.5 X 2.2 HTS

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

13

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

1шт.

14

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

15

9790527

PLUG,1-5/16" - 12 JIC

1шт.

16

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

Square M10

1шт.

17

9804263

BOLT,M10 x 49.2mm, Cl 8.8

1шт.

18

126844A1

PLUG,1.427” x .62” , Plastic

Cover

1шт.
