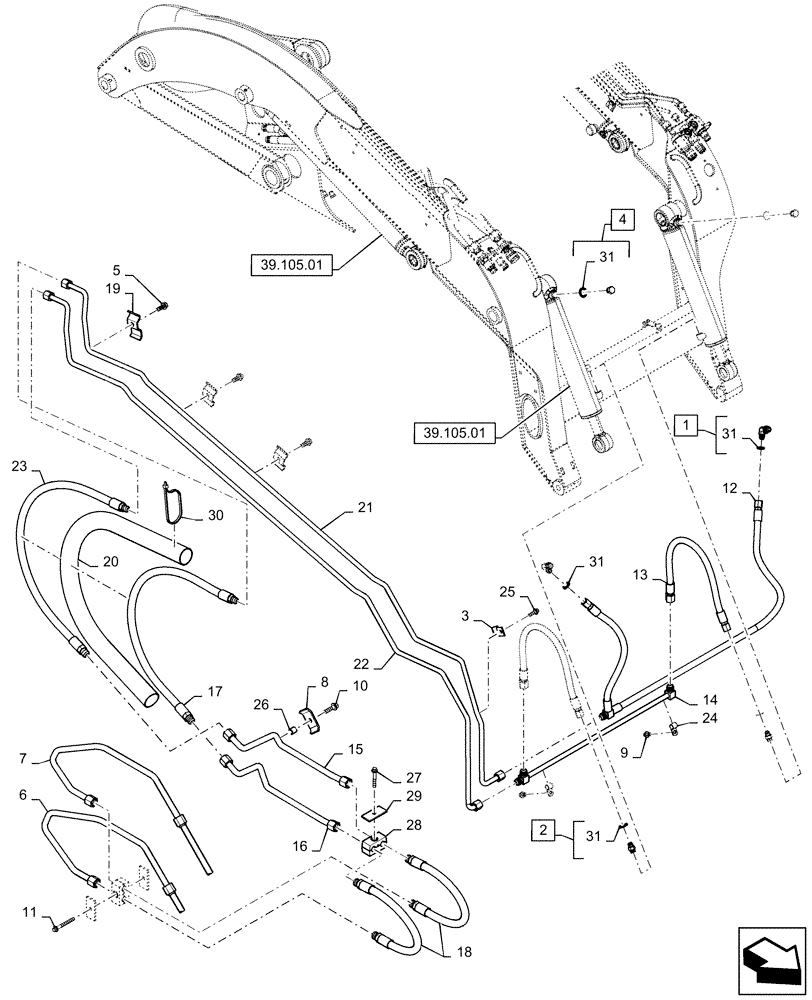

Запчасти Case IH SV300 (35.734.AH[02]) - BUCKET TIP LINES, HP HIGH FLOW 2ND, (SV300,TV380) AFTER JULY 31, 2013 (35) - HYDRAULIC SYSTEMS

1

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

Incl 31

2шт.

2

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

Incl 31

2шт.

3

184064

CLIP,12.7mm ID, 8.73mm Bolt Hole, J Type

2шт.

4

214389

PLUG,3/4" - 16 ORB

Incl 31

2шт.

5

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

3шт.

6

47505011

Tip, RH Tower

HYD TUBE

1шт.

7

47505013

Tip, RH Tower

HYD TUBE

1шт.

8

84254045

CLAMP,66mm L

1шт.

9

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

2шт.

10

84285342

SELF-TAP SCREW,Hex Flng Hd, M10 x 1.5 x 35mm

1шт.

11

84323488

SELF-TAP SCREW,Hex Flg, M8 x 70mm

1шт.

12

84346682

HOSE ASSY.,9.53mm ID x 1457mm L, SAE 100R17

1шт.

13

84346755

Tip Cyl Rod

HOSE ASSY.,9.53mm ID x 568mm L, SAE 100R16

2шт.

14

84346785

Tip Crossover

HYD TUBE

1шт.

15

84356471

Tip Cyl Lower Link

HYD TUBE

1шт.

16

84356473

Tip Cyl Lower Link

HYD TUBE

1шт.

17

84356590

Tip Cyl Upper

HYDRAULIC HOSE,12.7mm ID x 981mm L, SAE 100R16

1шт.

18

84356593

Tip Cyl Lower

HYDRAULIC HOSE,12.7mm ID x 561mm L, SAE 100R16

2шт.

19

84356597

Butterfly Tube

CLAMP

3шт.

20

84362109

HOSE PROTECTION,46mm ID x 50mm OD x 1070mm L

Hose

1шт.

21

84533283

Tip Cyl Arm

HYD TUBE

1шт.

22

84533285

Tip Cyl Arm

HYD TUBE

1шт.

23

84533287

Tip Cyl Upper

HYDRAULIC HOSE,12.7mm ID x 921mm L, SAE 100R16

1шт.

24

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

25

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

2шт.

26

87340800

SPACER,5/8" Tube x 15.88mm

1шт.

27

87582902

SELF-TAP SCREW,Hex, M8 x 1.25 x 55mm

1шт.

28

1546026C1

CLAMP

2шт.

29

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

Clamp Top

3шт.

30

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

31

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

6шт.
