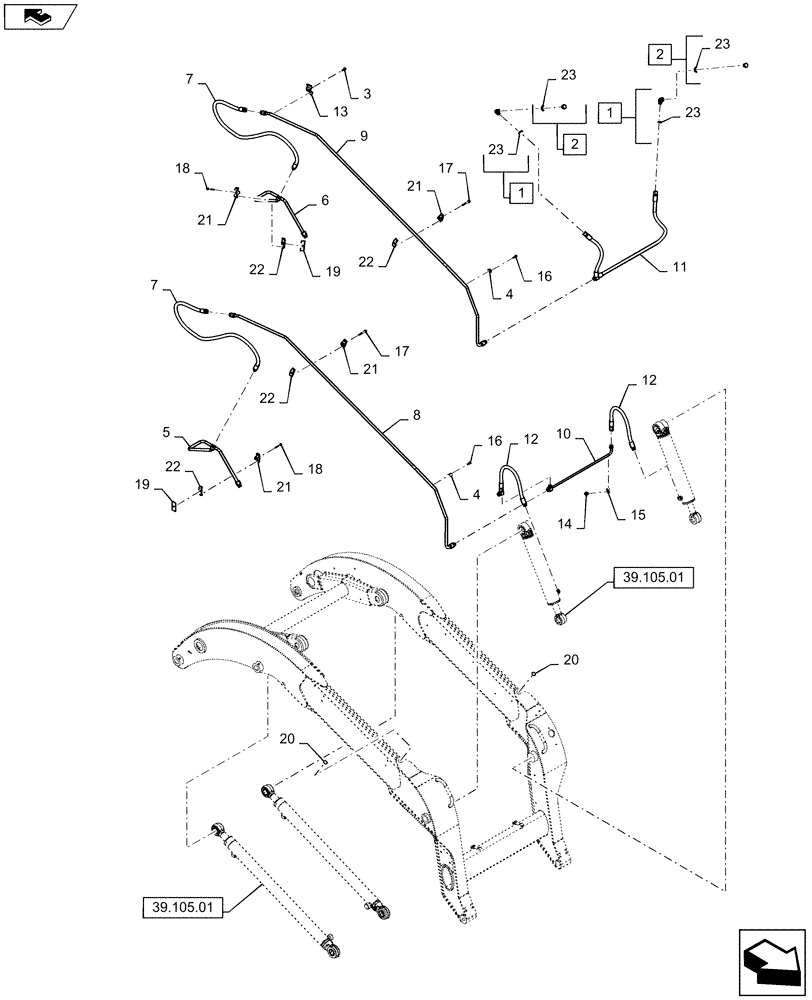

Запчасти Case IH SV300 (35.734.AH[02]) - BUCKET TIP LINES, (SV250, SV300, TV380) AFTER JULY 31, 2013 (35) - HYDRAULIC SYSTEMS

1

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 23

2шт.

2

214389

PLUG,3/4" - 16 ORB

Incl 23

2шт.

3

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

1шт.

4

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

5

47499378

Tip, RH Tower

TUBE

1шт.

6

47499380

Tip, RH Tower

TUBE

1шт.

7

47500154

HOSE,12.5mm ID x 1512mm L, SAE 100R17

Tip Cyl

2шт.

8

47503879

Tip Cyl

TUBE

1шт.

9

47503880

HYD TUBE

Tip Cyl

1шт.

10

47504622

Tip Crossover

TUBE

1шт.

11

47505800

HOSE,12.5mm ID, SAE 100R17

Tip Cyl Base

1шт.

12

47505812

HOSE,12.5mm ID x 593mm L, SAE 100R16

Tip Cyl

2шт.

13

84252828

CLAMP,65.2mm L

Butterfly Tube

1шт.

14

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

2шт.

15

86626036

HOOK

2шт.

16

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

2шт.

17

87025275

SCREW,Hex, 3/8" - 16 x 2-1/2"

2шт.

18

87582902

SELF-TAP SCREW,Hex, M8 x 1.25 x 55mm

2шт.

19

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

Bar Clamp Top

2шт.

20

414635A1

COVER,25.4mm OD x 0.51mm Thk

2шт.

21

D120613

CLAMP,20mm ID

4шт.

22

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

4шт.

23

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.
