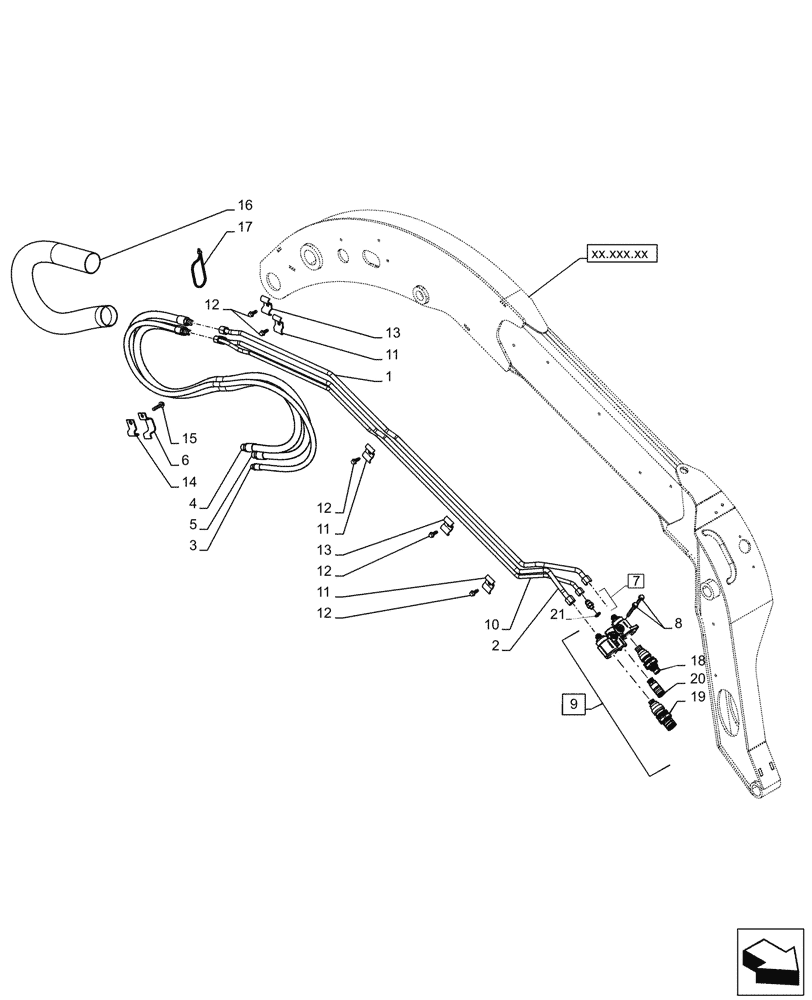

Запчасти Case IH SV300 (35.734.AH[02]) - AUX HYD, STD, CONNECT UNDER PRESSURE, ARM PLUMBING (SV250,SV300,TV380) (35) - HYDRAULIC SYSTEMS

1

84304105

RIGID TUBE

Assembly, Aux, C.U.P.

1шт.

2

84304103

RIGID TUBE

Assembly, Aux, C.U.P.

1шт.

3

84281611

FLEXIBLE HOSE,10mm ID x 2085mm L, SAE 100R17

Assembly, Case Drain

1шт.

4

84304100

FLEXIBLE HOSE,15.88mm ID x 1935mm L, SAE 100R17

Assembly, Aux

1шт.

5

84304099

FLEXIBLE HOSE,15.88mm ID x 1905mm L, SAE 100R17

Assembly, Aux

1шт.

6

84285091

HOSE CLAMP

-10 Hose Double

1шт.

7

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

1шт.

8

84331287

SCREW,HWH, 3/8" - 16 x 3"

Tapping, 3/8-16 X 3 TT

2шт.

9

84173613

Quick Attach, Includes Ref. 18-20, Years: -01-FEB-13

VALVE

1шт.

See Ref 18,19,20 For Coupling

1шт.

9

47396759

VALVE

Quick Attach, Includes Ref. 18-20, Start Year: 01-FEB-13

1шт.

See Ref 18,19,20 For Coupling

1шт.

10

84297619

RIGID TUBE

Assembly, Case Drain

1шт.

11

84254056

HOSE CLAMP,69.2mm L

Butterfly Tube

3шт.

12

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

5шт.

13

84252828

CLAMP,65.2mm L

Butterfly Tube

2шт.

14

84299413

W -6 Hose Single

HOSE CLAMP

1шт.

15

9804263

BOLT,M10 x 49.2mm, Cl 8.8

1шт.

16

84362110

SLEEVE,73mm ID x 78mm OD x 1070mm L

Hose

1шт.

17

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Nylon Tie 15.5in

1шт.

18

84390117

1/2" Male (Not Shown), Years: -01-FEB-13

COUPLING

1шт.

18

47396760

COUPLING,1/2" Male

1/2" Male, Not Illustrated, Start Year: 01-FEB-13

1шт.

19

84390118

1/2" Female (Not Shown), Years: -01-FEB-13

COUPLING

1шт.

19

47396761

COUPLING,1/2" Female

1/2" Female, Not Illustrated, Start Year: 01-FEB-13

1шт.

20

84390119

3/8" Female (Not Shown), Years: -01-FEB-13

COUPLING

1шт.

20

47396762

COUPLING,3/8" Female

3/8" Female, Not Illustrated, Start Year: 01-FEB-13

1шт.

21

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
