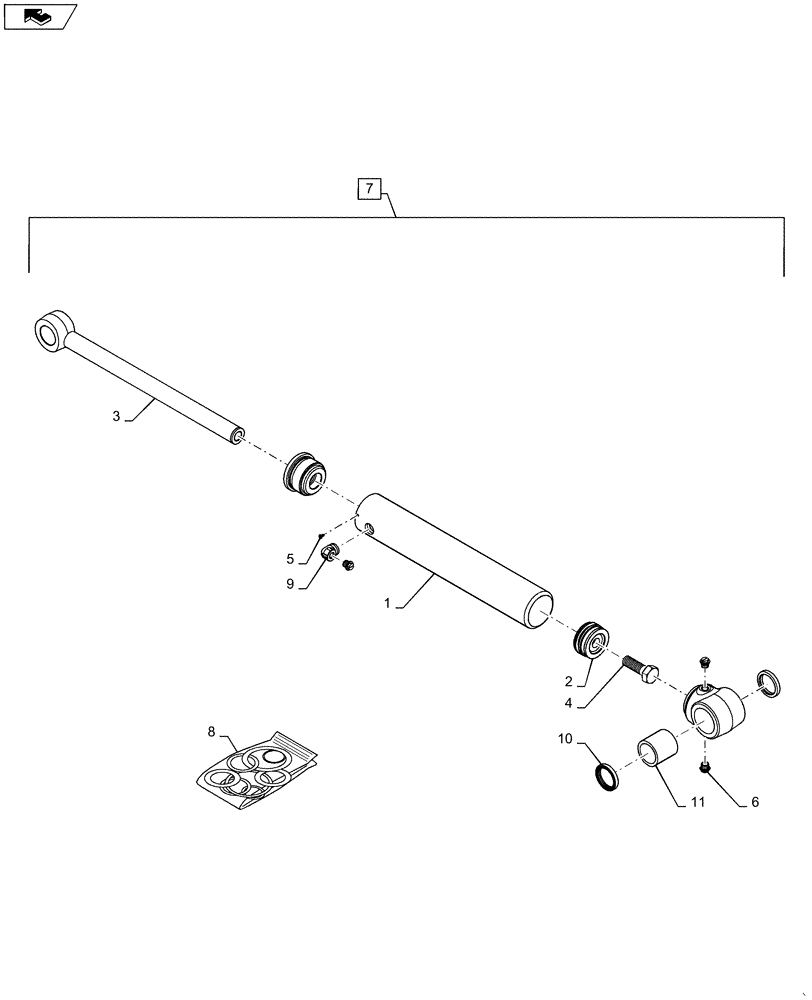

Запчасти Case IH SV300 (35.723.AA[03]) - BUCKET CYLINDER, 27-APR-2012 AND AFTER (SR220-SV300,TR320,TV380) (35) - HYDRAULIC SYSTEMS

7

47364444

HYDRAULIC CYLINDER,38.1mm Rod, 410mm Stroke

Assembly, Bucket, Gray, Incl 1 - 6

1шт.

7

47364444R

LIFT CYLINDER

1шт.

7

47364444C

LIFT CYLINDER

Return Number

1шт.

1

84293475

Hydraulic, W

TUBE

1шт.

2

NSS

NOT SOLD SEPARAT

Package, Piston-Gland, Incl 7

1шт.

3

84293530

Rod, W

PISTON ROD

1шт.

4

86982436

SPECIAL BOLT,SEMS Hex, 7/8" - 14 x 2 - 1/2"

SEMS/A, 7/8 X 2.5

1шт.

5

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

Locking

1шт.

6

86625122

PLUG,HWH, 9/16" - 18 x 0.69" Incl NSS O-Ring

3шт.

8

47364492

SEAL KIT

Cylinder Repair Kit

1шт.

9

84268828

Fitting

90 ELBOW

1шт.

10

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

Wiper

2шт.

11

84254659

Composite, 2.25 OD X 1.75 ID X 2.2

BUSHING,44.63mm ID x 57.28mm OD x 57mm L

1шт.

12

9845313

BUSHING,38.15mm ID x 42.82mm OD x 22.2mm L

Rod Eye (Not Shown)

2шт.
