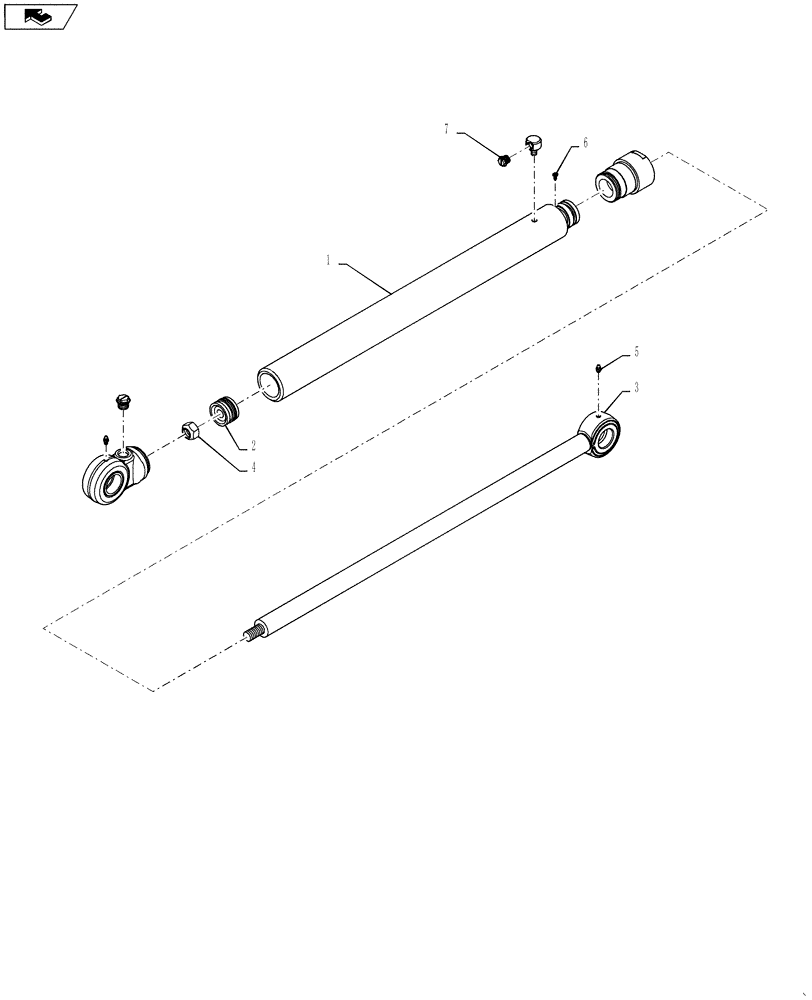

Запчасти Case IH SV300 (35.701.CB[01]) - HYDRAULIC LIFT CYLINDER, RH, - JAN 18, 2012 (SV300) (35) - HYDRAULIC SYSTEMS

84358575

Hydraulic, RH Lift, Incl. 1-7

CYLINDER

1шт.

1

NSS

NOT SOLD SEPARAT

Tube, W, RH

1шт.

2

NSS

NOT SOLD SEPARAT

Package, Piston-Gland

1шт.

3

84372035

W

PISTON ROD

1шт.

4

280724

LOCK NUT,3/4" - 16

1шт.

5

86977989

LUBE NIPPLE,90 Degree, 1/8" - 27 NPT, Leakproof

1шт.

6

87414

LUBE NIPPLE,1/4" - 28

1шт.

7

86625120

PLUG,Sltd Hd, 3/4"-16, Yellow, Plastic

3/4-16

2шт.

8

84480921

(Not Shown) Cylinder Repair Kit

KIT

1шт.
