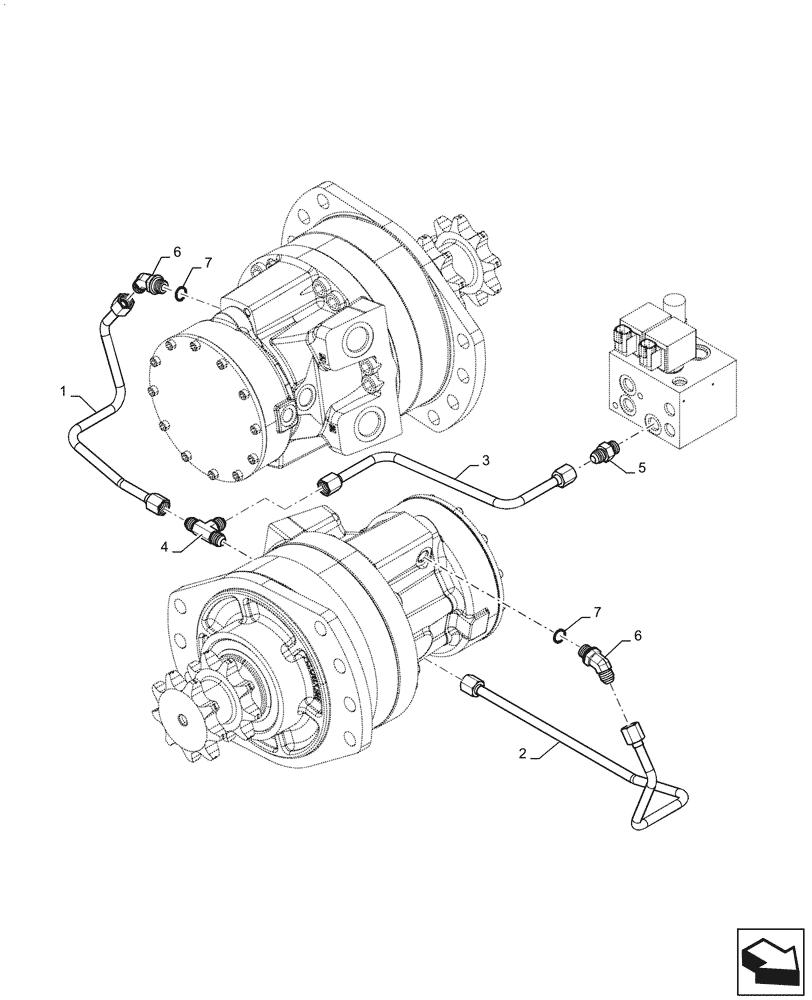

Запчасти Case IH SV300 (35.353.AE[01]) - 2SPD PLUMBING (SR220,SR250,SV250,SV300) (35) - HYDRAULIC SYSTEMS

1

84258811

Assy, Two Speed, Years: -30-JUN-15

RIGID TUBE

1шт.

1

47887494

Assy, Two Speed, Start Year: 01-JUL-15

TUBE

1шт.

2

84259631

Assy, Two Speed, Years: -30-JUN-15

RIGID TUBE

1шт.

2

47888271

Assy, Two Speed, Start Year: 01-JUL-15

TUBE

1шт.

3

84258810

Assy, Two Speed Common, Years: -30-JUN-15

RIGID TUBE

1шт.

3

47979677

Assy, Two Speed , Start Year: 01-JUL-15

HYD TUBE

1шт.

4

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

5

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

6

330346

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

Incl 7

2шт.

7

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.
