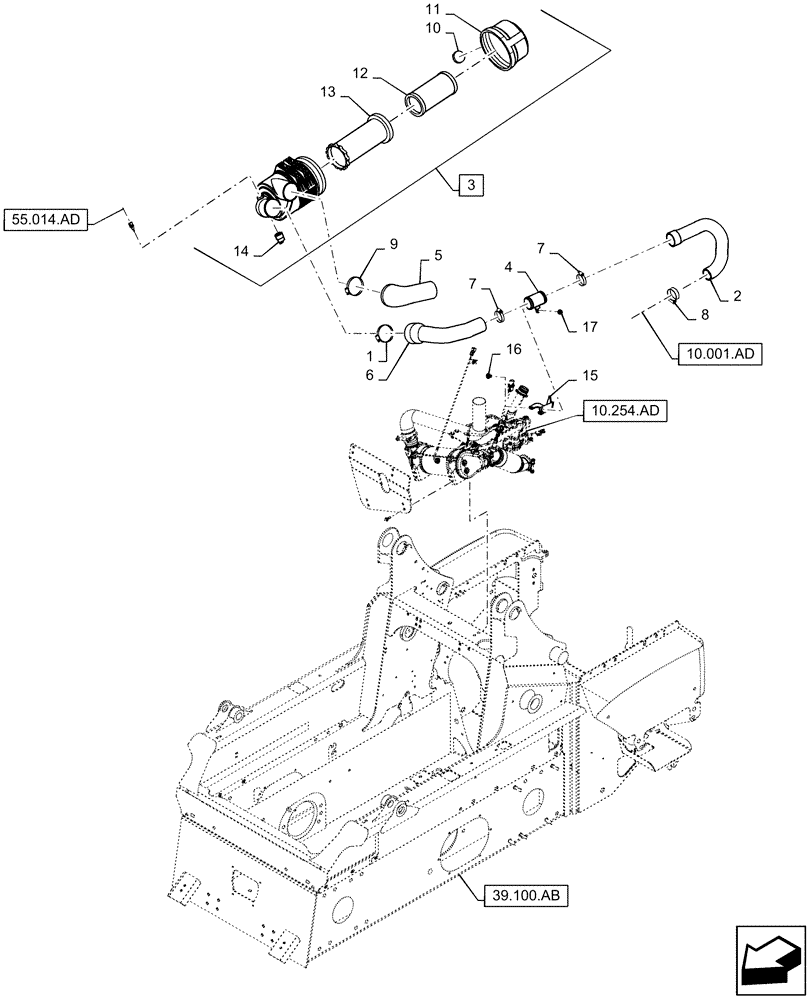

Запчасти Case IH SV280 (10.202.AB) - AIR CLEANER & INTAKE PARTS (10) - ENGINE

1

381144

HOSE CLAMP,84.1mm - 107.9mm, Worm Gear

1шт.

2

47823397

INTAKE AIR HOSE

Coupler to Turbo

1шт.

3

47687166

AIR CLEANER

Assy, Incl 10 - 14

1шт.

4

47711885

FITTING

Coupler, Intake Hose & CCV

1шт.

5

84531287

HOSE

Inlet Extension

1шт.

6

84551136

HOSE

Air Cleaner to Coupler

1шт.

7

86050197

HOSE CLAMP,58.6mm - 82.5mm, Worm Gear

2шт.

8

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

1шт.

9

86625034

HOSE CLAMP,90.4mm - 114.3mm, Worm Gear

1шт.

10

A184597

VALVE POPPET,1.93" ID x 2.24" OD x 1.84" L

Vacuator

1шт.

11

395792A1

COVER ASSY

Air Cleaner

1шт.

12

84217229

AIR FILTER,91mm ID x 164.5mm OD x 347mm L

Primary

1шт.

13

87682999

AIR FILTER,74.1mm ID x 94.6mm OD x 339.5mm L

Secondary

1шт.

14

279492A1

RESTRICTION SWITCH

Air Filter

1шт.

15

47370315

BRACKET

Coupler

1шт.

16

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

1шт.

17

9804278

FLANGE NUT,M10 x 1.5, Cl 8

1шт.
