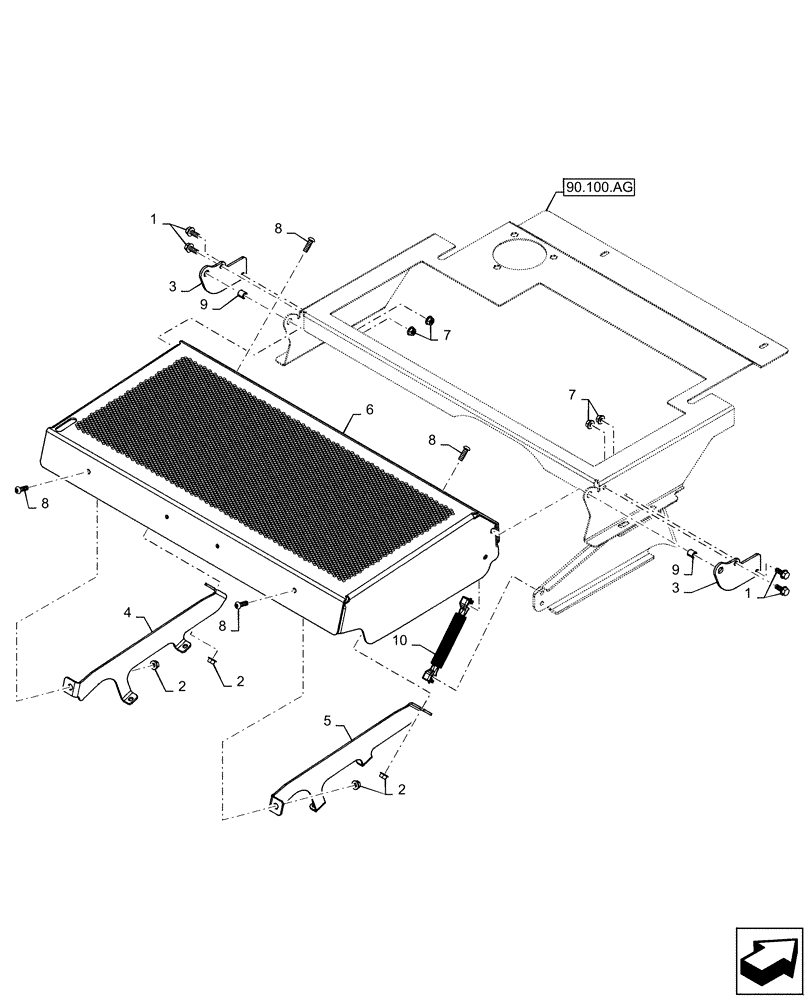

Запчасти Case IH SV280 (90.100.AU[01]) - HOOD & STRUT, AIR CONDITIONED (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

2

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

3

47428367

PLATE

Doubler

2шт.

4

47521067

REINFORCEMENT

LH, Tilt Hood

1шт.

5

47521161

REINFORCEMENT

RH, Tilt Hood

1шт.

6

47574582

SCREEN

Hood, Tilt

1шт.

7

86619801

FLANGE NUT,M8 x 1.25, Cl 8

4шт.

8

87028323

HEX SOC SCREW,Btn Head, M8 x 1.25 x 25mm, Cl 8.8

4шт.

9

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

2шт.

10

400472A1

SPRING,10mm Rod, 38.1mm Stroke

Hood Assist

1шт.
