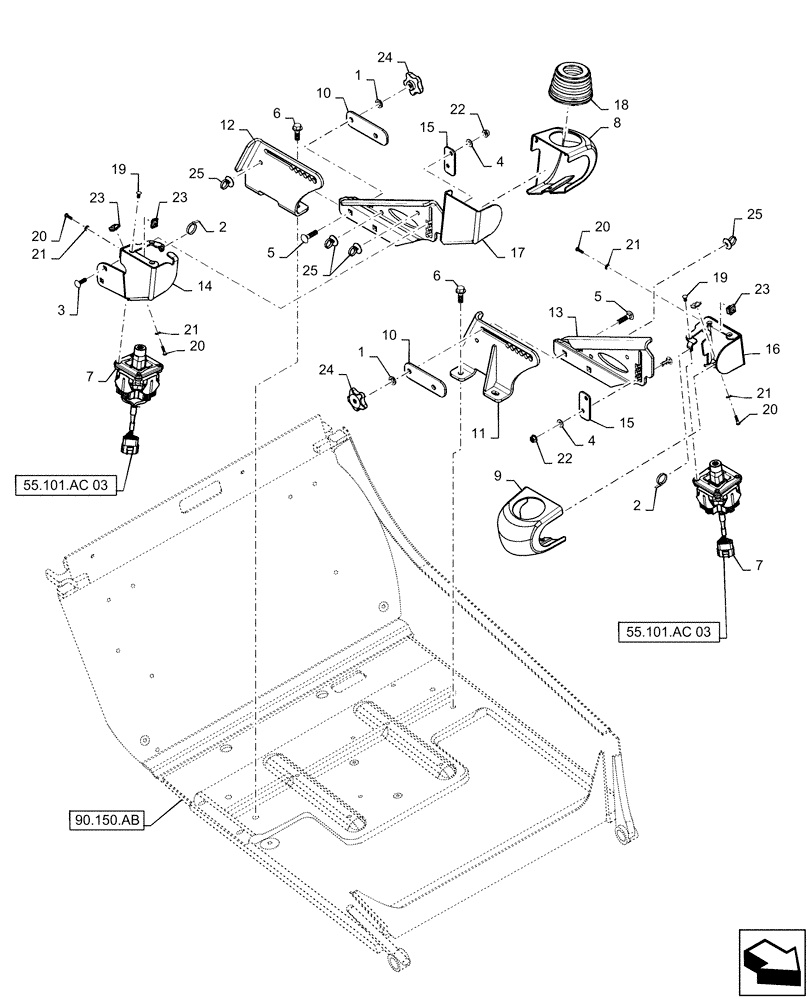

Запчасти Case IH SV280 (55.512.CL[03]) - HANDLE, ELECTRONIC CONTROLS (55) - ELECTRICAL SYSTEMS

1

81547

LOCK WASHER,7/16"

4шт.

2

87668737

CABLE TIE,203.2mm L, Nylon, Black

Nylon

2шт.

3

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

4шт.

4

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

5

9706752

CARRIAGE BOLT,3/8" - 16 x 1-1/2", Gr 5

4шт.

6

9804262

BOLT,M10 x 39.2mm, Cl 8.8

4шт.

7

47548974

Base, E-H Controls

JOYSTICK

2шт.

8

84201490

LH, E-H Controls

COVER

1шт.

9

84201491

RH, E-H Controls

COVER

1шт.

10

84368561

PLATE

130mm L, Mounting

2шт.

11

84368998

BASE PLATE

LH, E-H Controls

1шт.

12

84369519

BRACKET, SUPPORTING

RH, Base, E-H Controls

1шт.

13

84410989

BRACKET

LH

1шт.

14

84410986

RH, Upper, E-H Controls

BRACKET

1шт.

15

84410988

SPACER,32mm W x 70mm L x 3.68mm Thk

70mm L, Mounting

2шт.

16

84410984

LH, Upper, E-H Controls

BRACKET

1шт.

17

84410990

BRACKET

RH

1шт.

18

84412489

BOOT

E-H Controls

2шт.

19

86511855

SCREW,Flat, M6 x 1.0 x 12mm OAL, Cl 4.8

6шт.

20

86511922

SCREW,Pan, #10 - 24 x 3/4"

4шт.

21

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

22

86619801

FLANGE NUT,M8 x 1.25, Cl 8

4шт.

23

86625077

SPRING NUT,J, Ret, #10-24

4шт.

24

87639912

KNOB

Star, 3/8"

4шт.

25

378884A2

STRAP,254mm L

6шт.
