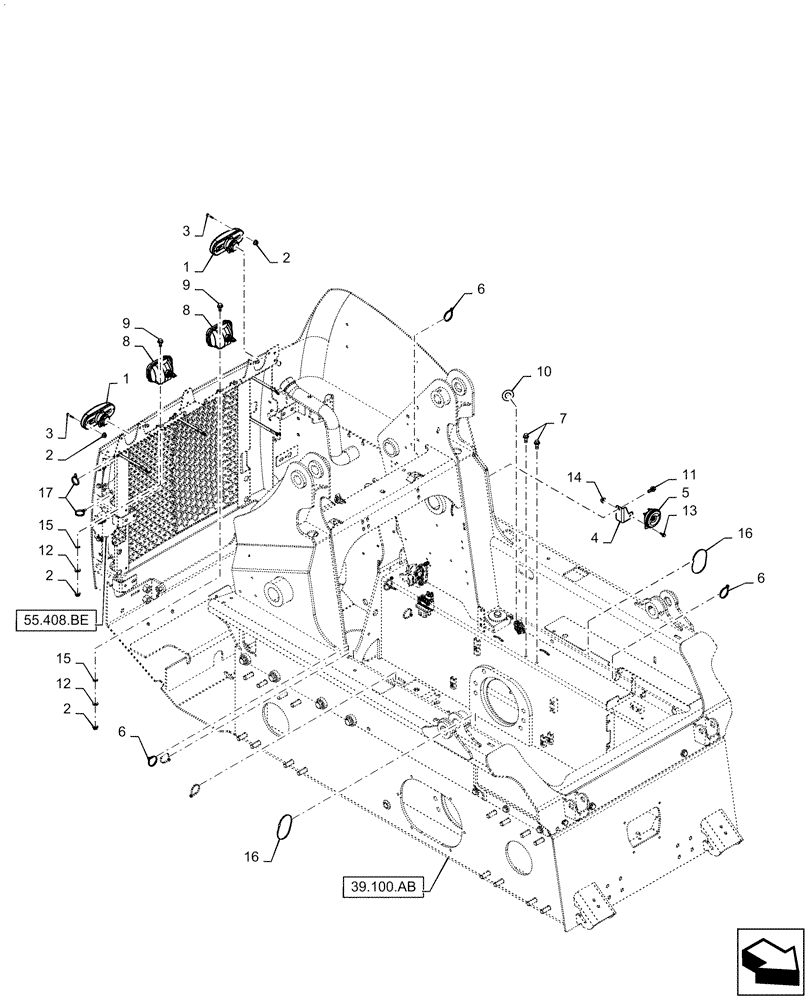

Запчасти Case IH SV280 (55.408.AG) - HORN & BEACON RELATED PARTS (55) - ELECTRICAL SYSTEMS

1

87627854

LIGHT ASSY.,12V, 27W, Red

Tail/Stop

2шт.

2

86512495

FLANGE NUT,Hex, M5, Cl 8

8шт.

3

86502967

SCREW,Phillips Drive, Pan HD, M5 x 30mm, Cl 4.8

4шт.

4

84545953

BRACKET, SUPPORTING

Horn

1шт.

5

87714969

HORN

W/ Breather

1шт.

6

L11541

CABLE TIE,203.2mm L, Nylon

, Years: -13-NOV-16

16шт.

7

87550233

SELF-TAP SCREW,Hex Flg, M10 x 1.5 x 25mm

, Years: -13-NOV-16

1шт.

8

84306337

WORK LAMP,12V, 37.5W, Clear

2шт.

9

86511838

BOLT,Hvy Hex, M5 x 12mm, Cl 8.8, Full Thd

4шт.

10

84412290

DECAL

Light Switch

1шт.

11

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

1шт.

12

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

13

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

1шт.

14

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

15

86625264

LOCK WASHER,Ext Tooth, M5

4шт.

16

263117

CABLE TIE,292.1mm L, Nylon, Black

Nylon, Years: -13-NOV-16

2шт.

17

87668737

CABLE TIE,203.2mm L, Nylon, Black

Nylon

1шт.
