Запчасти Case IH SV280 (35.701.AX[01]) - LOADER VALVE LINES (35) - HYDRAULIC SYSTEMS

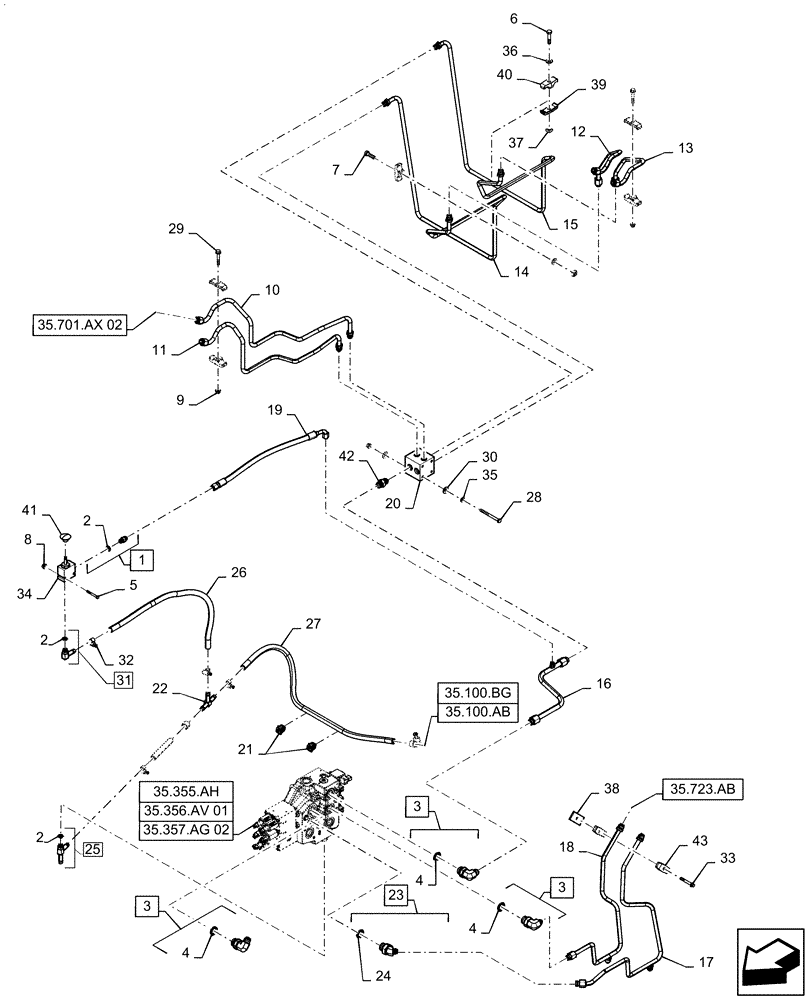

Схема запчастей Case IH SV280 - (35.701.AX[01]) - LOADER VALVE LINES (35) - HYDRAULIC SYSTEMS
35.701.ax 02
3
26
4
15
10
1
2
18
5
39
3
22
9
17
16
8
11
4
41
23
42
30
4
27
19
24
35
13
34
33
3
21
20
14
36
2
31
25
28
12
32
2
40
37
7
29
6
38
43
35.357.ag 02
35.356.av 01
35.355.ah
35.100.ab
35.100.bg
35.723.ab

Артикул

Название

Примечание

Количество

1

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 2

1шт.

2

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

3

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 4

3шт.

4

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3шт.

5

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

6

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

7

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

8

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

9

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

10

84178521

12.7mm OD, Lower, Manifold to RH Arm

TUBE

1шт.

11

84178523

12.7mm OD, Lift, Manifold to RH Arm

TUBE

1шт.

12

84377541

TUBE

12.7mm OD, Lift, LH Fender

1шт.

13

84377543

TUBE

12.7mm OD, Lower, LH Fender

1шт.

14

84377535

TUBE

12.7mm OD, Lift, Manifold to LH Arm

1шт.

15

84377537

TUBE

12.7mm OD, Lower, Manifold to LH Arm

1шт.

16

84378484

15.9mm OD, Lift, Valve to Manifold

RIGID TUBE

1шт.

17

47503044

15.9mm OD x 1215.9mm L, Tip, Loader Valve to RH Arm

TUBE

1шт.

18

47503041

15.9mm OD x 973.8mm L, Tip, Loader Valve to RH Arm

TUBE

1шт.

19

84201224

Override

HYDRAULIC HOSE,9.53mm ID x 535mm L, SAE 100R16

1шт.

20

84258823

HYDRAULIC MANIFOLD

Block

1шт.

21

84259663

CABLE TIE,228.6mm L, Nylon, Black

Polyamide 6.6

2шт.

22

84259682

UNION TEE,12.5mm ID 125mm Hose, W/ 1/2" Barb Tee

1шт.

23

100197

ELBOW,45 Degree, 7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 24

1шт.

24

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

25

84299732

Incl 2

FITTING,Hose, 1/2" x 1/2" Barb x 9/16 - 18" ORB

1шт.

26

84299733

Override to EH Aux Drain

HOSE,12.7mm ID x 660mm L

1шт.

27

84299735

EH Aux Drain to Main Drain

HOSE,12.7mm ID x 915mm L

1шт.

28

86508571

BOLT,Hex, M8 x 90mm, Cl 8.8

2шт.

29

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

30

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

31

86705580

FITTING,90 Degree, 1/2" Hose Bead x 9/16" - 18 ORB

Incl 2

1шт.

32

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

5шт.

33

87582902

SELF-TAP SCREW,Hex, M8 x 1.25 x 55mm

1шт.

34

84294239

Boom Override

VALVE

1шт.

35

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

36

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

37

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

2шт.

38

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

1шт.

39

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

Tube

4шт.

40

D120679

CLAMP,Tube, 1/2"

4шт.

41

87522292

KNOB

38.4mm OD, Override Valve

1шт.

42

84373458

4.75mm Directional

ORIFICE

1шт.

43

D120613

CLAMP,20mm ID

1шт.

Выбрано товаров: 43
